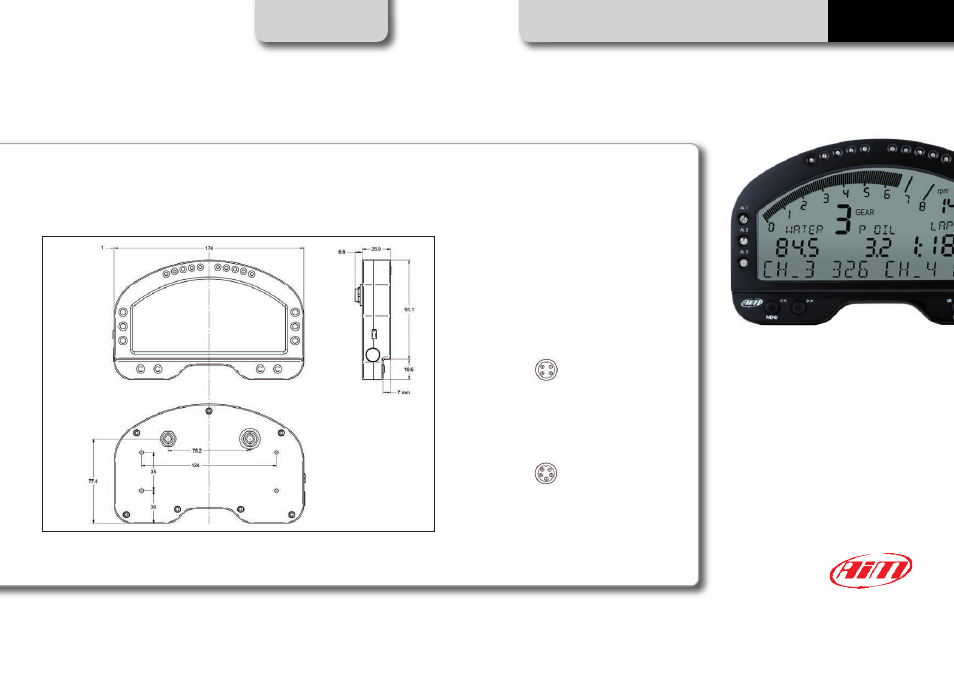

CHAPTER 4 MXL DASH DATA SHEET
Our web site aim-sportline.com is constantly
updated.
We try to share with you our experiences
about our products and how to use them
in the tracks all over the world.
Please, constantly check it and download
the last versions of the firmware of your
products.
n Aluminum body
n Grey back light
n 6 alarm LEDs
n 10 configurable gear flashes
n Dimensions: 179 x 91 x 26 mm
n Weight: 500g
18 19
MXL Dash
MXL DASH
n 4 Pins female connector
(external view)
1 CAN +
2 GND
3 + VB
4 CAN -
5 NC
1 VIEW
2 GND
3 >>
4 MENU/<<
n 5 Pins female connector
(external view)
