Tablet PCs ITC1013
54
© ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen
7.10
W
ALL
B
RACKET

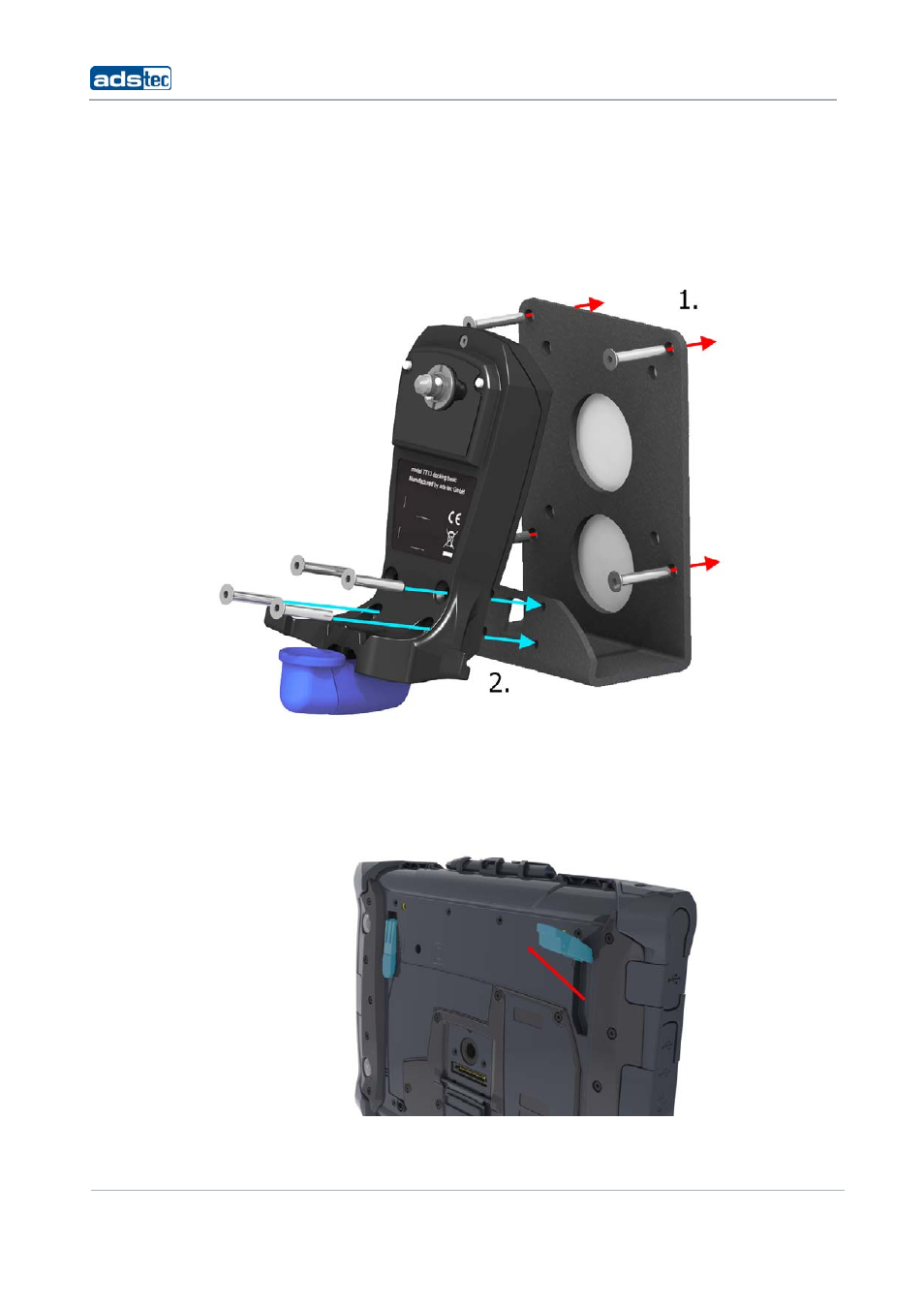

The available TT13 Docking offers in combination with the Wall bracket a stable mounting
solution for every kind of location.
1) The Wall Bracket needs to be mounted via VESA 75 or 100 to the installation site.
2) The Docking needs to be mounted via the supplied M5x30-8.8 SW Inbus screws to the
Wall Bracket.
7.11
ITC1013
S
UBSTITUTION
P
ACK OF
T
OUCH
S
TYLUS
The optional Stand for ITC1013 allows for easy operation anywhere.
