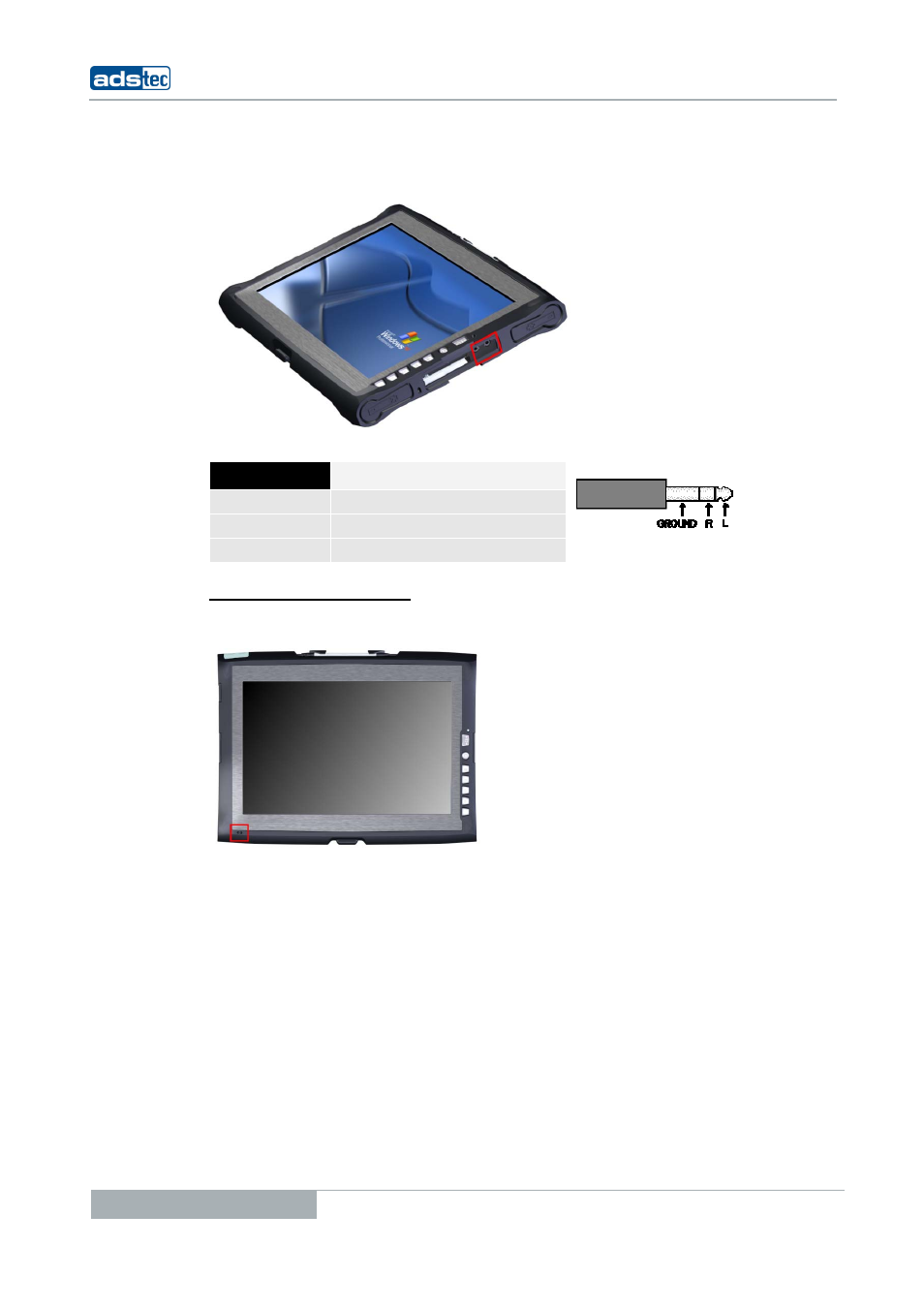

5.6 MIC IN
An external microphone can be connected via the MIC IN socket on the device by means
of a 3.5mm cinch cable.
M
ICROPHONE IN FRONT PANEL
Additionally, the device has an internal microphone in the front panel. This microphone can
be configured by using the volume control integrated in the operating system.
PIN NUMBER SIGNAL NAME
Ground GND
R Signal, right-hand side
L Signal, left-hand side
