A variety of mounting conditions can be accommodated.
• The machine configuration determines the brackets and
encoder style required for installation.
• Typical mounting conditions are shown; flush with reading
head bracket, and ENC 125 E encoder with backup spar.
• The 8-32 SHCS for mounting the reading head is a
standard low head style fastener.
• Flush mounting surfaces, reading head bracket required.
• Bracket used to reduce head to mounting surface offset.
• Use reading head leveling screws for alignment.
• Offset mounting surfaces with a backup spar.
• Bracket used to reduce head to mounting surface gap.
• Use reading head leveling set screws for alignment.
Acu-Rite Companies Inc.
8

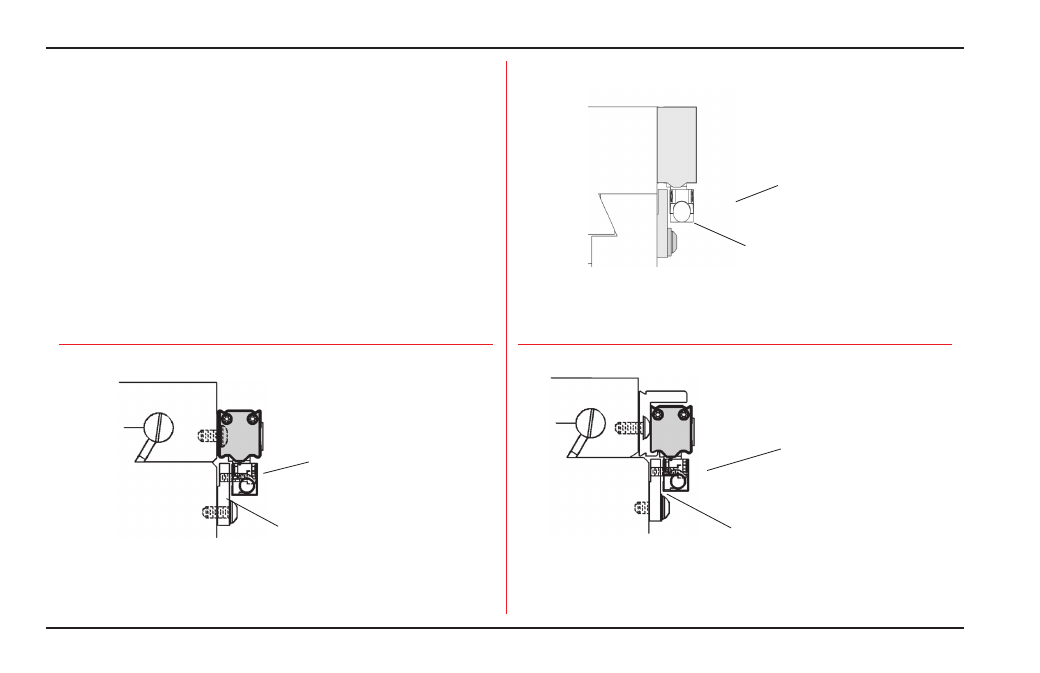

Typical Mounting (s) ENC 125 T/E
Backup spar & bracket Flush mounting surfaces ENC 125 E
Reading head bracket required
8-32 x 5/8” SHCS
(trim if necessary)
8-32 x 5/8” SHCS
(trim if necessary)
Mounting
surfaces
flush
Reading head bracket required
• Flush mounting surfaces, reading head bracket required.
• Bracket used to reduce head to mounting surface offset.
• Use reading head leveling screws for alignment.
Flush mounting surfaces ENC 125 T
8-32 x 5/8” SHCS
(trim if necessary)
Mounting
surfaces
flush
Reading head bracket required
Mounting
surfaces
offset
