WHEELED TRIMMER
8
OPERATION
The Wheeled Trimmer can be adjusted to mow at an
angle. This allows the machine to trim in hard to reach
places. Parallel trimming is adjustable on this model to
the left 2". The trimmer body pivots on the axle. To adjust
the parallel trimming setting:
1. Loosen the right axle nut located on the bottom of the
trimmer directly behind the axle shaft (Figure 4.1).
2. Lift the right wheel and pull back. The wheel and axle
will rotate backwards due to a slot cut in the bottom of
the trimmer frame.
3. Tighten the nut loosened in Step 1.
4. When finished using the parallel trimming feature,
loosen the right axle nut, and push the axle forward to
the original position.
5. Tighten the right axle bolt and resume regular trimming
or mowing.

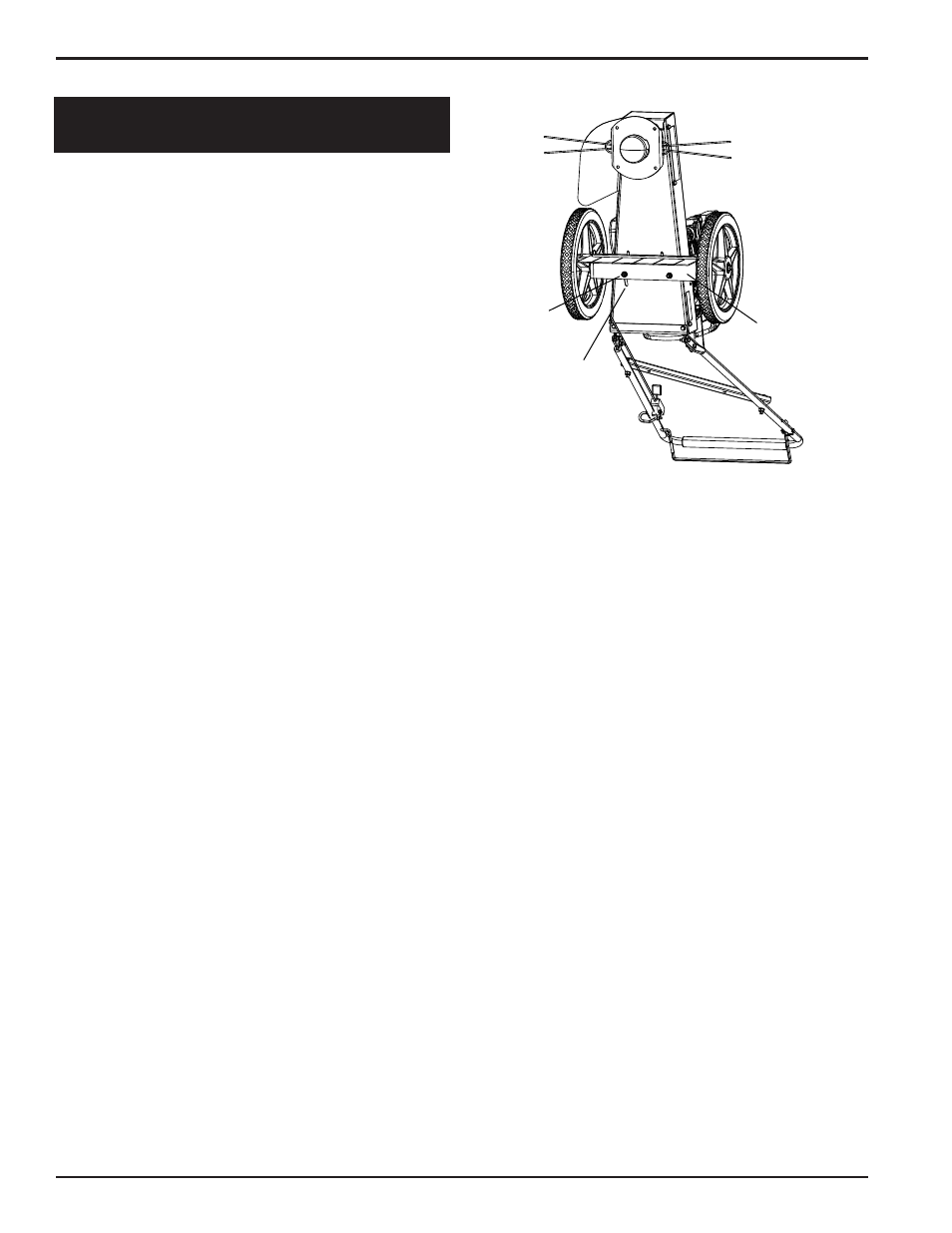

Figure 4.1 - Adjusting the Trimmer
RIGHT
AXLE NUT
SLOT
AXLE SHAFT
4.4 PARALLEL TRIMMING FOR PUSH
TRIMMERS
