WHEELED TRIMMER
6
Section
Refer to Figure 3.1 for feature locations.
ENGINE THROTTLE
Changes engine speed. Move throttle to the FAST position
for starting. Move throttle to the SLOW position to shut
engine off. The engine is intended to run at full RPM.
Operate engine with the throttle in the FAST position.
ENGINE CHOKE
The throttle lever opens and closes the choke valve in the
carburetor and enriches the fuel mixture for starting a cold
engine. Move the throttle lever to the CHOKE position
for starting. When mowing or trimming, the throttle lever
should be in the RUN position.
3
FEATURES & CONTROLS
FUEL SHUT OFF VALVE
The fuel shut off valve opens and closes the connection
between the fuel tank and the carburetor. If the engine
is equipped with a fuel shut off valve, turn it to the ON
position for starting. When the engine is not in use, leave
the fuel valve lever in the OFF position.
RECOIL STARTER
Used to start engine. Grasp handle and slowly pull until
resistance is felt. After resistance is felt, pull the cord
quickly to start the engine and prevent kickback.
TRIMMER BAIL
To start the trimmer, pull up the trimmer bail located under
the handlebar. When the trimmer bail is engaged, the
trimmer disk is rotating. Release the trimmer bail to stop
the Trimmer. Wait until the trimmer disk has stopped
rotating to inspect or service the Trimmer.

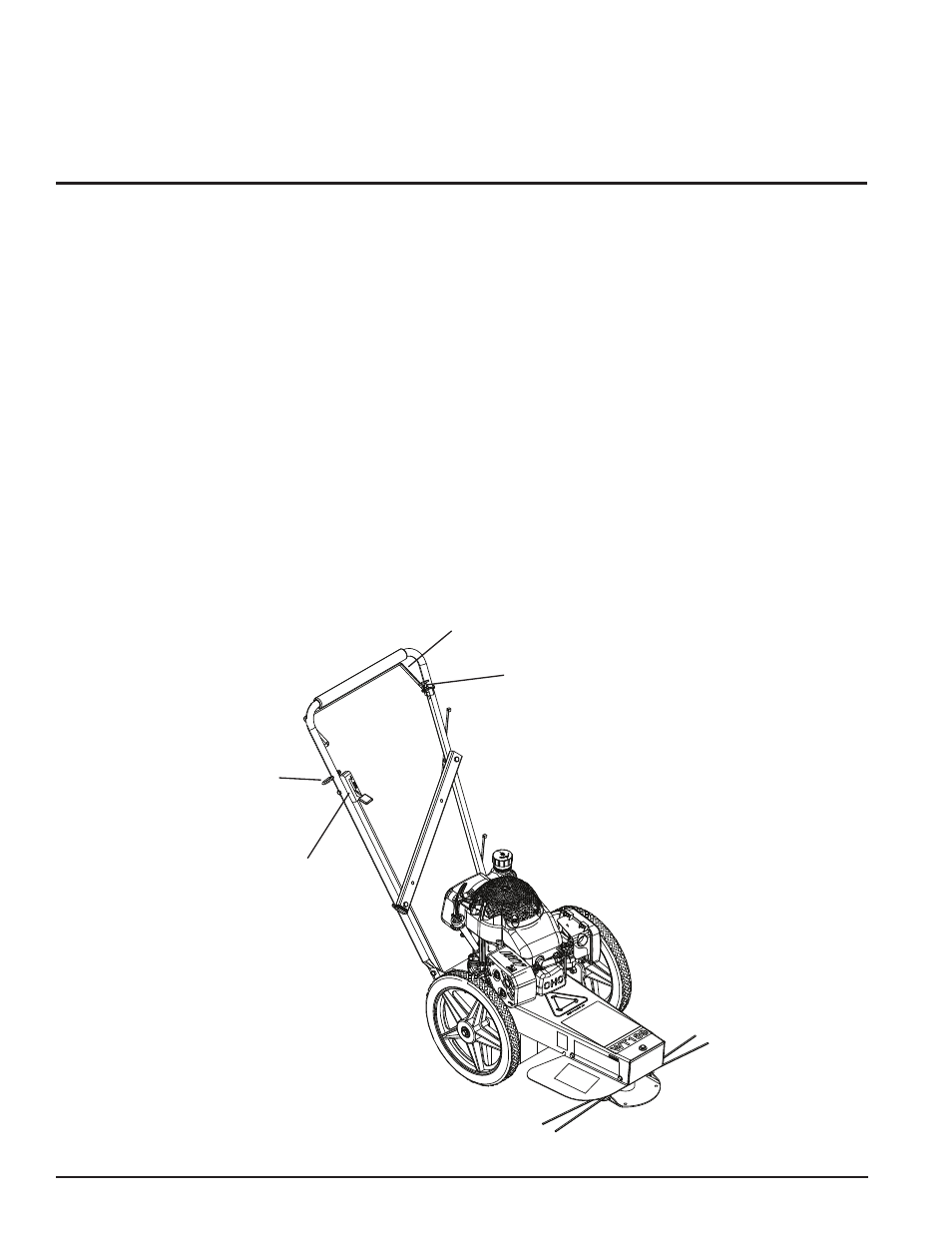

Figure 3.1 - Feature Locations
Understanding how your machine works will help you
achieve the best results when using your machine. The
following descriptions define the features and controls of
your machine.
TRIMMER
BAIL
RECOIL
LOOP
THROTTLE
LEVER
KILL
SWITCH
MODEL WT189
