ASSEMBLING YOUR DRIVE ENCLOSURE
3

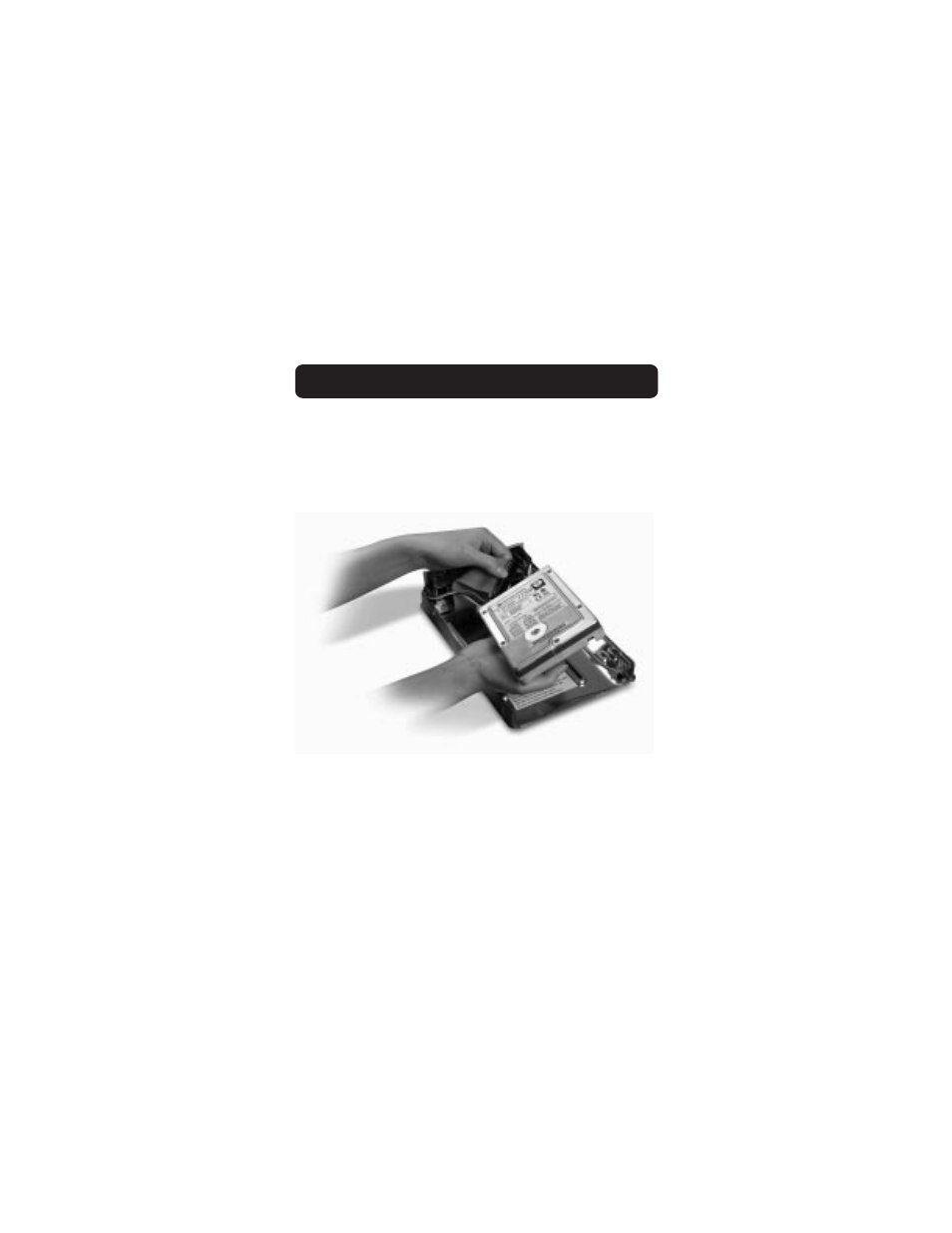

1. Remove top of drive bay enclosure.
2. If you are installing a 3
1
/
2
-inch hard drive, check to make sure your
drive is set to “Master” (see jumper setting information printed on
top of your disk drive), then connect the 34-position data cable and
4-position power cable.
3. If you are installing a CD/CD-RW drive, check to make sure your drive
is set to “Master”, then connect the 34-position data cable, 4-position
power cable, and 4-position audio cable.
