ASSEMBLY

X7702093505

ASSEMBLY

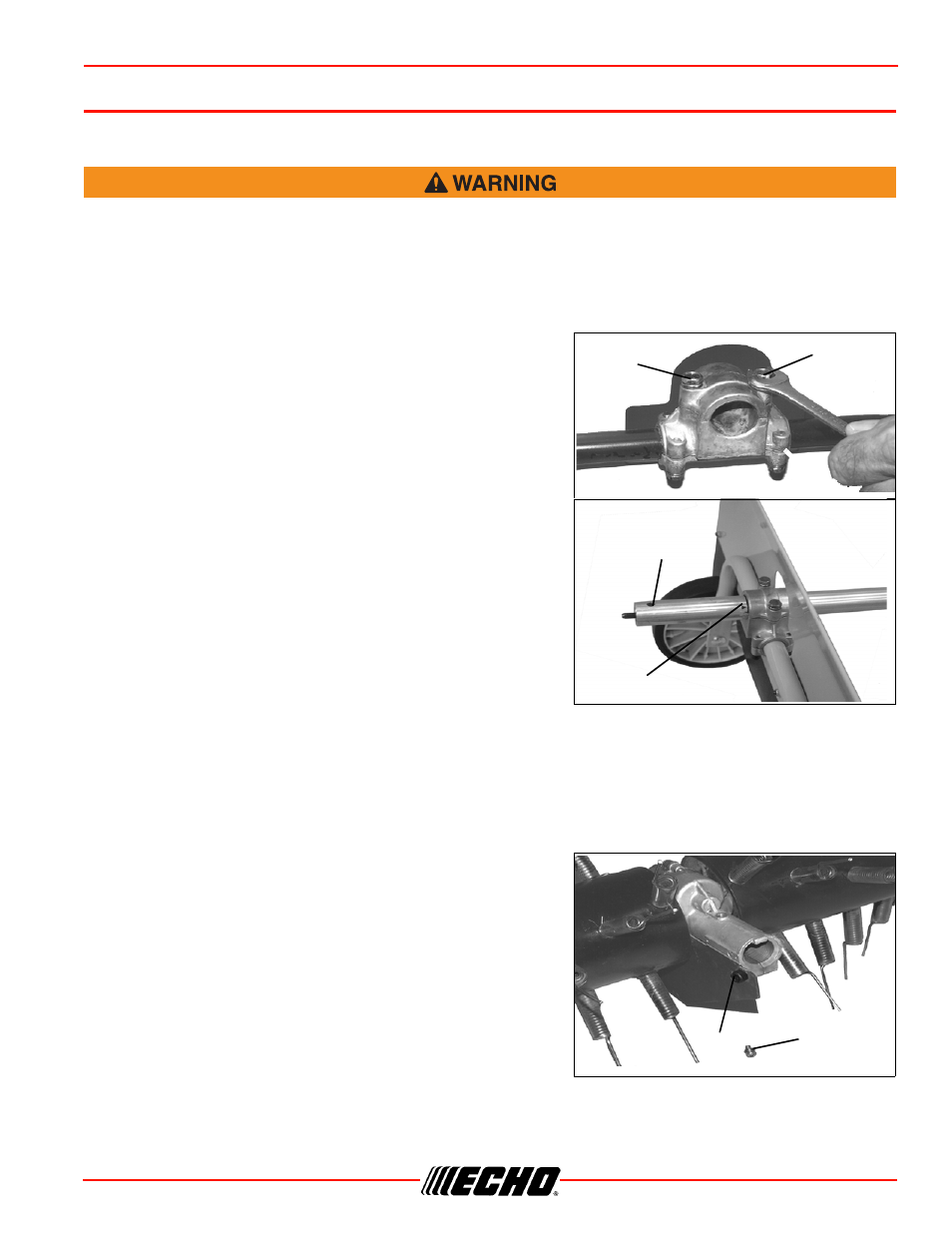

Fender / Wheel Assembly to Lower Drive Shaft Assembly

Do not perform maintenance or assembly procedures with engine running.

1. Remove vinyl caps from attachment drive shaft tube.

2. Loosen two (2) fender/wheel assembly bracket bolts (A).

The bolts should be very loose to prevent bracket from
damaging locating arrow decal label.

3. Install fender/wheel assembly, fender side first, onto end of

lower drive shaft without serial number label. End of drive
shaft should be 95 mm (3.74 in.) from fender clamp. Assure
locating hole (B) is facing upward, and locating arrow decal
(C) is aligned with edge of fender clamp.

4. Tighten bolts (A).

Lower Drive Shaft Assembly to Dethatcher Gear Housing

1. Place dethatcher gear housing on a flat surface with gear

housing shaft mount at 45° angle.

2. Remove gear housing shaft alignment screw (A).

3. Loosen gear housing shaft mounting bolt (B).

Parts Required:

Lower Drive Shaft Assembly, Fender /
Wheel Assembly

Parts Required:

Dethatcher Gear Housing, Lower Drive Shaft
with Fender / Wheel Assembly

95 mm
