5 INCH CHIPPER 6
Section
assemBlY
2

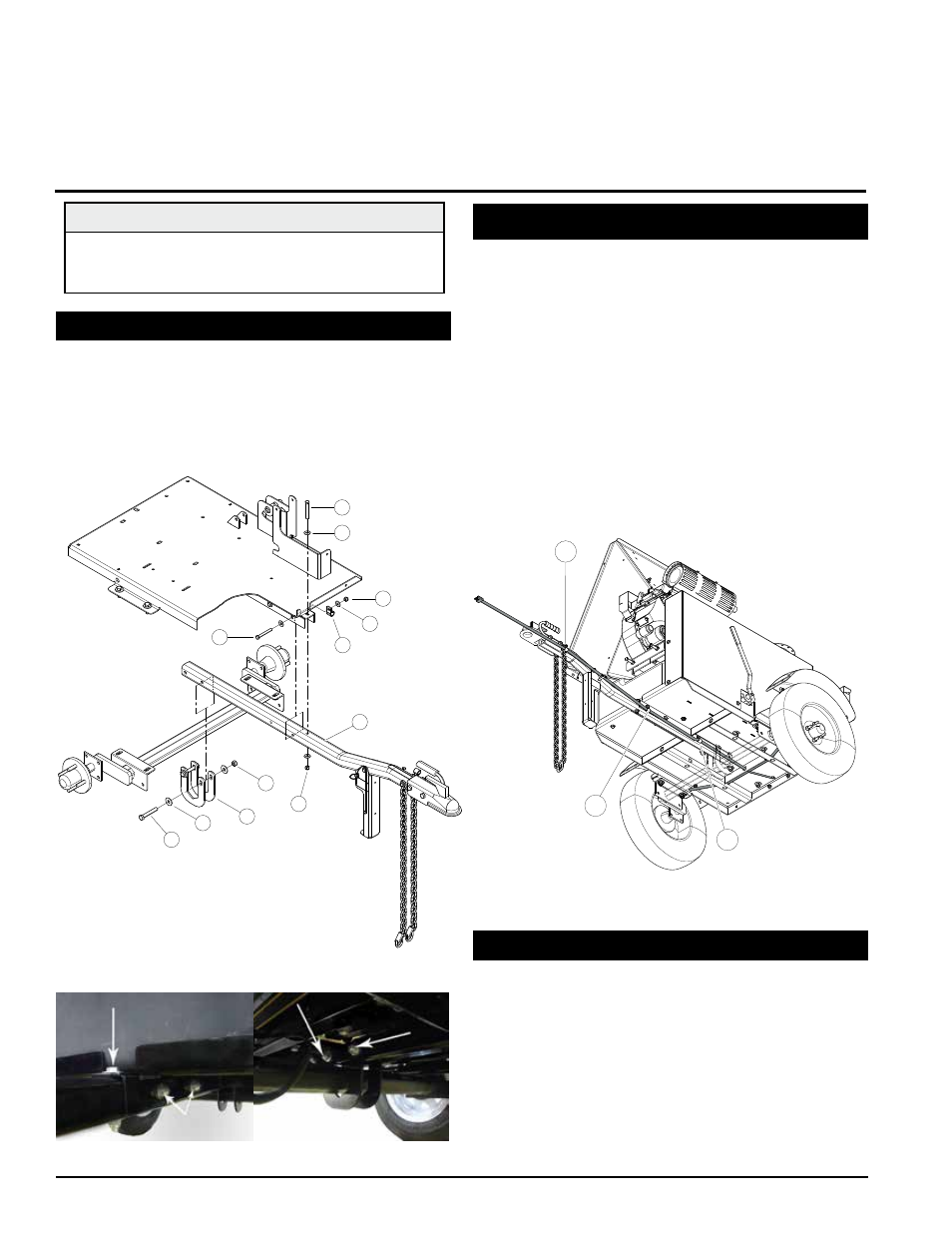

Figure 2.1, Trailer hitch assembly (CE Compliant shown)
Figure 2.2, Hitch pole assembly bolt locations
Figure 2.3, Wire Harness routing (CE Compliant model shown))
noTe
Axle, wheel and hitch assemblies for some models
are supplied by the distributor and may vary from the
illustrations shown in this manual.
2.1 aTTach Trailer wheels
2.2 aTTach Trailer hiTch
2.3 aTTach chipper chuTe
1. use a support or hoist to hold the chipper chute in place
on the chipper frame.
2. Mount the chute to the chipper housing using six 3/8 x
1" carriage bolts and nylock nuts.
1. Hold one wheel to a hub and align the wheel lug holes
with the hub lug studs.
2. Thread the lug nuts on the hub studs and tighten to 75
ft-lbs. Follow a star pattern when tightening lug nuts.
3. Repeat for the remaining wheel.
1. First, attach the hitch pole assembly (10) to the hitch
channel in the trailer deck bottom with two 3/8 x 3 1/4"
bolts (1), washers (2) and nylock nuts (3) and one 3/8
x 3" bolt (4), two washers (2) and nylock nut (3). (See
Figure 2.1.)
2. noTe: three coated clamps (8) will be used for wiring
harness mounting and routing (Figures 2.1 & 2.3)
purposes. Place wiring harness in clamps before
securing the clamps in place on the bolts. see Figures
2.1 & 2.3 for clamp locations.
3. Next, place the two hitch plates (5) over the axle and
attach to hitch pole using two 1/2 x 3 1/4" bolts (6),
four washers (7) and centerlock nuts (9) as shown in
Figures 2.1 & 2.2.
8
8
8
9
6
7
1
5
8
4
2
2
3
3
10
