5" and 8" Skid Steer Chipper

16

Section

7

sPecificaTions

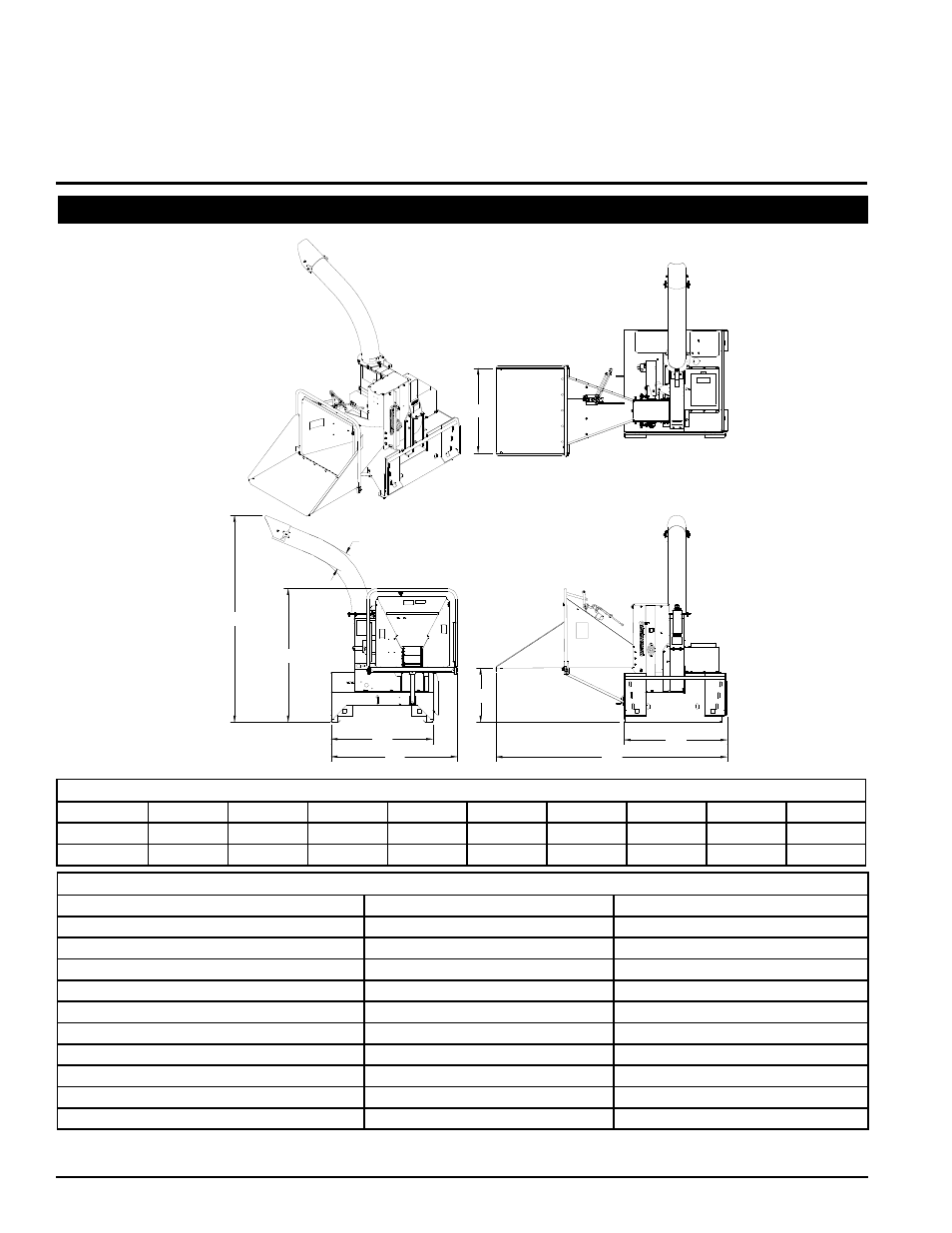

model ch500h & ch800h dimensional daTa

model

a

b

c

d

e

f

g

h

i

ch500h

91.9

102.2

56.4

46.0

48.1

49.2

23.3

29.6

6.0

ch800h

92.2

103.3

59.6

46.0

45.4

56.5

23.6

37.8

8.0

sPecificaTions

rOtOr SPeed

2000 rPM at 15 gPM

1500 rPM at 25 gPM

FraMe Material

1/4" tHiCk Steel CONStruCtiON

1/4" tHiCk Steel CONStruCtiON

CHute Size

32" x 36"

32" x 36"

drive SySteM

HydrauliCS

HydrauliCS

Skid-Steer HydrauliCS

StaNdard Or HigH-FlOW

HigH-FlOW

CHiPPer BladeS

4 BladeS (tOOl Steel)

4 BladeS (tOOl Steel)

rOtOr Size

20" x 1-1/4", 140 POuNdS

30" x 1-1/4", 275 POuNdS

WeigHt

1145 lBS.

1525 lBS.

CHiPPer OPeNiNg Size*

5-1/2" x 7"

9" x 9"

CONtiNuOuS CHiPPiNg Size*

3" (76.2 MM) diaMeter

5" (127 MM) diaMeter

diSCHarge tuBe rOtatiNg aNgle raNge

360 degreeS

360 degreeS

*CONtiNuOuS CHiPPiNg Size ratiNg reFerS tO tHe SuggeSted FeediNg Size OF liMBS FOr NOrMal OPeratiONS.

liMBS uP tO tHe CHiPPer OPeNiNg Size May Be Fed, But deCreaSed PerFOrMaNCe Will OCCur.

"H"

"a"

"i"

"C"

"e"

"F"

"B"

"d"

"g"

7.1 size sPecificaTions
