Instruction Sheet 5

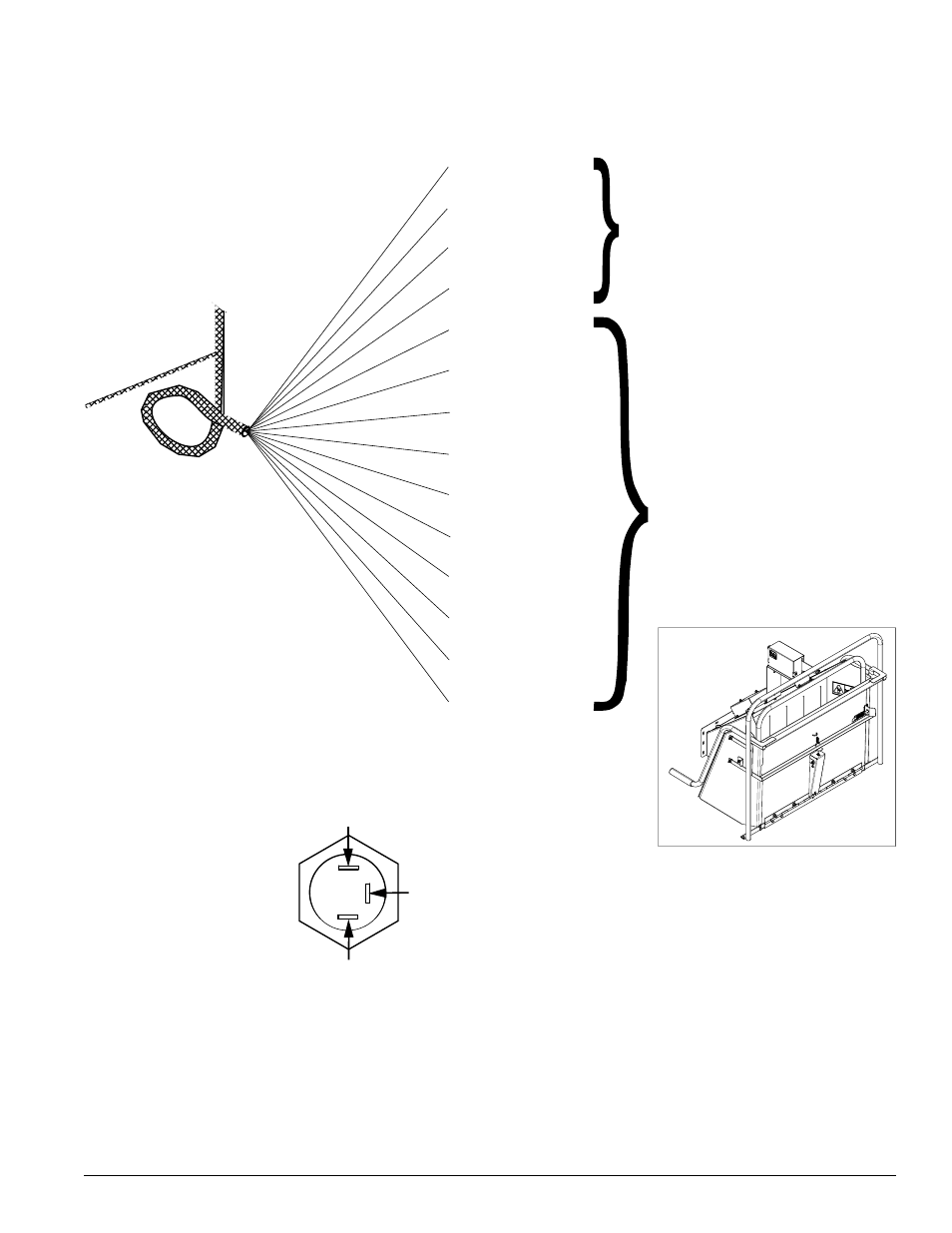

After the Plus 1 controller harness wires are all properly connected, plug the controller harness into the Plus 1 7.
controller. Plug the black connector into the black receptor and the grey connector into the grey receptor.
Wrap all exposed wire in electrical tape (not provided) and tuck the wires into the controller enclosure.
8.
GREEN/BLACK
ORANGE/BLACK
RED (#1 WIRE)
WHITE
GREEN
ORANGE
BLACK
YELLOW
LIGHT GREEN
RED/BLACK
RED/YELLOW
RED (#3 WIRE)
RED (#2 WIRE)
DO NOT CONNECT TO PLUS 1
HARNESS. TAPE EACH END
INDIVIDUALLY AND THEN
TAPE ALL FOUR WIRES
TOGETHER.
CONNECT TO WIRES OF
MATCHING COLOR ON
THE PLUS 1 HARNESS.
CONNECT WIRES FROM THE PLUS 1
HARNESS TO THE TRI-COLORED
LED AS SHOWN HERE.
CHIPPER
HARNESS PN
18547-00
RED (#4 WIRE)
RED/YELLOW
WHITE
BLUE
WIRING FOR EURO MODELS WITH kNEEBAR SAFETY FEATURE
WITH KNEEBAR
