Echo 70487 User Manual
Page 3
Instruction Sheet
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
25
26
27
28
29
30
31
32
33
34
REMOVE
FOR PTO
MODEL
35
36
37
38
39
23
40

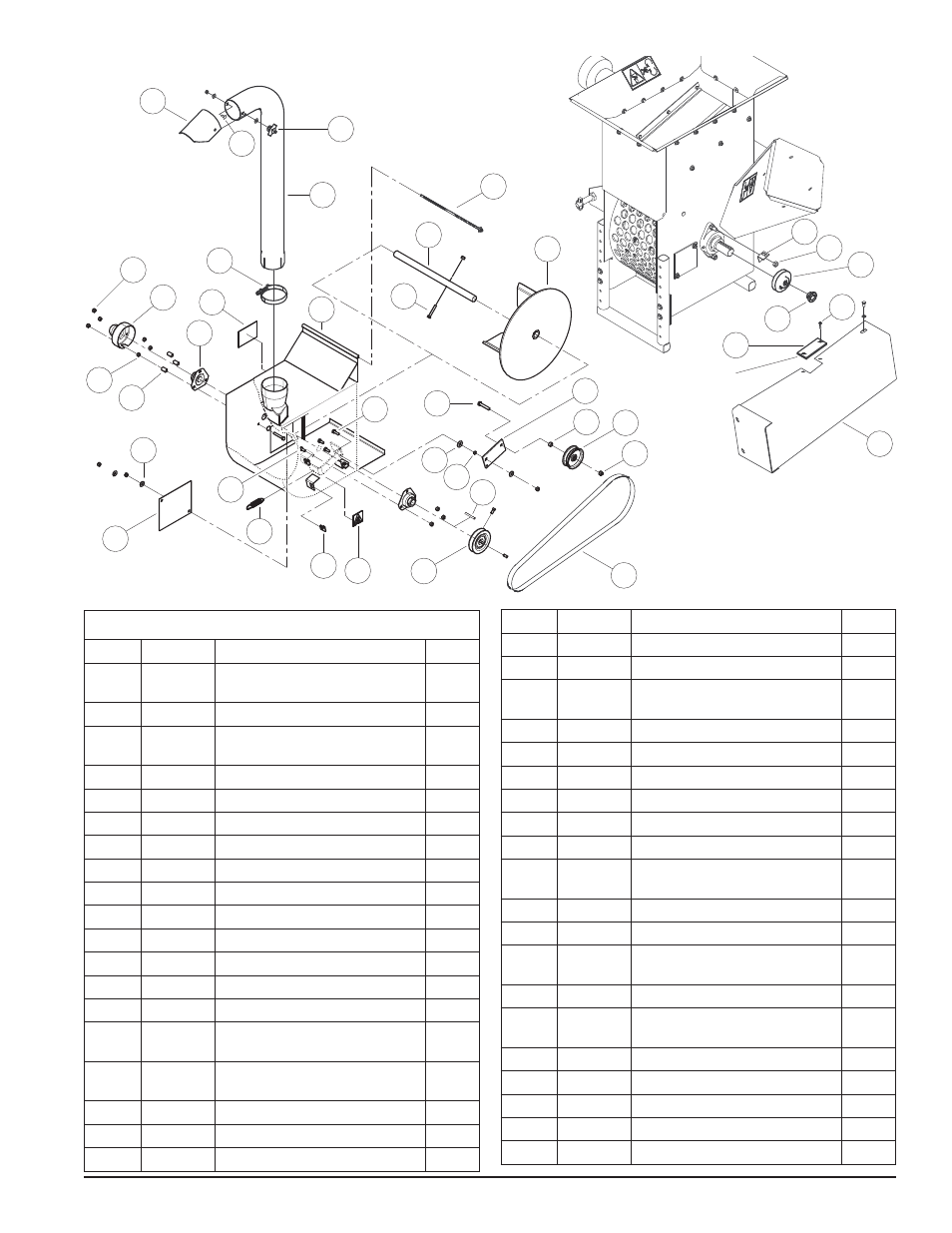

SINGLE SPEED COMMERCIAL BLOWER, PN 70487
ITEM
PART NO.
DESCRIPTION
QTY
1
12174
DECAL, SHIELD DANGER
ISO
1
2
15003
BOLT, 5/16 X 3/4 HEX HD
7
3
15008
BOLT, 3/8 NC X 2 HEX HD
GR5
1
4
15049
NUT, 1/2 CENTERLOCK
1
5
15097
WASHER, 1/2 FLAT
1
6
15140
BOLT, 5/16 X 2 HEX HD
4
7
15178
NUT, 5/16 CENTERLOCK
3
8
15219
BOLT, 5/16 X 1 HEX HD
1
9
15250
WASHER, 5/16 FLAT
11
10
15321
KNOB, SPOUT 5/16-18
1
11
15356
NUT, 5/16 NYLOCK
13
12
15367
BOLT, 5/16 X 3/4 CRG GR5 ZP
2
13
15388
NUT, 3/8 NYLOCK
1
14
15391
KEY, 1/4 X 2 SQUARE
1
15
15402
NUT, 5/16 TINNERMAN
U-TYPE
4
16
15422
SCREW, TEK HX WSH HD
10/16 X 1 ZP
4
17
16016
BUSHING, SH 1-1/2 IN
1
18
16086
V-BELT, BX-49
1
19
16499
SHEAVE, 1B 3.6 SH
1
20
17692
SPRING, BLOWER DRIVE
1
21
17740
PULLEY, 3-1/2 IDLER
1
22
17831
BEARING, 1 IN FLUSHMOUNT
2
23
17958
PULLEY, (CAST) 4.0 X 1.0
B-GROOVE
1
24
17960
CLAMP, T-BOLT 4-1/4 ID ZP
1
25
36176-00
DECAL, INSTRUCTION ISO
1
26
41158
TUBE, SPACER
1
27
69126
SPACER, IDLER PIVOT
1
28
70249
BLOWER TUBE
1
29
70253
SPOUT, BLOWER TUBE
1
30
70471
WELDMENT, LARGE
BLOWER IMPELLER
1
31
70475
IDLER PLATE, BLOWER
1
32
70478
SHAFT, LARGE BLOWER
1
33
70481
WELDMENT, LARGE
BLOWER
1
34
70485
WELDMENT, BELT GUARD
1
35
70486
REMOVABLE SHIELD, BELT
GUARD
2
36
70495
SPACER, .54 X .88
3
37
70521
PIN, 5/16 X 14
1
38
70760
CAP, ROTOR SHAFT END CAP
1
39
71385
COVER, ACCESS
1
40
70496
BRACKET, BELT GUARD
1
