4
Adjustable
Seat Back
Adjustable
Seat
Cable
Variable
Pulley System
Hand Grip
Standing Platform
Spring Lock Seat
Pin
Leg Extension/
Leg Curl
Attachment
Bowflex Revolution ® XP Parts Reference Guide
Adjustable Arms
SpiraFlex ®
Resistance Packs
Engine
Housing
Tension Control
Knob
Please take your time to read through the entire manual and follow it carefully before attempting to use your
Bowflex Revolution ® XP home gym. Also locate and read all warning labels that are posted on the machine. It is
important to understand how to properly perform each exercise before you do so using SpiraFlex ® Resistance.

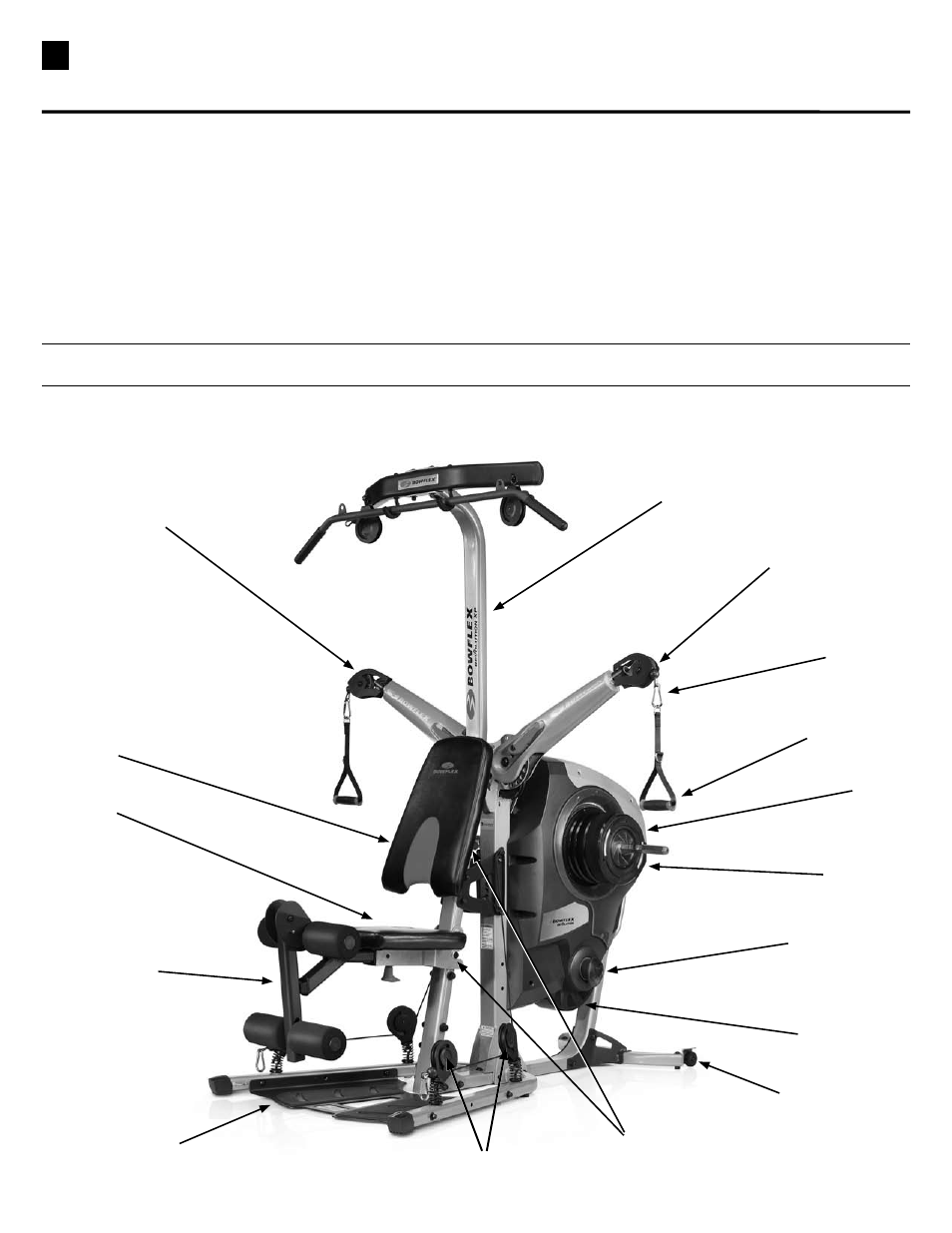

The image below shows the machine set up in just one of many configurations. Included as standard accessories
with your new Bowflex Revolution ® XP home gym are a leg extension, ab attachment, foot harnesses, and squat
harness. Instructions for attaching various accessories, storing cables, and changing out components are included
later in this manual, as well as in the Assembly Manual.
Lower Pulley
Getting to Know Your Bowflex Revolution ® XP home Gym
Lat Tower
(optional)
Squat Frame
Pulleys
Transport Wheels
