Hardware Installation

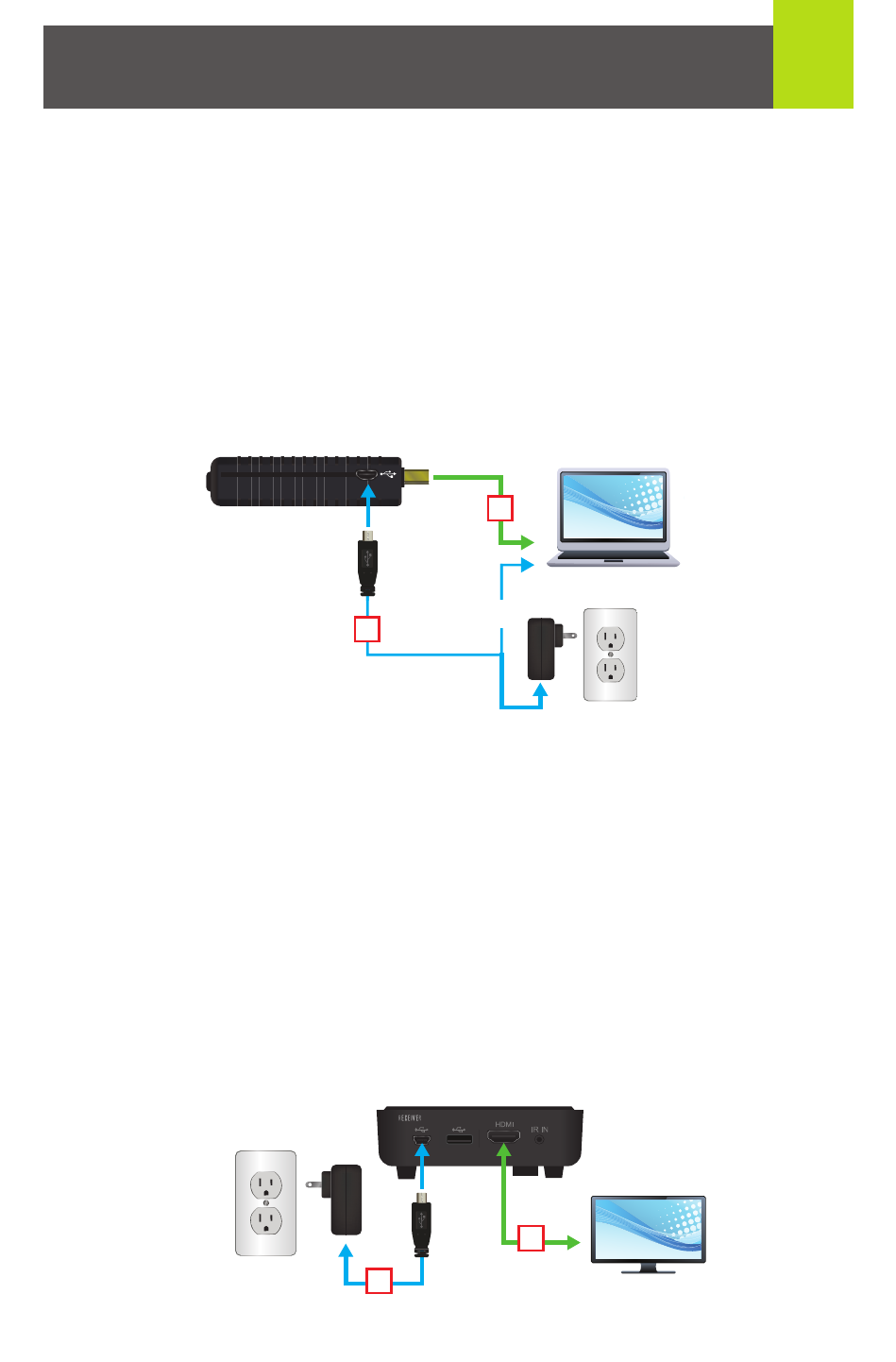

Step 1: Setup the Wireless HDMI Transmitter
1. Connect the Wireless HDMI Transmitter to the HDMI port
of the computer or media source.
2. Power the transmitter through one of two options:
a. If used with a Blu-Ray player or similar device, connect
the Wireless HDMI Transmitter to the USB power adapter.
b. If used with a computer, connect the Mini USB to USB
cable from the transmitter to a USB port on the computer.
Step 2: Setup the Wireless HDMI Receiver
1. Connect the USB power adapter to the Mini-USB power jack
on the receiver and a wall outlet for power supply.
2. Connect the HDMI cable to the HDMI Output on the
receiver and to the HDMI Input on the HDTV / HD projector.
3. Power on the HDTV / HD projector. Once the link has been
established between the transmitter and receiver, video from
the connected computer or HDMI media source will be
displayed on the HDTV / HD Projector.
