Overview
* Some gaming keyboards may have accessories that require more power than the
KeyMander can supply, requiring an external power supply. Please visit
www.shopiogear.com to order part GPA60002 1A USB power supply. Connect
supplied USB A to Mini B cable between KeyMander and power supply.

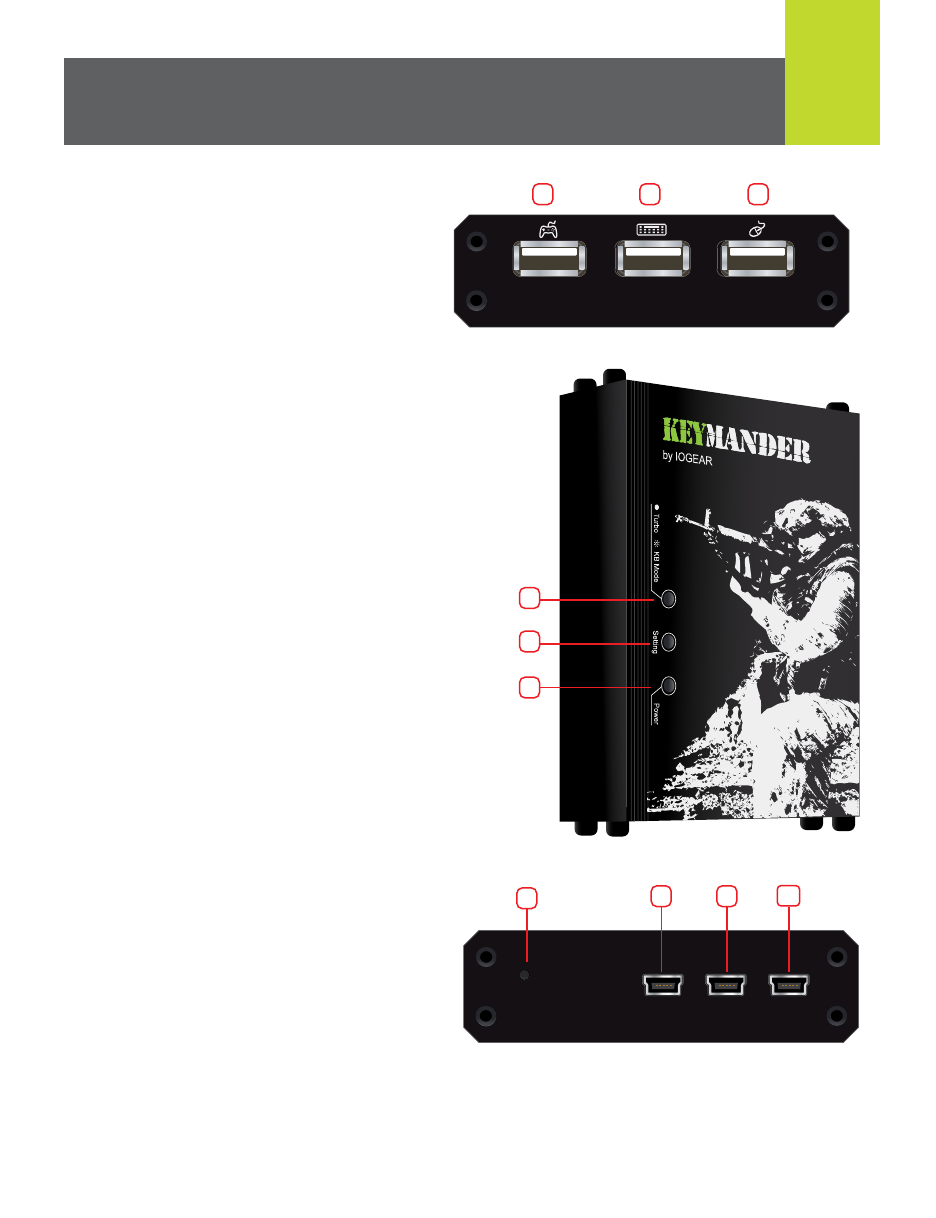

1. Gamepad port
2. Keyboard port
3. Mouse port
4. Turbo/Keyboard Mode LED
Indicator:
a. Lights solid ORANGE
when Turbo Mode is ON
b. Flashes ORANGE when
Keyboard Mode is ON
5. Setting LED indicator:
a. Lights solid BLUE when PC port
is connected to a computer.
b. Flashes (Fast) BLUE when
uploading a profile from a
computer to the KeyMander.
c. Flashes (Slow) BLUE when Direct
Mapping Mode is on.
6. Power LED indicator
7. Reset button
8. Game Console connection port
9. PC connection port
10. Power port (optional).
Connect to an optional
5VDC power supply for high
current keyboards, such as
those with built-in USB hubs
and headphone ports, etc.
*
