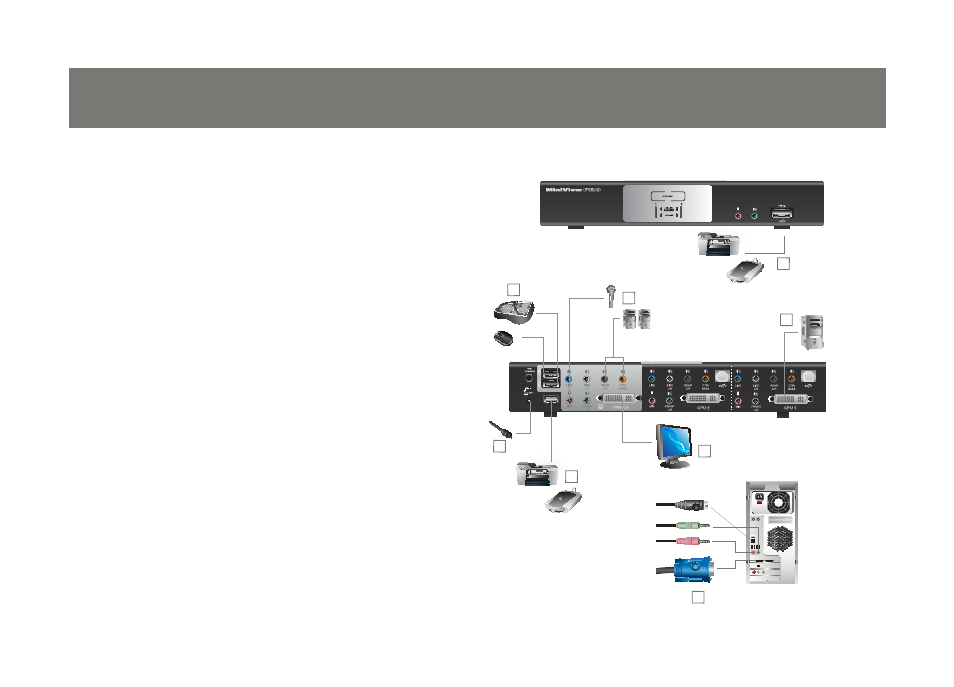

4. At the other end of the cable, connect the
USB, video, microphone, and speaker cables
into their respective ports.
5. Connect your USB peripherals into the type
A sockets (one is located on the front, the
second is located on the rear).
6. Connect the power adapter that came with
your switch into the jack on the switch then
connect the adapter to an AC power source.
7. Verify your connections: ports are correct and
that the Icons match the connection type
8. Power on the computers.
