IOGear GCS1724 - Manual (Page 10)

5
4
3
- 10 -

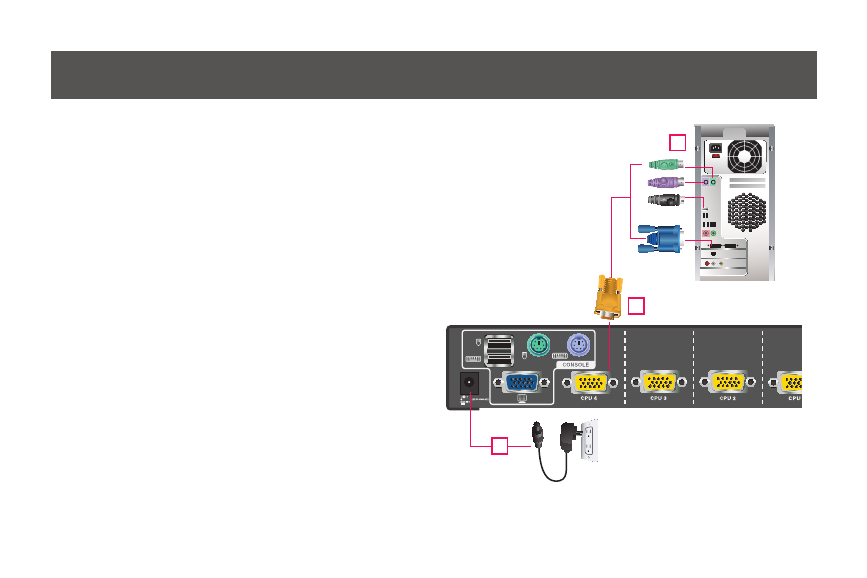

STEP 3
Using the custom KVM cable set (provided with this
package), plug the custom SPHD connector into any
available socket into the KVM port section of the switch.
STEP 4
At the other end of the cable, plug the USB or PS/2
and VGA connectors into their respective ports on the
computer.
Note: If you are using a combo console – for example,
USB mouse and PS/2 keyboard – plug in both the USB
and PS/2 connectors.
STEP 5
If you choose to use an external power, plug the power
adapter into an AC power source, then plug power
adapter cable into the switch’s Power Jack.
STEP 6
Turn on the power to the computers.
