SECTION 4 - MACHINE OPERATION
4-12 – JLG Lift – 3120685
SECURE TURNTABLE WITH TURNTABLE LOCK BEFORE TRAV-
ELING LONG DISTANCES OR HAULING MACHINE ON TRUCK/
TRAILER.
4.11 SWING-AWAY JIB
To Erect the Jib
1. Remove the lockpin from the jib plates.
2. With the aid of an assistant, swing the jib until
straight with the boom and the holes in the jib plates
align.
3. Install the lockpin through aligned holes in the jib
plates. The machine can now be operated from the
platform controls.
To Stow the Jib
1. Remove the lockpin from the jib plates.
2. With the aid of an assistant, swing the jib closed until
its alongside the boom and the holes in the jib plates
align.
3. Install the lockpin through the aligned holes in the jib
plates. The machine must now be operated from the
ground controls or the remote control box.

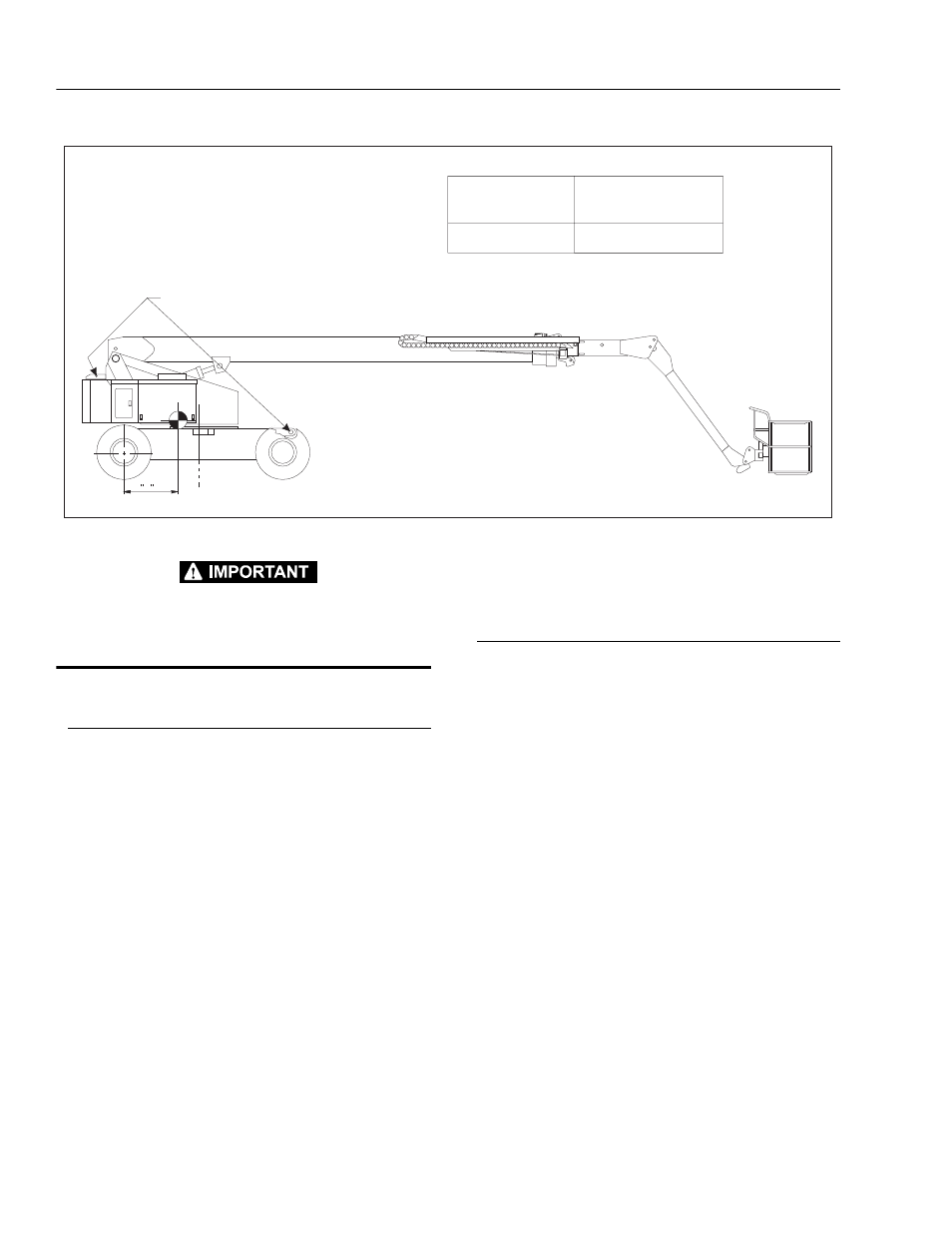

Figure 4-7. Lifting Chart
Gross Weight
Standard Machine
Dimension A
44,000 lbs. (19,960 kg) 82.7 in. (210 cm)
LIFT HERE
CENTER
OF
GRAVITY
ROTATION L
A
C
