N° de pieza 31200075 • Manual del propietario/operador del G9-43A (español)
2.1

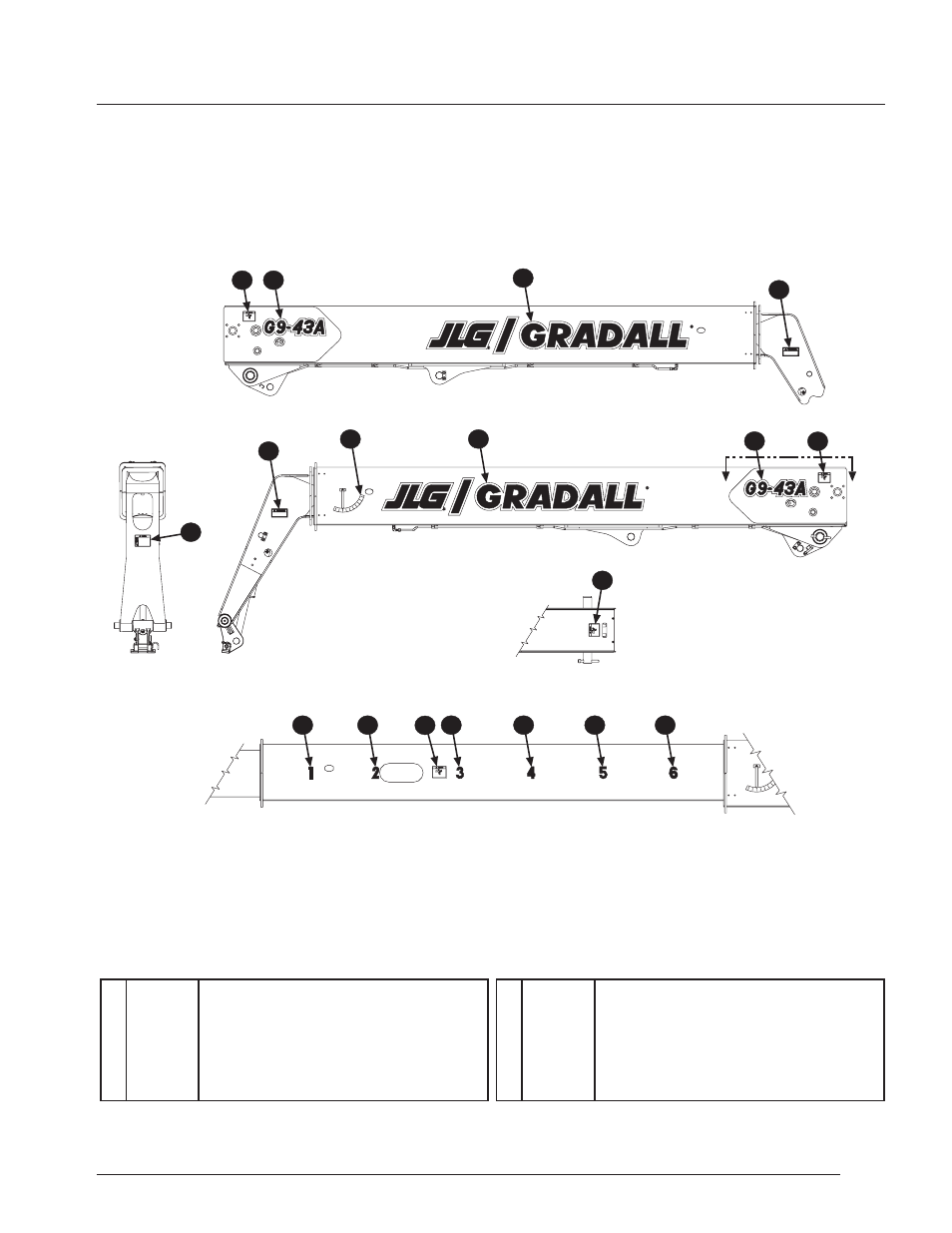

Figura 2-4
18 9151-3256
Etiqueta de advertencia,
Punto de aprisionamiento
19 9151-3043
Etiqueta de G9-43A
20 9147-3132
Etiqueta JLG/Gradall
21 9151-3256
Etiqueta de advertencia,
Punto de aprisionamiento
22 9100-3031
Etiqueta de ángulo de la pluma
23 9100-3016
Etiqueta “1”
24 9100-3018
Etiqueta “2”
25 9112-3042
Etiqueta “3”
26 9100-3020
Etiqueta “4”
27 9112-3044
Etiqueta “5”
28 9116-3077
Etiqueta “6”
14
22
9151-3210 REV -
MOVING P
AR
TS could cut or crush causing
death or serious injury
. Keep clear of
moving p
art
s while engine is running.
9151-3208 REV -
When lifting personnel, USE ONLY a Gradall manufactured
personnel work platform, with proper personnel work
platform CAPACITY CHART DISPLAYED in cab.
READ AND UNDERSTAND personnel work platform Owner/Operator
manual before lifting personnel.
DO NOT DRIVE machine from cab when personnel are on platform.
All personnel on platform must WEAR A FULL BODY HARNESS,
with lanyard attached to a designated anchorage point.
When personnel are on platform, the OPERATOR MUST REMAIN
SEATED in cab with personnel in direct line of sight.
OPERATE CONTROLS CAUTIOUSLY and lightly when lifting or
positioning personnel.
Failure to comply could result in death or serious injury.
9151-3210 REV -
MOVING PARTS could cut or crush causing
death or serious injury. Keep clear of
moving parts while engine is running.
9114-3282
STAY CLEAR OF PINCH POINT AREA
ANYTIME ENGINE IS RUNNING.
BEING IN PINCH POINT AREA COULD
CAUSE SERIOUS INJURY OR DEATH.
9114-3282
STAY CLEAR OF PINCH POINT AREA
ANYTIME ENGINE IS RUNNING.
BEING IN PINCH POINT AREA COULD
CAUSE SERIOUS INJURY OR DEATH.
9151-3210 REV -
MOVING PARTS could cut or crush causing
death or serious injury. Keep clear of
moving parts while engine is running.
0°
9151-3210 REV -
MOVING PARTS could cut or crush causing
death or serious injury. Keep clear of
moving parts while engine is running.
19
18
20
21
19
18
20
21
23
24
25
18
26
27
28
18
VIEW B-B
B
B
VISTA B-B
