SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3121272 – JLG Lift – 3-7
Also located on the MDI are Battery Discharge Indicators (BDI)
(items 4 thru 7). (4) GREEN LEDs indicate the level of charge (volt-
age) remaining in the batteries.
NOTE: When the battery voltage is low and will need a charge soon, the
LED (item 4) in the 0-25% range "red area" will flash.
Under normal operating conditions the BDI’s and hour-meter will be
displayed. When a DTC exists (other than 00x DTC’s) the BDI LEDs and
hour-meter will not be displayed.
Overload Indicator (If Equipped)
- (Item 5 - Figure 3-3.)
Overload Indicator - Indicates the platform has been overloaded. An
audible alarm will also signal when the platform is overloaded.
NOTE:
If the Overload Indicator is illuminated, all functions will be pre-
vented from the platform and ground controls. Reduce the
weight in the platform to not exceed the rated workload indi-
cated on the capacity decal.

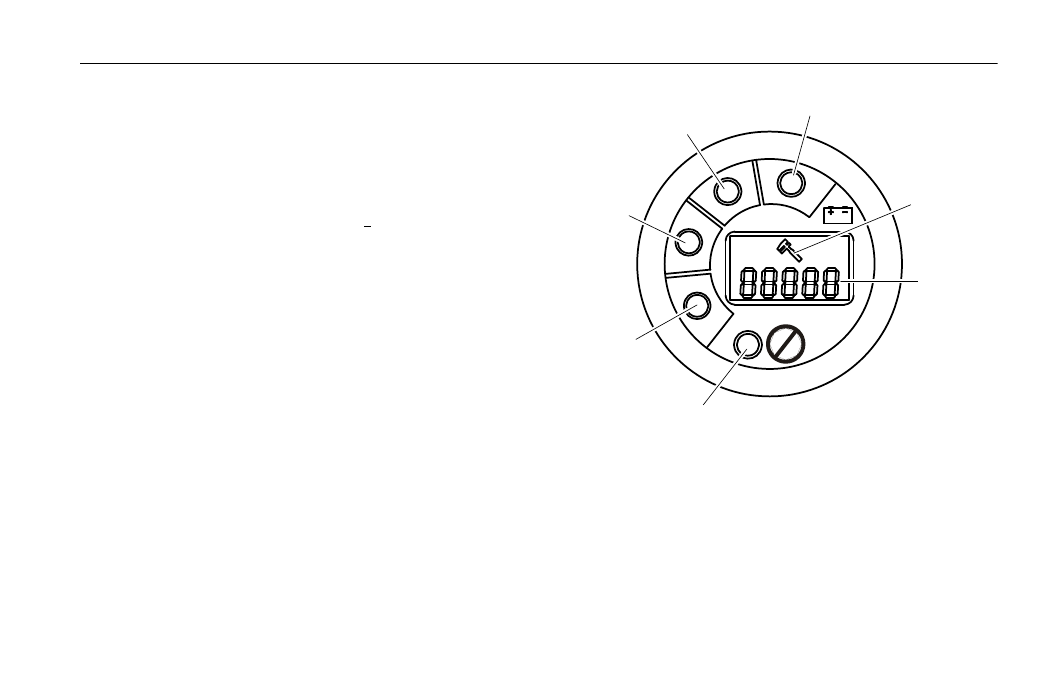

Figure 3-4. MDI Indicator
1. Wrench Icon Indicator
2. Hour-meter/DTC Code Display
3. System Fault LED Indicator (RED
LED)
4. 0-25% Charge Indicator
(RED AREA)
5. 50% Charge Indicator
(YELLOW AREA)
6. 75% Charge Indicator
(GREEN AREA)
7. 100% Charge Indicator
(GREEN AREA)
1
2
3
7
6
5
4
