SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3-12 – JLG Lift – 3121162
Crane Lifting Lug
An optional crane hook lifting lug is available. When lifting
with a crane, lift only with the optional crane lifting lug as
shown in Figure 3-9.
Truck Transport
IMPORTANT
DO NOT TRANSPORT THE MACHINE IN A HORIZONTAL POSITION
DUE TO POSSIBLE HYDRAULIC FLUID LEAKAGE FROM THE
HYDRAULIC RESERVOIR.
The 9MP machine may be transported by loading onto a
truck bed by either lifting the machine onto the truck bed
by forklift truck, or by pushing onto the truck bed from a
platform of equal height.
TIE DOWN LOOPS ARE PROVIDED ON BOTH ENDS OF THE BASE
FRAME TO SECURE MACHINE TO BED OF TRANSPORT VEHICLE.
Machine Tie-Down
With machine in position to be tied down, use the follow-
ing guidelines for restraining the machine during trans-
port.
IMPORTANT
USE OF EXCESSIVE FORCE WHEN SECURING MACHINE CAN CAUSE
DAMAGE TO THE MACHINE WHEEL COMPONENTS.
1. Secure machine with an adequate chain or tie-down
strap attached through the tie down loops located at
the front and rear of machine. (See Figure 3-10.)
2. The chain/tie-down strap should be secured with
enough force to remove any slack and not allow any
machine movement during transport.

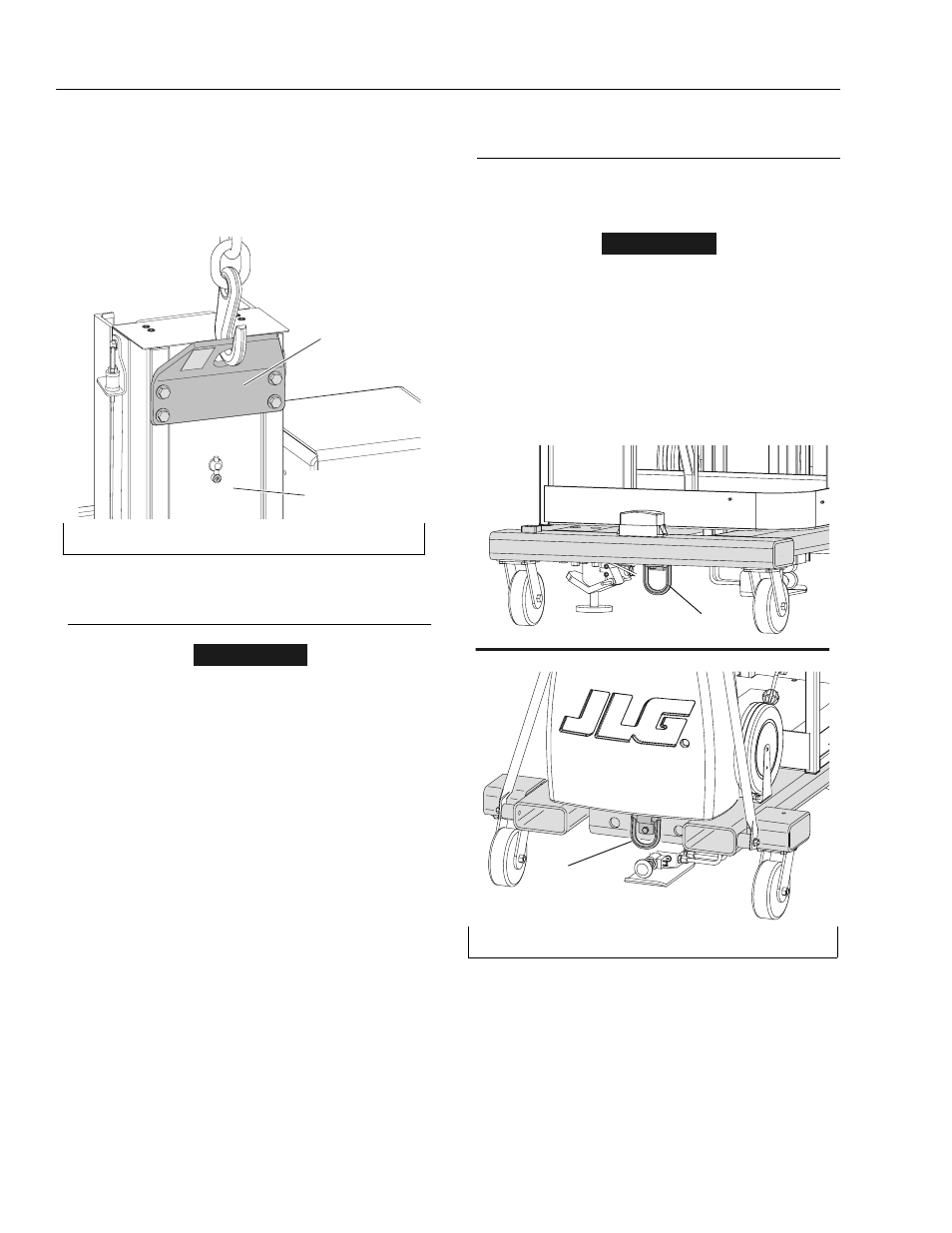

1. Crane Hook Attach Plate 2. Back of Mast
Figure 3-9. Crane Hook Attach (Option)
1
2
1. Front Tie Down Loop 2. Rear Tie Down Loop
Figure 3-10. Front/Rear Machine Tie-Down Loop
Location.
1
2
