5-8 3121805
SECTION 5 CYLINDERS
S
E
C
T
I
O
N
5
C
Y
L
I
N
D
E
R

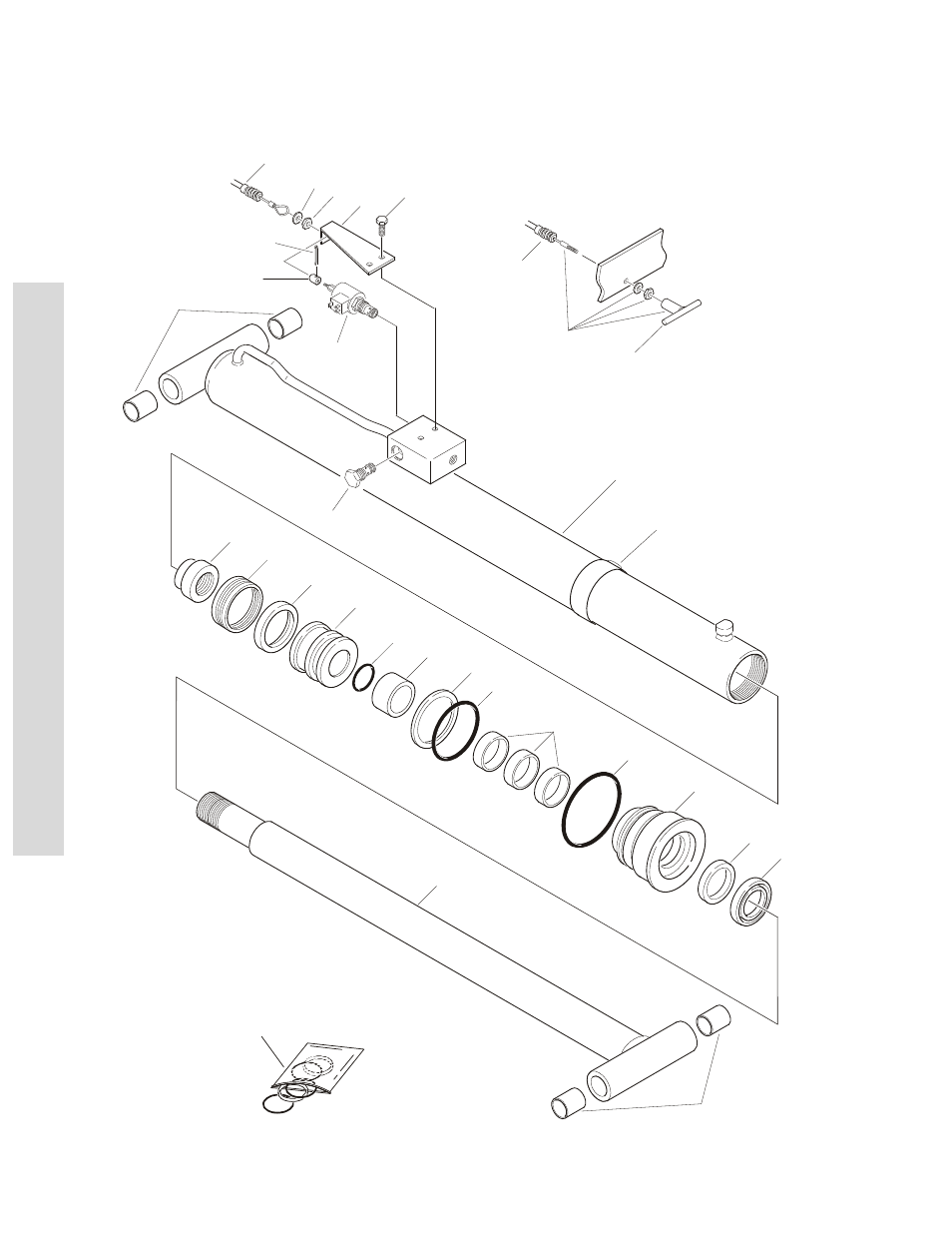

FIGURE 5-4. LIFT CYLINDER COMPONENTS ASSEMBLY - 330CRT
1
19
26
30
38
47
54
53
55
30A
30B
30
115
115
111
119
101
108
105
120
107
118
104
109
106
103
102
117
116
71
73
74
151
