Figure 6-1. 4wd hydraulic diagram – JLG M600 ANSI Parts Manual User Manual

Page 188

background image

6-2

E600/E600J E600JP M600/M600J M600JP

3121118

SECTION 6 HYDRAULIC

FIGURE 6-1.

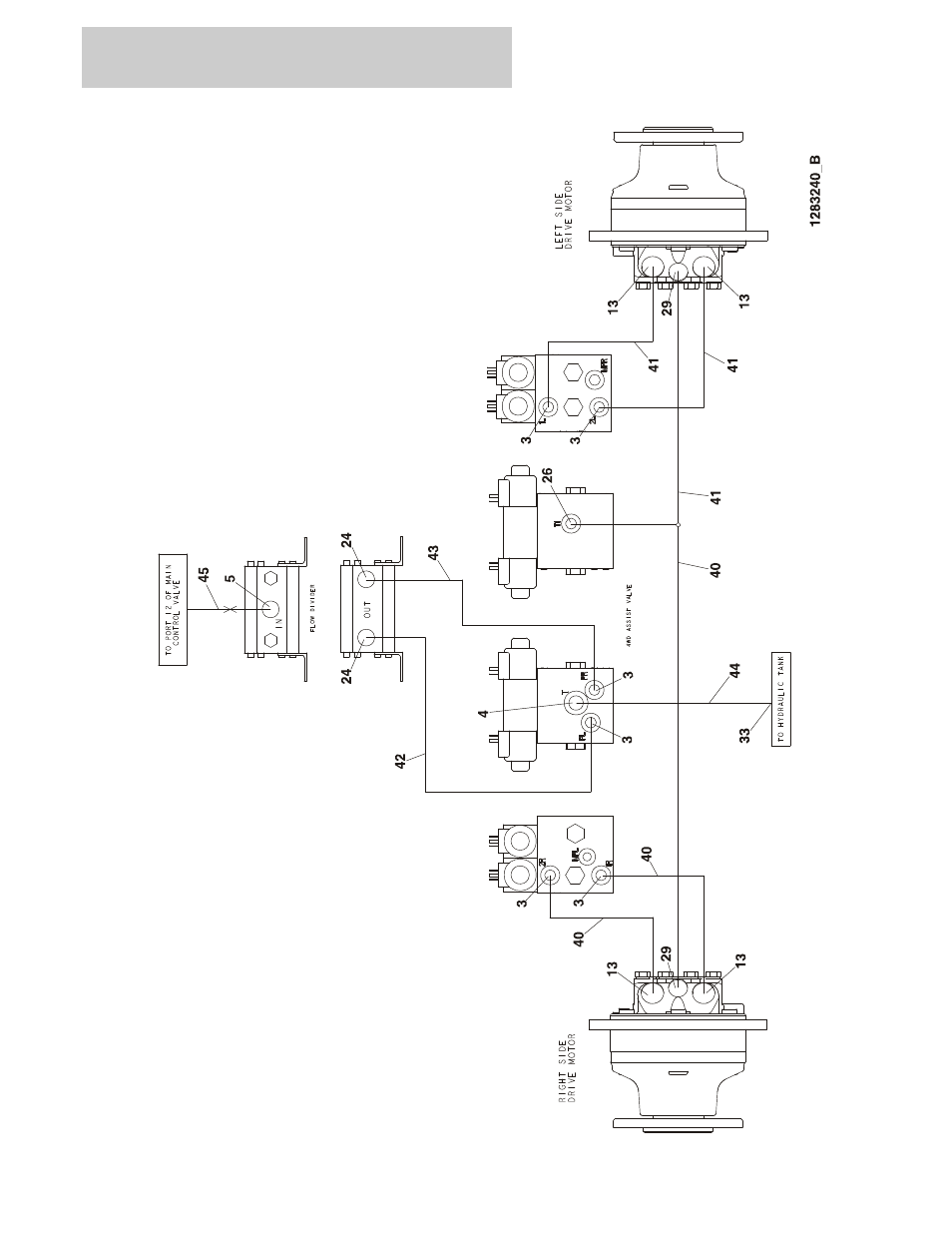

4WD HYDRAULIC DIAGRAM
