SECTION 4 - MACHINE OPERATION
3121212 – JLG Lift – 4-3
Battery Charger Operation
(See Figure 4-2. & Figure 4-3.)
ALWAYS CHECK THE VOLTAGE SELECT SWITCH ON THE FACE OF THE
BATTERY CHARGER BEFORE OPERATION. IF NOT SET TO THE
PROPER AC POWER INPUT VOLTAGE, THE CHARGER MAY BE DAM-
AGED.
1. Turn the ground control key switch to the OFF position.
2. Set the AC voltage switch on the face of the charger for
the local AC line voltage.
3. Plug the battery charger AC power cable, stowed inside
the battery/charger carrier (beside charger) into a prop-
erly grounded receptacle. Use a suitable extension cord, if
necessary.
4. The charger runs through a self-diagnostic check. The
LED’s on the face of the charger flash in the following
sequence;
a. First all five (5) LED’s flash three (3) times.
b. Next each LED lights in sequence.
c. Finally all five (5) LED’s flash three (3) times again.
5. When ready to charge, the CHARGER ON LED and the
INCOMPLETE CHARGE (25%) LED on the front panel of

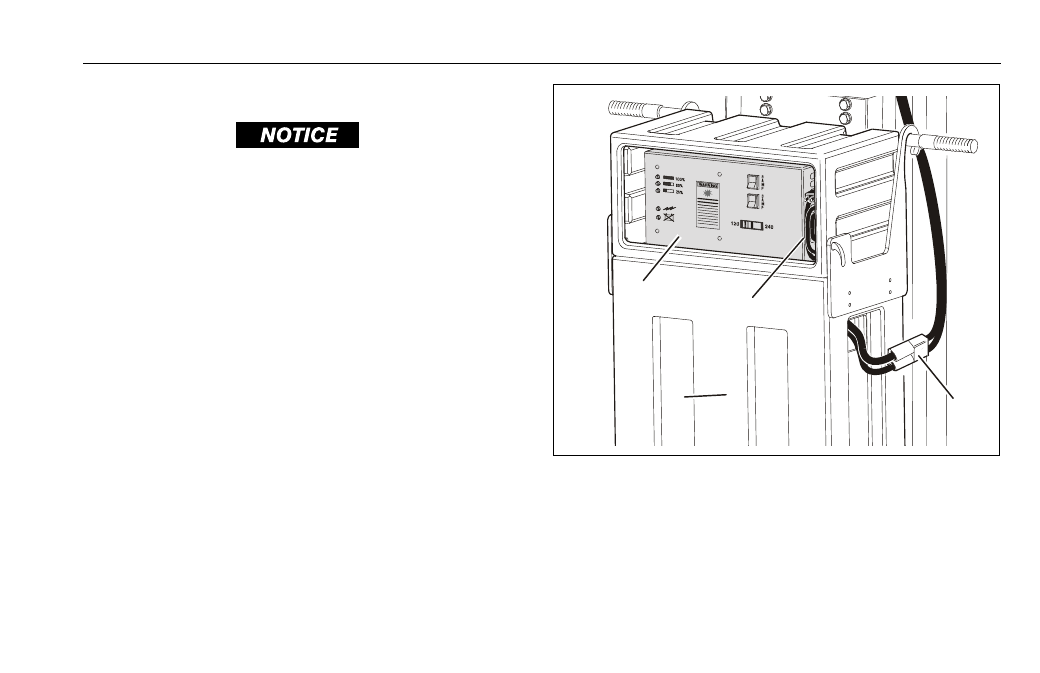

Figure 4-2. Battery Box and Charger Assembly.
1. Battery Box/Charger Assembly
2. DC Battery Charger 3. Charger AC Power Cord
4. DC - Battery to Machine Main
Power Connector
2
1
4
3
