ELECTRICAL
G5-18A, 2505H, 25.5 31200725 10-42

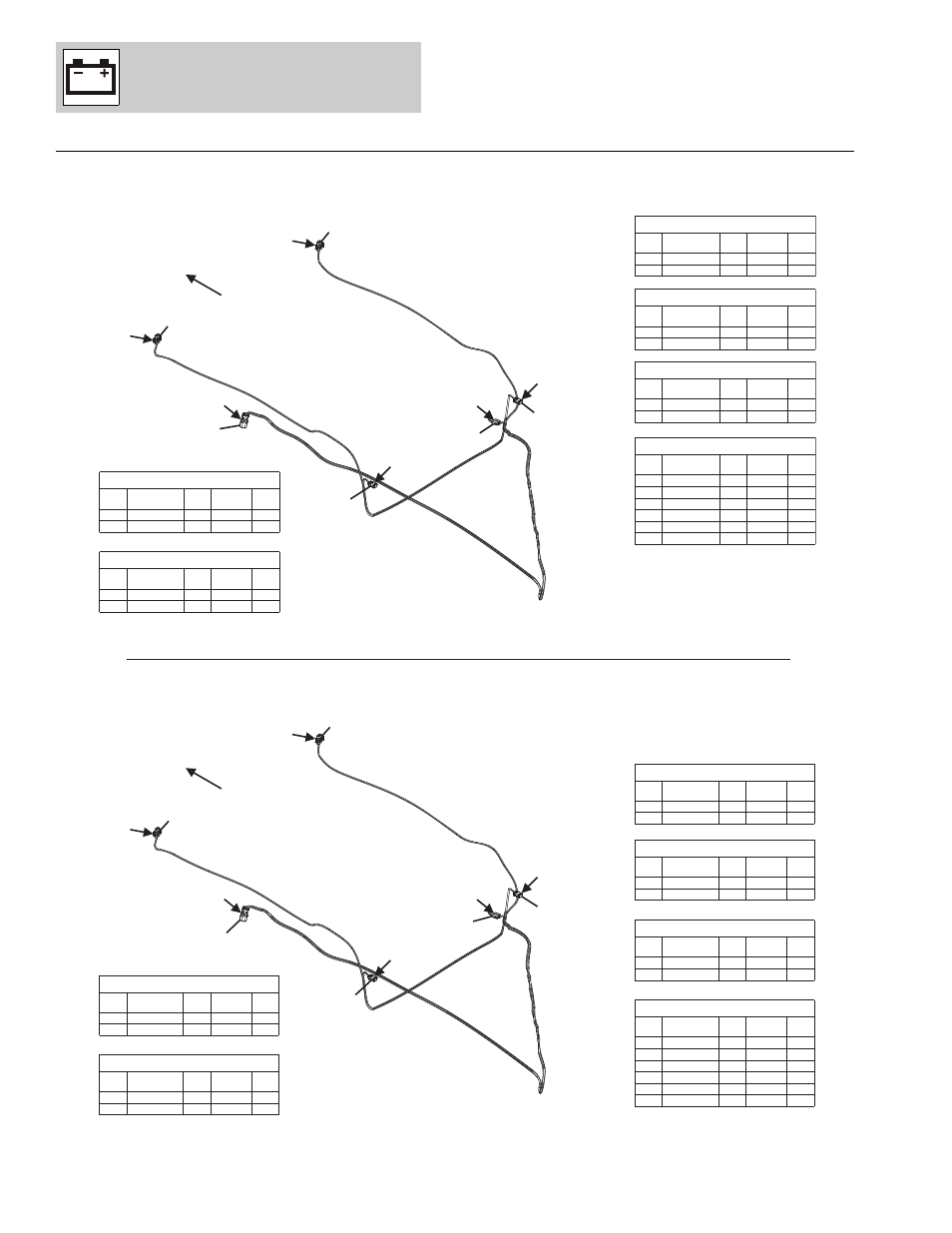

Figure 10-12 Roof Worklight Harness
LB106
LB105
X104
MS30
X103
X22
X106
X105
X104
MS109
X103
X22
1
2
2
3
3
4
101
102
102
102
102
103
X22
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-6 BLU 16 AWG GXL
2 000-8-3 BLK 16 AWG GXL
3 051-7 BLU 16 AWG GXL
4 000-8-2 BLK 16 AWG GXL
5 072-1 BLU 16 AWG GXL
6 000-8-1 BLK 16 AWG GXL
X104
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-7-1 BLU 16 AWG GXL
2 000-8-29 BLK 16 AWG GXL
MS30
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 072-1 BLU 16 AWG GXL
2 000-8-1 BLK 16 AWG GXL
X103
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-7-2 BLU 16 AWG GXL
2 000-8-30 BLK 16 AWG GXL
LB105
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-6-1 BLU 16 AWG GXL
2 000-8-27 BLK 16 AWG GXL
LB106
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-6-2 BLU 16 AWG GXL
2 000-8-28 BLK 16 AWG GXL
X106
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-6-2 BLU 16 AWG GXL
2 000-8-28 BLK 16 AWG GXL
X104
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-7-1 BLU 16 AWG GXL
2 000-8-29 BLK 16 AWG GXL
X103
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-7-2 BLU 16 AWG GXL
2 000-8-30 BLK 16 AWG GXL
X105
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-6-1 BLU 16 AWG GXL
2 000-8-27 BLK 16 AWG GXL
MS109
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 072-1 BLU 16 AWG GXL
2 000-8-1 BLK 16 AWG GXL
TO FRONT LEFT WORKLIGHT
TO REAR RIGHT WORKLIGHT
TO FRONT RIGHT WORKLIGHT
TO BEACON LIGHT
TO REAR LEFT WORKLIGHT
TO CAB HARNESS
X22
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE
1 051-6 BLU 16 AWG GXL
2 000-8-3 BLK 16 AWG GXL
3 051-7 BLU 16 AWG GXL
4 000-8-2 BLK 16 AWG GXL
5 072-1 BLU 16 AWG GXL
6 000-8-1 BLK 16 AWG GXL
TO CAB HARNESS
TO FRONT LEFT WORKLIGHT
TO REAR RIGHT WORKLIGHT
TO FRONT RIGHT WORKLIGHT
TO BEACON LIGHT
TO REAR LEFT WORKLIGHT
PAL6070
OPEN CAB
ENCLOSED CAB
FRONT OF
CAB
FRONT OF
CAB
