ELECTRICAL
G5-18A, 2505H, 25.5 31200725 10-28

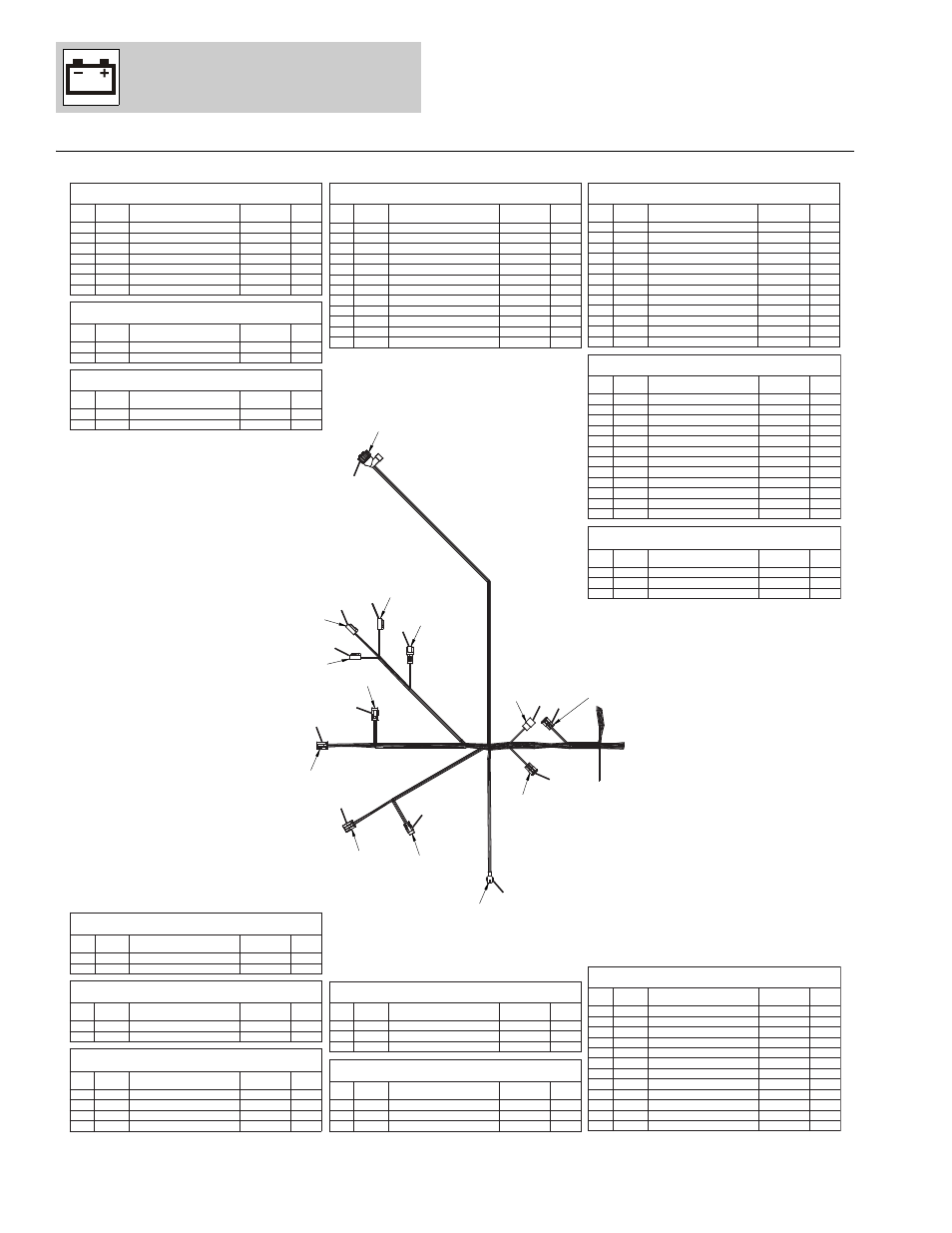

Figure 10-9 Frame Option Harness
1
CO301-J2
2
CO301-J1
HV175
3
HV173
HV176
4
5
X178
6
7
8
9
10
11
12
13
CO300-J2
CO300-J1
LB163
X294
MS114-2 MS114-1
MS114-3
LB163
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 BLK 000-10-3 GND 16 AWG GXL
2 WHT 071-12-2 LH TAIL 16 AWG GXL
3 WHT 008-2-4 LH BU 16 AWG GXL
4 WHT 071-5-3 LH TRN 16 AWG GXL
5 WHT 071-16-3 LH STOP 16 AWG GXL
6
7
HV176
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 083-2 TELE MODE 18 AWG GXL
2 BLK 000-9-11 GND 16 AWG GXL
HV173
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 082-1 LFT MODE 18 AWG GXL
2 BLK 000-9-8 GND 16 AWG GXL
HV175
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 083-1 TELE OUT 18 AWG GXL
2 BLK 000-9-10 GND 16 AWG GXL
X178
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 025-2 TELE CMD 18 AWG GXL
2
MS114-1
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
A BLK CABLE 13 CAN LO 18 AWG CABLE
B RED CABLE 13 CAN HI 18 AWG CABLE
C SHIELD CABLE 13 CAN S 18 AWG SHLD
MS114-3
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
A BLK CAN 1 LO 18 AWG GXL
B RED CAN 1 HI 16 AWG GXL
C
MS114-2
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
A BLK CAN 2 LO 18 AWG GXL
B RED CAN 2 HI 16 AWG GXL
C
CO301-J1
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 YEL 062-20 IGN 18 AWG GXL
2 BLK 00-9-13 GND 18 AWG GXL
3 WHT 076-9 LSI O/R 18 AWG GXL
4 WHT 025-2 TELE CMD 18 AWG GXL
5 WHT 007-3 DR FWD 18 AWG GXL
6 WHT 081-1 BM STATE 1 18 AWG GXL
7 WHT 082-1 LFT MODE 18 AWG GXL
8 WHT 082-2 LFT DWN 18 AWG GXL
9 WHT 083-1 TELE OUT 18 AWG GXL
10 WHT 083-2 TELE MODE 18 AWG GXL
11 WHT 080-1 FCN L/O 18 AWG GXL
12 WHT 085-1 LSI LP 18 AWG GXL
CO300-J1
CONN
POS
WIRE
COLOR
WIRE
LABEL GAUGE JACKET
1 YEL 062-25 IGN 18 AWG GXL
2 BLK 000-9-14 GND 18 AWG GXL
3 WHT 081-2 BM STATE 2 18 AWG GXL
4 WHT 008-1-3 DR REV 18 AWG GXL
5 WHT 076-8 LSI C/O 18 AWG GXL
6 WHT 076-7 JS C/O 18 AWG GXL
7 WHT 105-1 FNR L/O 16 AWG GXL
8
9
10
11
12
CO301-J2
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 086-1 +5V PRES SEN 18 AWG GXL
2 WHT 087-1 PRS SENSE 18 AWG GXL
3 BLK 088-1 AGND 18 AWG GXL
4
5
6
7
WHT 106-1 SEAT SW 1 18 AWG GXL
8
9
RED CAN 2 HI 16 AWG GXL
10 BLK CAN 2 LO 18 AWG GXL
11 WHT 084-1 TRANSMIT 18 AWG GXL
12 WHT 084-2 RECEIVE 18 AWG GXL
CO300-J2
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1
2
3
4
WHT 089-1 MOD CONFIG 18 AWG GXL
5 WHT 089-1 MOD CONFIG 18 AWG GXL
6
7
WHT 107-1 SEAT SW 2 18 AWG GXL
8
9
RED CAN 1 HI 16 AWG GXL
10 BLK CAN 1 LO 18 AWG GXL
11
12
X294
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 YEL 062-25 IGN 16 AWG GXL
2 WHT 084-2 RECEIVE 18 AWG GXL
3 WHT 084-1 TRANSMIT 18 AWG GXL
4 BLK 000-9-15 GND 16 AWG GXL
PY9160
