ELECTRICAL
G5-18A, 2505H, 25.5 31200725 10-24

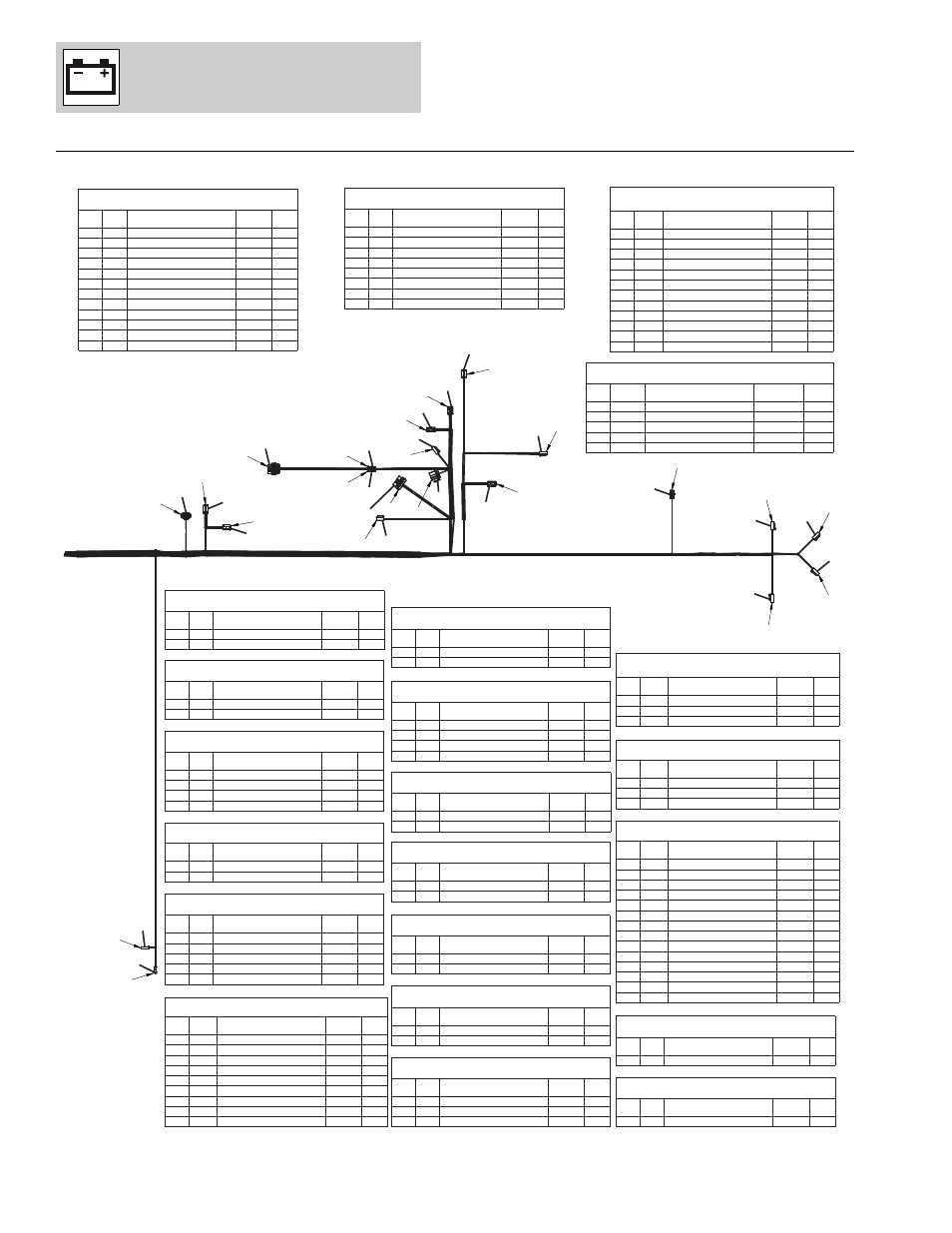

Figure 10-8 Frame Harness (Continued)
AH74
33
34
AH74-G
35
SN77
X98
JS76
36
37
38
X185
39
MS295-2
MS295-1
40
41
CO299-J2
CO299-J1
42
X83
X264
43
RL315
44
45
HV80 46
47
48
49
X94
X89
MS265
50
AH99
51
52
53
54
HV100
HV101
HV102
HV85
CO299-J1
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 YEL 062-6 IGN 16 AWG GXL
2 BLK 000-3-7 GND 16 AWG GXL
3 WHT 101-1 FAN CYCLE 16 AWG GXL
4 WHT 101-2 FAN DEMAND 16 AWG GXL
5
6
WHT 052-2 VEH SPD SEN 18 AWG GXL
7
8
WHT 101-3 FAN SPD 16 AWG GXL
9 WHT 101-4 FAN REV 16 AWG GXL
10 WHT 104-1 VAR SP CON 16 AWG GXL
11
12
WHT 52-3-1 HORN A 16 AWG GXL
X89
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 051-5 BOOM LP 16 AWG GXL
2 BLK 000-3-11 GND 16 AWG GXL
X94
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 076-4 SW QK CPLR 16 AWG GXL
2 WHT 076-5 SW QK CPLR 16 AWG GXL
3
4
X83
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 YEL 080-1 FCN L/O 16 AWG GXL
2 YEL 062-19 LSI IGN 16 AWG GXL
AH99
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 BLU 008-2-1 BU WRN 16 AWG GXL
2 BLK 000-3-14 GND 16 AWG GXL
X264
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 061-10 COND FAN 12 AWG GXL
2 WHT 073-8-2 AC COMP 16 AWG GXL
3 BLK 000-6 GND 12 AWG GXL
4 WHT 073-9 AC PRES 16 AWG GXL
5
HV80
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 076-3 F/R AUX 16 AWG GXL
2 BLK 000-3-6 GND 16 AWG GXL
HV101
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 014-1 TILT 16 AWG GXL
2 BLK 000-3-18 GND 16 AWG GXL
JS76
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 026-1 TOGGLE 16 AWG GXL
2 GRN 079-2 FT 16 AWG GXL
3 GRN 025-1 AUX 16 AWG GXL
4 GRN 079-3 FT 16 AWG GXL
HV85
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 GRN 055-2 AUX DCMP 16 AWG GXL
2 BLK 000-3-5 GND 16 AWG GXL
HV102
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 025-2 TELE 16 AWG GXL
2 BLK 000-3-4 GND 16 AWG GXL
HV100
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 GRN 055-1 AUX 16 AWG GXL
2 BLK 000-3-19 GND 16 AWG GXL
SN77
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 048-9 FUEL SENS 16 AWG GXL
2
3
BLK 000-3-9 GND 16 AWG GXL
MS265
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 RED CABLE 8 CAN HI 18 AWG CABLE
2 RED CABLE 10 CAN HI 18 AWG CABLE
3 BLK CABLE 8 CAN LO 18 AWG CABLE
4 BLK CABLE 10 CAN LO 18 AWG CABLE
5 SHIELD CABLE 8 CAN S 18 AWG SHLD
6 SHIELD CABLE 10 CAN S 18 AWG SHLD
7 SHIELD CABLE 9 CAN S 18 AWG SHLD
8 SHIELD CABLE 11 CAN S 18 AWG SHLD
9 BLK CABLE 9 CAN LO 18 AWG CABLE
10 BLK CABLE 11 CAN LO 18 AWG CABLE
11 RED CABLE 9 CAN HI 18 AWG CABLE
12 RED CABLE 11 CAN HI 18 AWG CABLE
X98
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 025-2 TELE 16 AWG GXL
2 WHT 026-4 FRM LDR SW 16 AWG GXL
3 WHT 070-1-22 LIGHTNG 16 AWG GXL
4 WHT 014-1 TILT 16 AWG GXL
5 WHT 026-5 FRM LDR SW 16 AWG GXL
6 YEL 062-3-3 F/R AUX 16 AWG GXL
7 BLK 000-3-10 GND 16 AWG GXL
8 GRN 055-2 AUX DCMP 16 AWG GXL
MS295-1
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
A RED CABLE 11 CAN HI 18 AWG CABLE
B BLK CABLE 11 CAN LO 18 AWG CABLE
C SHIELD CABLE 11 CAN S 18 AWG SHLD
MS295-2
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
A RED CABLE 14 CAN HI 18 AWG CABLE
B BLK CABLE 14 CAN LO 18 AWG CABLE
C SHIELD CABLE 14 CAN S 18 AWG SHLD
X185
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
A BLK 000-3-8 GND 16 AWG GXL
B RED 061-4 CLRSKY 16 AWG GXL
C RED CABLE 14 CAN HI 18 AWG CABLE
D BLK CABLE 14 CAN LO 18 AWG CABLE
E SHIELD CABLE 14 CAN S 18 AWG SHLD
F
G
H
YEL 062-7 IGN 16 AWG GXL
J
CO299-J2
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 102-1 HYD TMP 16 AWG GXL
2 WHT 102-3 HYD TMP 16 AWG GXL
3 BLK 102-4 HYP TMP GND 16 AWG GXL
4 WHT 052-3 VEH SPD 5V 18 AWG GXL
5
6
BLK 102-9 VEH SPD GND 18 AWG GXL
7
8
9
RED CABLE 9 CAN HI 18 AWG CABLE
10 BLK CABLE 9 CAN LO 18 AWG CABLE
11 WHT 084-3 PWR MGT XMIT 16 AWG GXL
12 WHT 084-4 PWR MGT RECEIVE 16 AWG GXL
N/C SHIELD CABLE 9 CAN S 18 AWG SHLD
NC
RL315
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 RED 061-2-4 RR PWR 16 AWG GXL
2 WHT 52-3-1 HORN A 16 AWG GXL
3
4
WHT 52-3 HORN 16 AWG GXL
5 BLK 000-4-9 GND 16 AWG GXL
AH74
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 WHT 52-2 HORN 16 AWG GXL
AH74-G
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 BLK 000-3-12 GND 16 AWG GXL
PY9130
