SECTION 3 - USER RESPONSIBILITIES AND MACHINE CONTROLS
3-9 – JLG Lift – 3120742
3. Rotate. (35/n35/40/n40/45 electric)
A three position ROTATE control switch permits rotation of
the platform when positioned to left or right.
4. Platform Leveling Override.
(35/n35/40/n40/45 electric)
A three position LEVEL control switch allows the operator
to compensate for any difference in the automatic self lev-
eling system by positioning the control switch to UP or
DOWN.
5. Lower Boom Lift.
Provides for raising and lowering of Lower Boom and
(Mid Boom on 40/n40/45 electric) when positioned to UP
or DOWN.
6. Upper Boom Lift.
Provides for raising and lowering of Upper Boom when
positioned to UP or DOWN.
7. Telescope. (35/n35/40/n40/45 electric)
Provides for extension and retraction of Upper Boom
when positioned to IN or OUT.
8. Swing.
The SWING control switch provides 360 degrees non-con-
tinuous turntable rotation. To activate SWING, position
switch to LEFT or RIGHT.
9. Circuit Breakers.
(March 1995 to Present)
The circuit breakers open (pop out) to indicate a short or
overload somewhere on the machine.
10. Battery Indicator and Hourmeter .
An hourmeter, installed in the upper portion of the Ground
Control Box, registers the amount of machine operating
time. The hourmeter registers up to 9,999.9 hours and
cannot be reset.

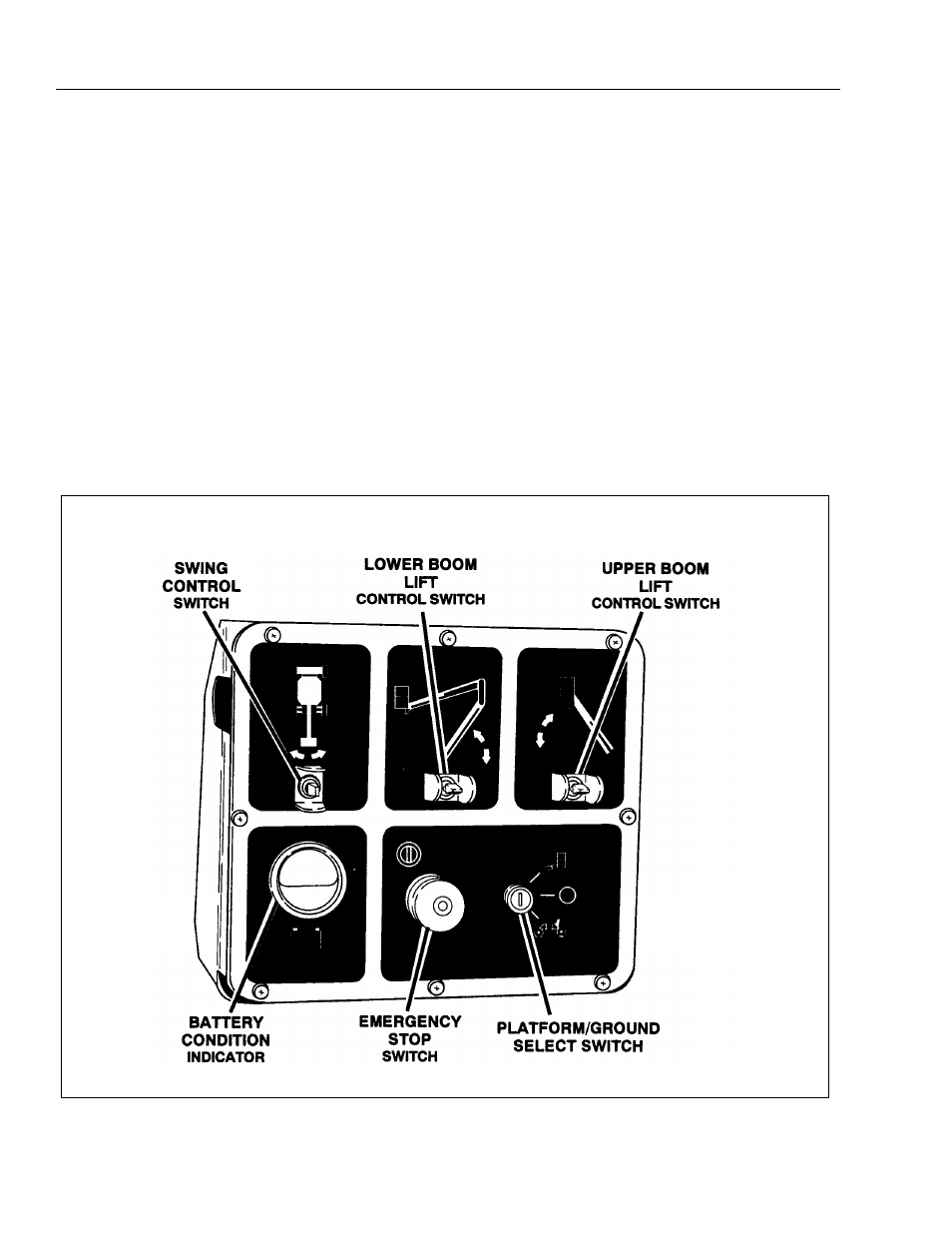

Figure 3-3. Ground Control Station, 30 electric. (Sheet 1 0f 4)
