SECTION 2 - PROCEDURES
3120696 – JLG Sizzor – 2-29
To Engage Torque Hubs
Engage (reverse) disconnect cap on both drive torque
hubs by removing two attaching capscrews, turning cap
around, then reinstalling and tightening capscrews.
2.27 LIMIT SWITCH ADJUSTMENT
PROCEDURE
Drive Cut-Out Switch
The drive cut-out switch is set at the following heights.
Drive Speed Cutout
Drive speed limit switch set to actuate as soon as possible
after the platform lifts beyond the stowed position and
begins to elevate. Switch must activate prior to a maxi-
mum platform height of 14 ft (4.2 m).

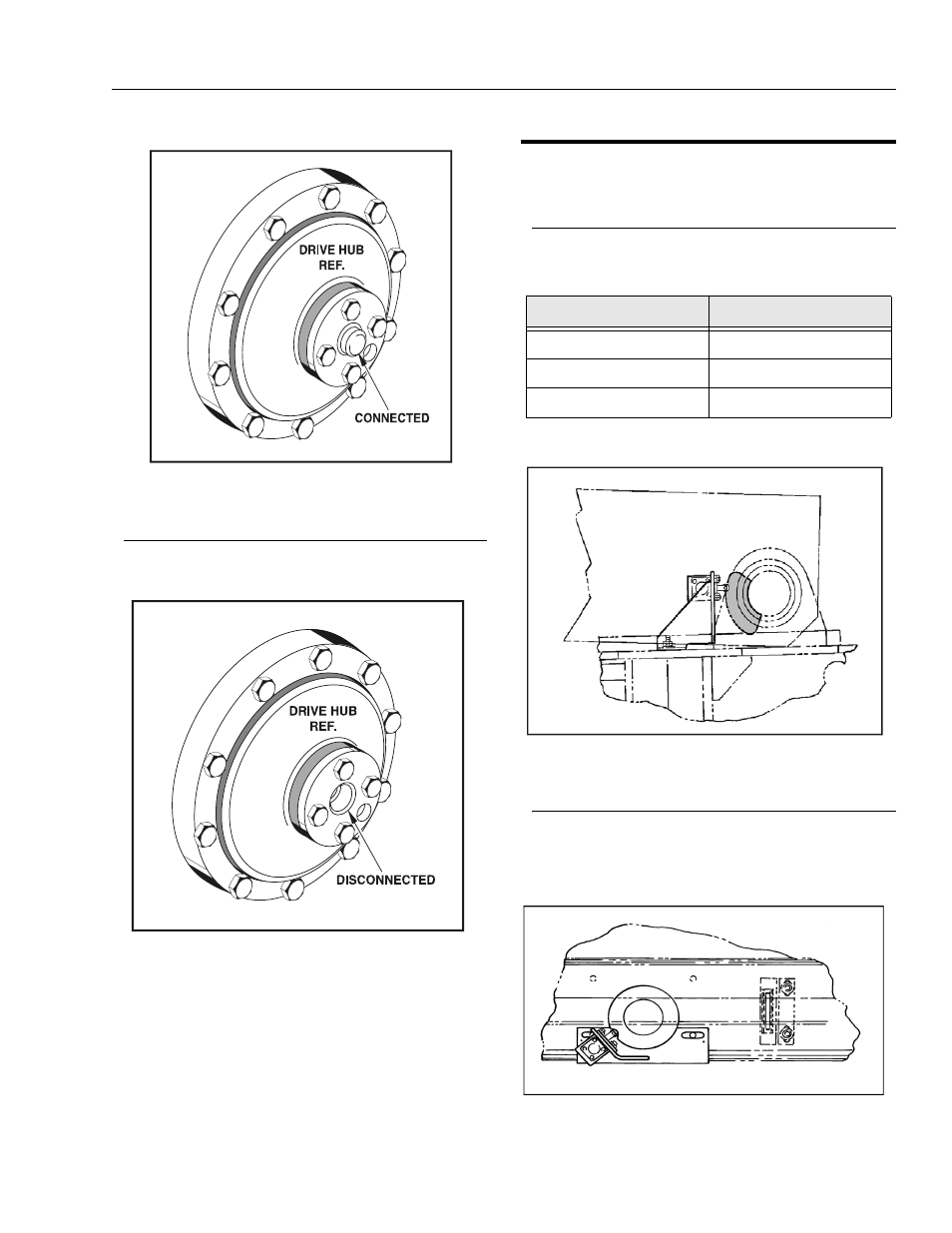

Figure 2-12. Drive Hub Engaged
Figure 2-13. Drive Hub Disengaged
Table 2-3. Drive Cutout Heights
Model Cut-Out
400 RTS Not Required
400 RTS w/31 x 15.5 - 15 Tires 32 ft (9.8 m)
500RTS 22 ft (6.7 m)
Figure 2-14. Drive Cut-out Switch
Figure 2-15. Drive Speed Cutout Switch
