SECTION 1 - SPECIFICATIONS
1-6 – JLG Sizzor – 3120696
1.8 SERIAL NUMBER LOCATIONS
For machine identification, a serial number plate is affixed
to the machine. On gasoline or diesel powered machines,
the plate is located on the right front side of the frame rail.
In addition, should the serial number plate be damaged or
missing, the machine serial number is stamped on the top
of frame between the front wheels.
1.9 CYLINDER SPECIFICATIONS
NOTE: All dimensions are given in inches (in), with the met-
ric equivalent, centimeters (cm), in parentheses.

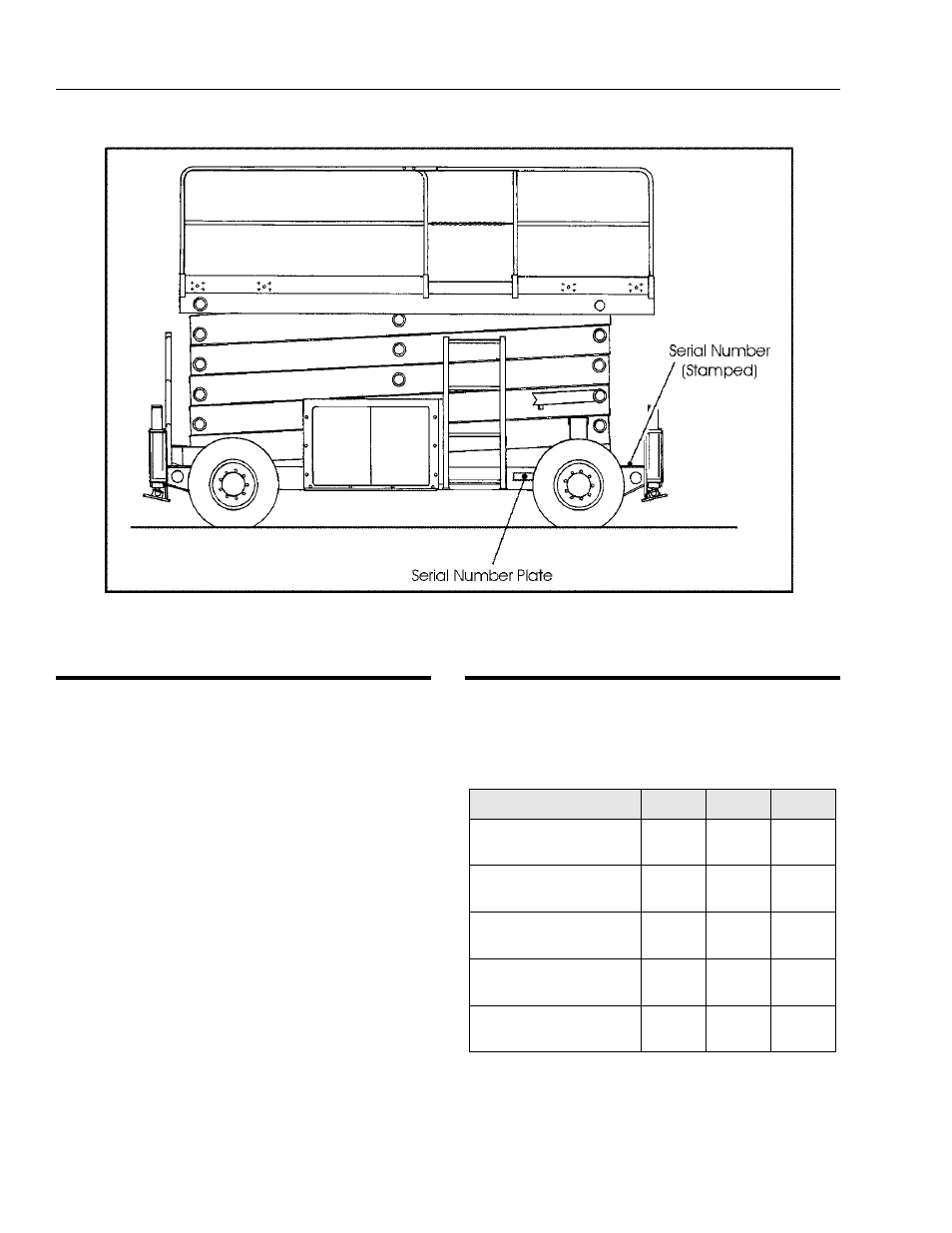

Figure 1-2. Serial Number Location
Table 1-4. Cylinder Specifications
Description Bore Stroke Rod Dia
Lift Cylinder
(400RTS/500RTS)
5.0
(12.7)
78.5
(199)
3.5
(8.9
Steer Cylinder 3.0
(7.6)
7.5
(19.05)
1.5
(3.8)
Lockout Cylinder
(Oscillating Axle)
3.0
(7.6)
3.75
(9.5)
1.25
(3.2)
Leveling Jack
Cylinder
3.0
(7.6)
18.75
(47.6)
2.0
(5.0)
Traversing Platform Cylinder 1.5 (3.8) 48
(121)
1.00
(2.5)
