SECTION 2 - PROCEDURES
2-28 – JLG Sizzor – 3121103
7. Remove dowel pins, springs, and spring retainer
from housing.
NOTE: Not all models use the same number of springs or
spring pattern. Record this information for assembly
purposes.
8. Remove retaining ring from housing.
9. Remove shaft by pressing or using a soft mallet on
male end of shaft.
10. Remove retaining ring and bearing from shaft.
11. Press rotary oil seal from housing.
Assembly
NOTE: Lubricate all rubber components from repair kit with
clean hydraulic fluid of the type used in the system.
1. Clean all parts thoroughly before assembly.
2. Press new rotary oil seal into housing. Note direction
of seal.
3. Install new bearing and retaining ring on shaft.
4. Insert shaft assembly and retaining ring in housing.
5. Insert dowel pins, spring guide, and springs in hous-
ing.

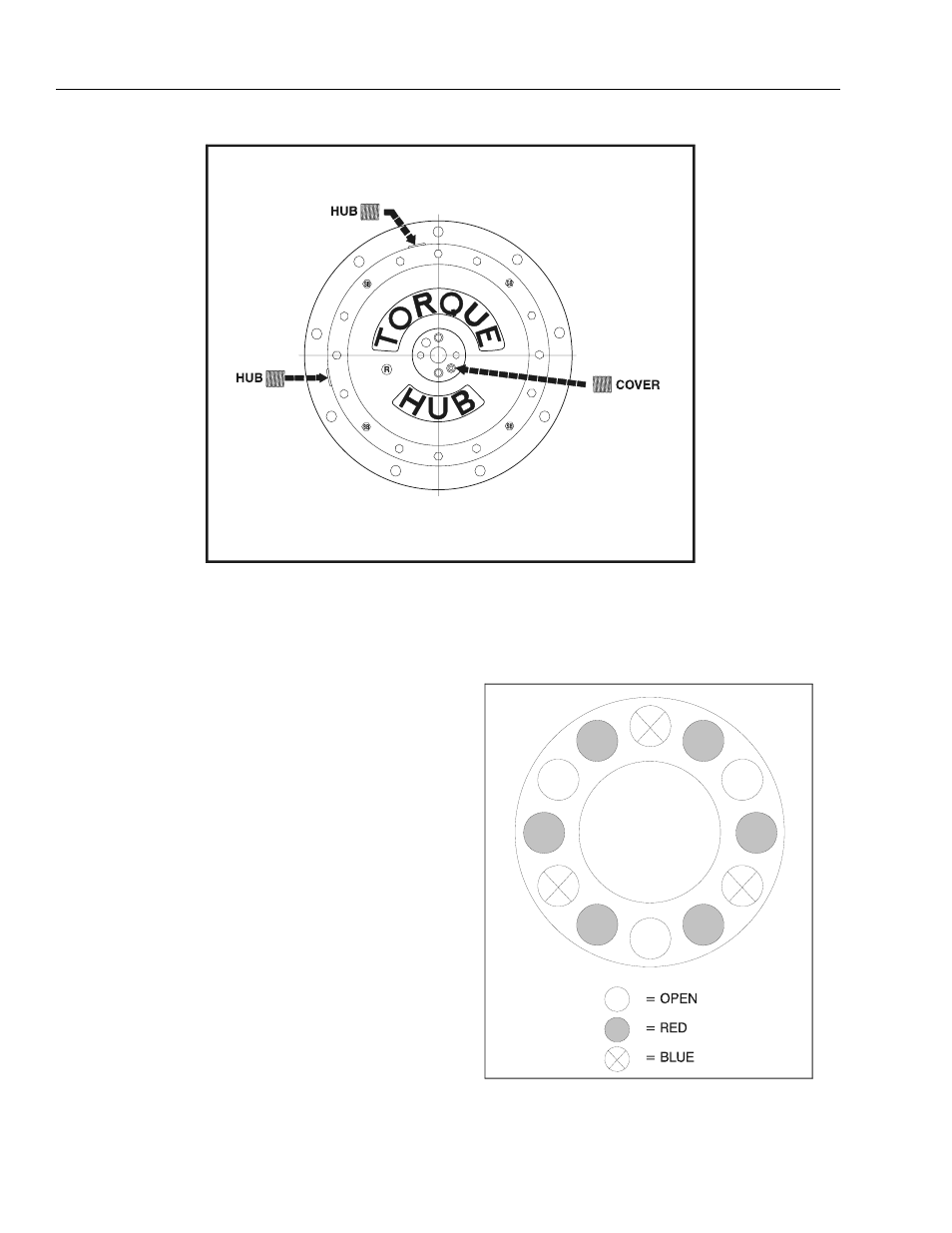

Figure 2-11. Torque Hub Cover Pipe Plug Alignment
Figure 2-12. Spring Loading
