Installation
New Brunswick Excella® E-5 Open Air Shaker
English (EN)
12
1. Using the 7/32 inch hex wrench provided, remove the four Allen head platform screws from the bearing
housing spill cover. Set them aside for reuse.

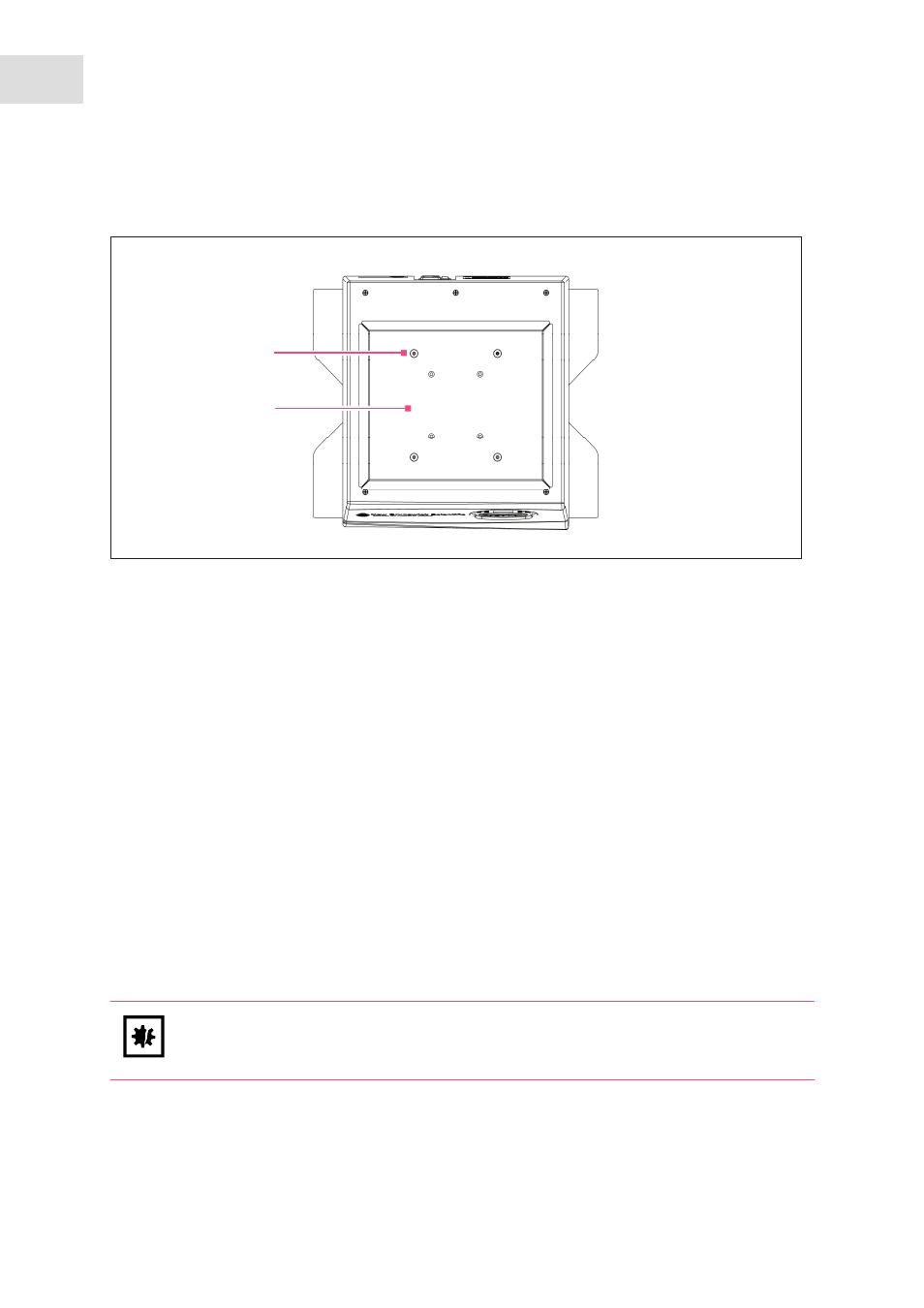

Abb. 4-1: Platform installation (top view)
Fig. 4-1: Platform installation (top view)
2. Place the selected platform on the spill cover. Align the mounting holes of the platform with the platform
screw locations in the spill cover.
3. Insert the four Allen head platform screws previously removed, and tighten them with the 7/32 inch hex
wrench provided to secure the platform.
4.3 Install flask clamp
Flask clamps purchased for use with universal platforms require installation (see Parts and accessories on
p. 31). Clamps are installed by securing the base of the clamp to the platform with the correct type and
number of screws. All clamps are shipped complete with hardware.
Clamps for 2 L, 2.8 L and 4 L flasks are shipped with an additional girdle to keep the flasks in place. The
girdle is an assembly of springs and sections of rubber tubing. One girdle is already in place on the clamp,
the other is packed separately.
1 Platform screw 2 Spill cover
NOTICE! Damage to shaker
 Do not over fill flasks.
1
2
