4 Installation
Concentrator plus / Vacufuge® plus — Operating manual
1. Remove packaging from the emission condenser.
2. Remove red cap from the upper connection.
3. Screw the angle connection sideways into the emission condenser.
4. Connect the pump outlet with the connection on the side of the condensate extractor using
the hose.

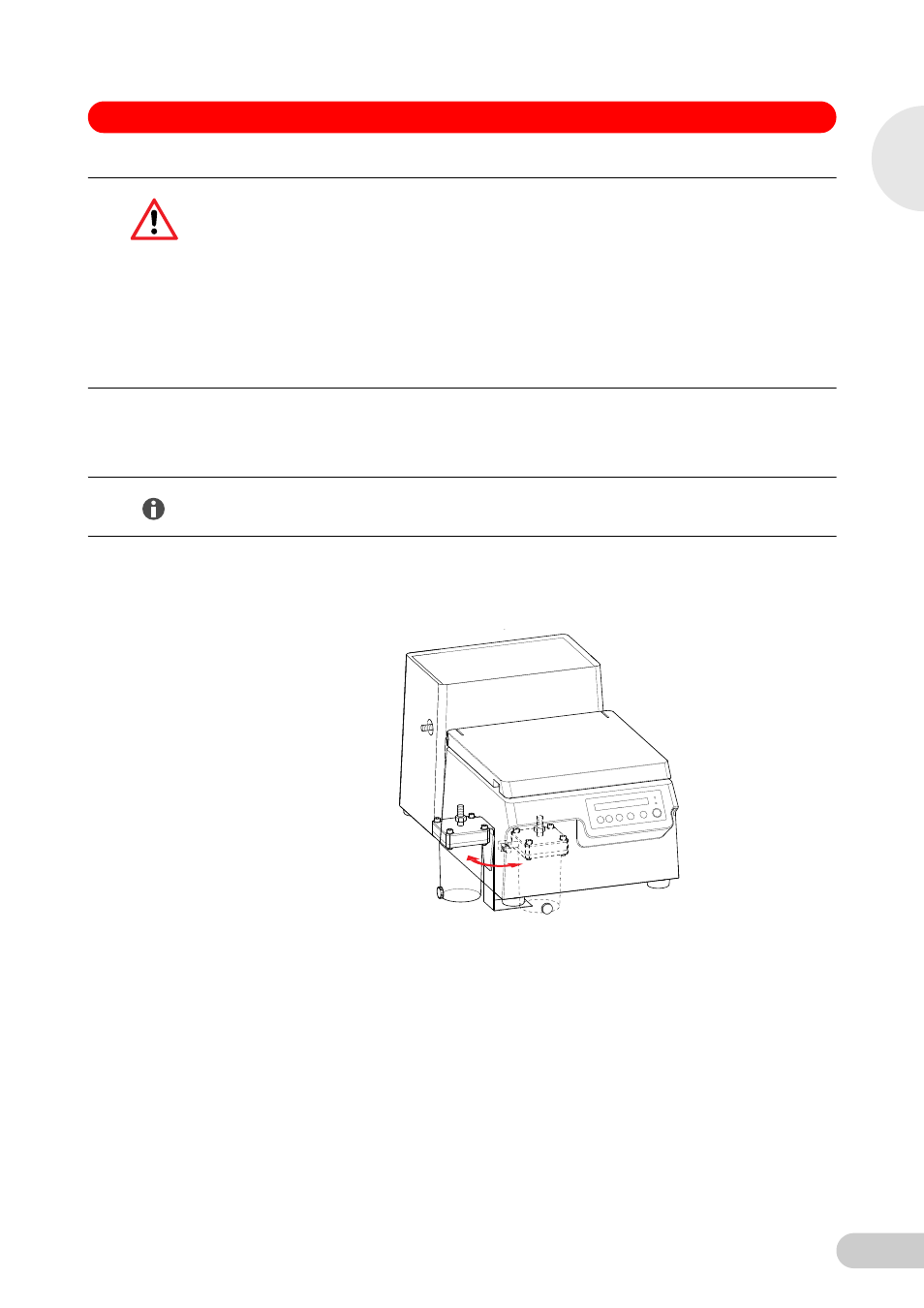

5. Attach the emission condenser from the side or from the front below the front left foot of the
device.
6. You can install a filter at the upper connection of the emission condenser. The overpressure
at the pump outlet of the complete system must not exceed 1 bar.
4.3.3 Complete system: Connecting gel dryer
Requirement
• 1 connecting hose (length: max. 50 cm, inner diameter: 8 mm, chemical resistant and suitable
for vacuum applications).
1. Screw the hose connection supplied (size: G1/4 ") into the thread of the stop valve on the
left-hand side of the device.
2. Connect the gel dryer to the hose connection, using the connecting hose.
WARNING!
Warning! Risk of injury from overpressure.
Overpressure in the exhaust gas line (e.g. from closed taps or blocked pipes) can cause the pipe
to burst.
Only use pipes with a sufficiently large cross section.
Always keep the exhaust gas line free
Do not place any objects on the exhaust gas lines.
Do not flex the exhaust gas line.
Do not fit any hose clamps or valves to the exhaust gas lines.
Note the maximum pressures and differential pressures permitted (see p. 37).
Hint!
There must be a fall from the pump outlet to the emission condenser inlet to prevent liquid from
collecting in the hose.
