Attaching the display to an arm stand
49
Attaching the display to an arm stand
The panel, standard attached to the tilt & swivel foot, is compatible with
the VESA 100 mm standard. So it can be used with an arm stand
according to the VESA 100 mm standard.
Therefore, the tilt & swivel foot must be removed from the panel.
Important:
• Use an arm that is approved by VESA (according to the VESA 100
mm standard).
• Use an arm that can support a weight of at least 13 kg (28.66
lbs).
To attach the display to an arm stand:
1.
Put the display face down on a clean and soft surface. Be careful
not to damage the panel screen.
2.
Remove the tilt & swivel foot cover.
3.
Remove the small screw (A) fixing the small plastic cover on top of
the foot. Next, remove the small cover itself.

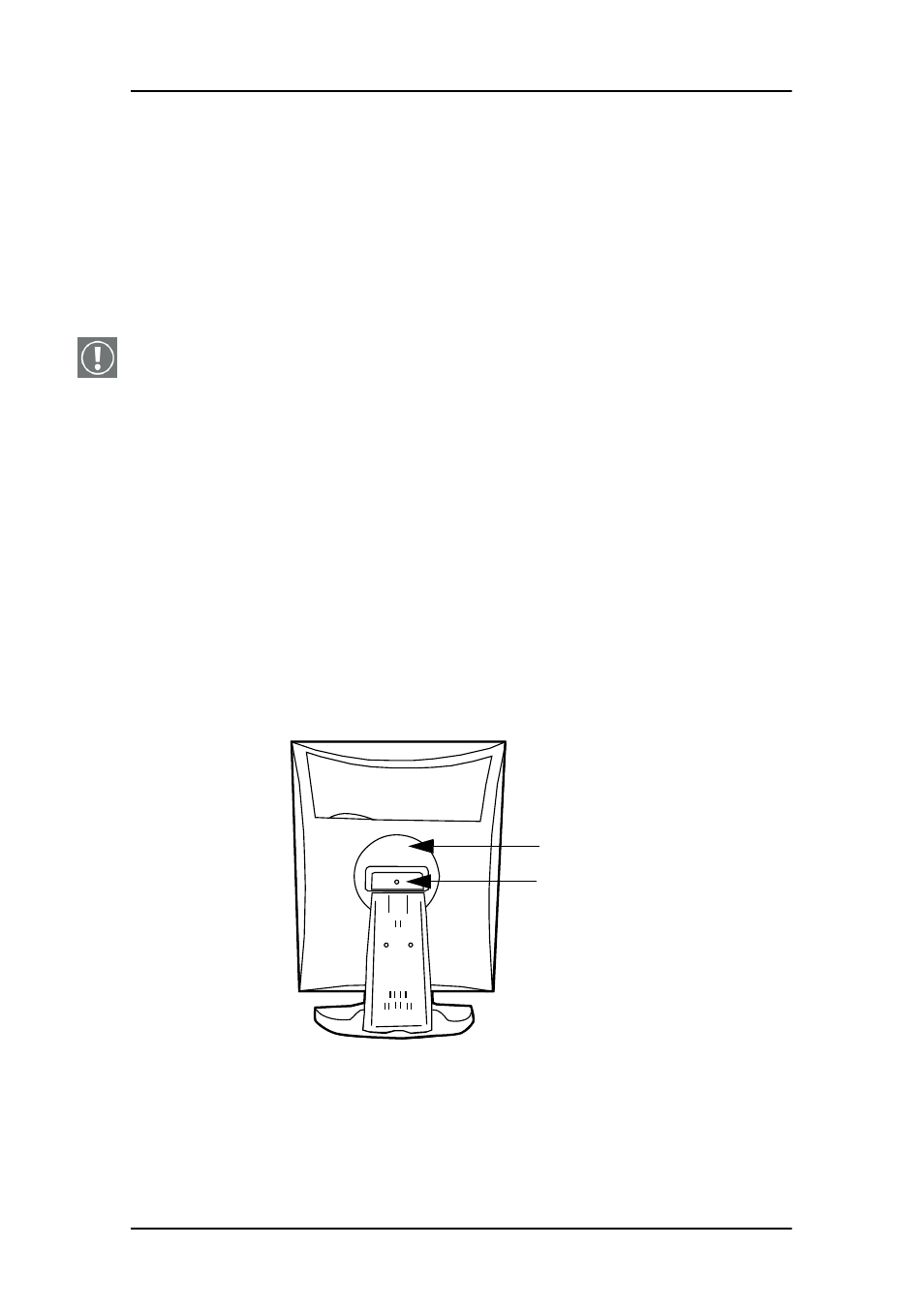

Figure 18: Display with tilt & swivel foot cover removed
4.
Unscrew the 2 screws fixing the round plastic cover (B).
5.
Lift up the round plastic cover.
A
B
