INSTALLATION INSTRUCTIONS
TOP RACK BASKET SUPPORT PART #TBS2504-2
451 SMART CAR
PARTS LIST
1- ARIES TOP RACK BASKET SUPPORT
1- DOWN TUBE
4- 10MM BOLTS
4- 10MM LOCK WASHERS
4- I bolts (used in riv nuts and tie downs)
INSTALLING THE TOP RACK BASKET SUPPORT TO THE REAR BASKET
1. Remove the plastic hole plug located at the rear top of the basket place the down
tube in the hole and secure it with the bolts and lock washers (hand tighten)
2. Take the Top Rack Basket Support and insert within open slotted holes. Use the
bolts and washers supplied in the kit once you have aligned the Top Rack Support.

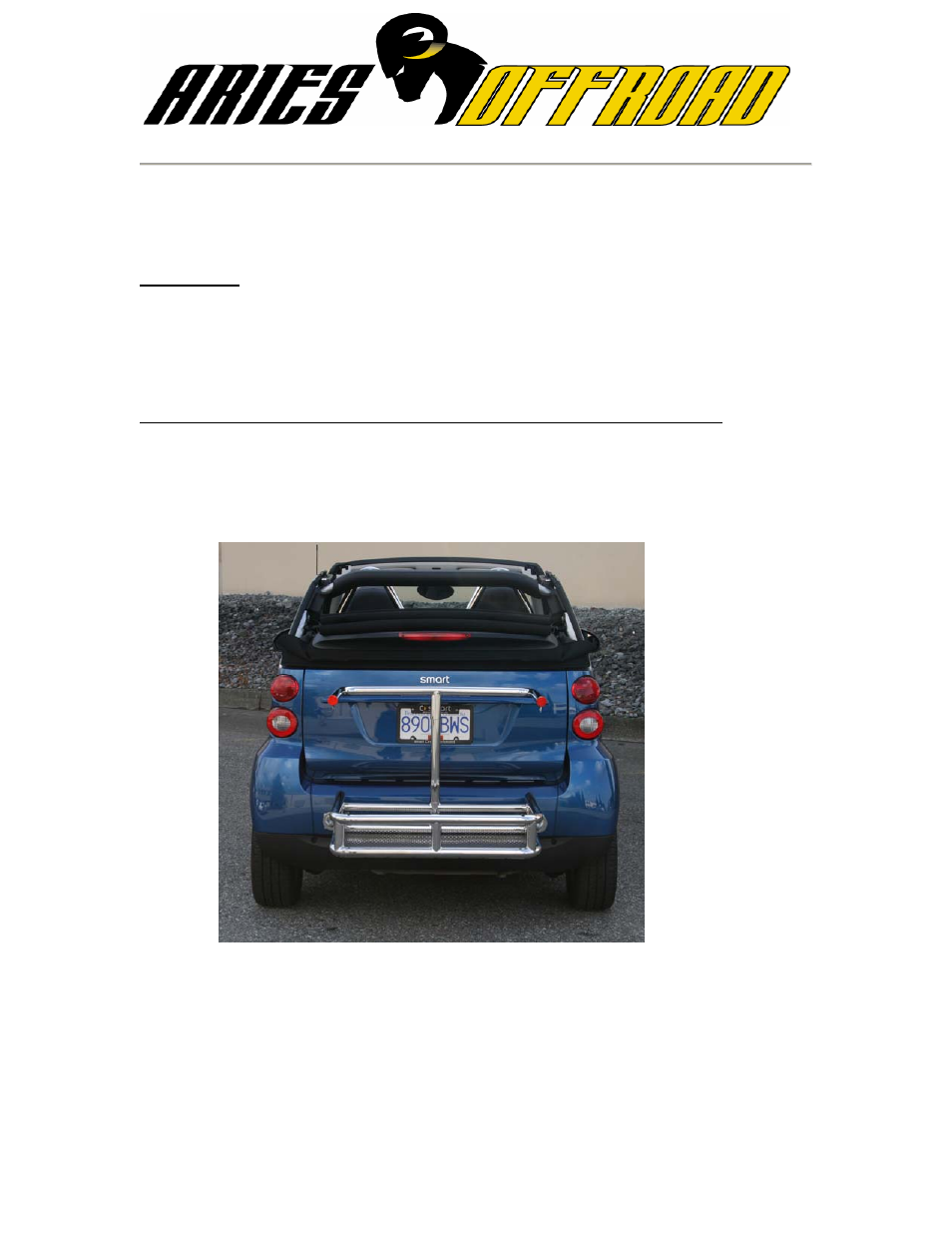

3. Tighten all fasteners. Diagram 1 shows finished product
Diagram 1
