Aries Automotive SMBOLT-HK User Manual
Installation instructions
Page 1 of 1
10/28/2009)
PARTS LIST:
Qty Description
Qty Description
1
21mm x Tow Thread Bolt
2
8mm Flat Washers
1
8mm x 30mm Bolt (Mate)
1
8mm Lock Washers
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.

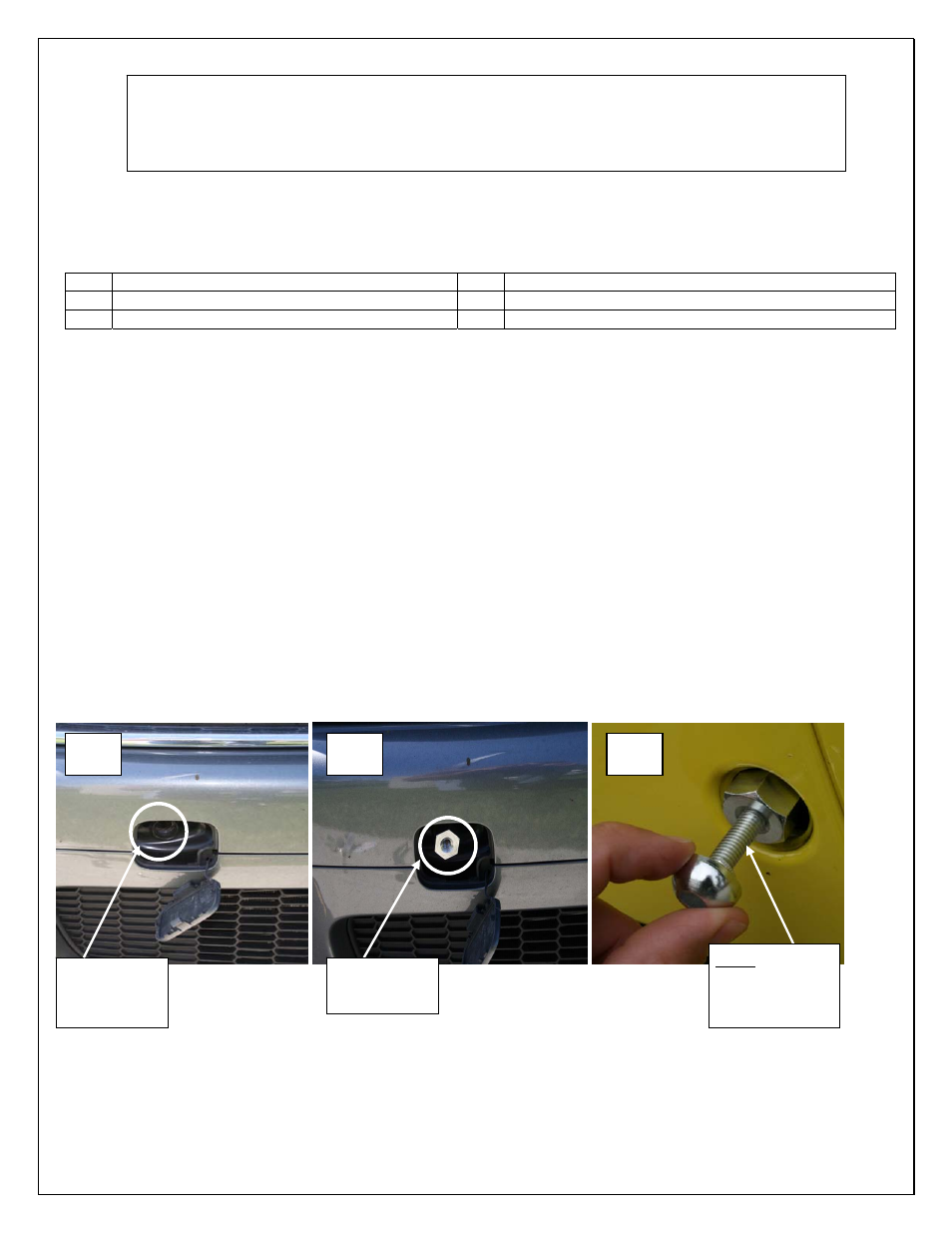

2. Carefully remove plastic cap located on front (or back) bumper of vehicle (Fig 1).
3. Insert 21mm hex head x thread bolt into exposed hole. Tighten with 21mm socket (Fig 2).
4. Attach bracket, or plate using the 8MM mating bolt, lock washer and washer. Add 8MM
Washers if needing to extend the 21mm hex head out from bumper (Fig 3).
INSTALLATION INSTRUCTIONS
PART #SMBOLT HK
02-2010 MINI COOPER / 97-2010 SMART CAR / BMW
Fig 1
Fig 3
Fig 2
21mm Tow
Thread Bolt
Note: Shown
without 8mm
washers and
Bracket
Location for
21mm Tow
Thread Bolt
