6. Level and adjust the light bar, tighten all hardware, Install is now complete.

7. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment
, wax this product after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives
that could damage the finish.

Page 2 of 2









































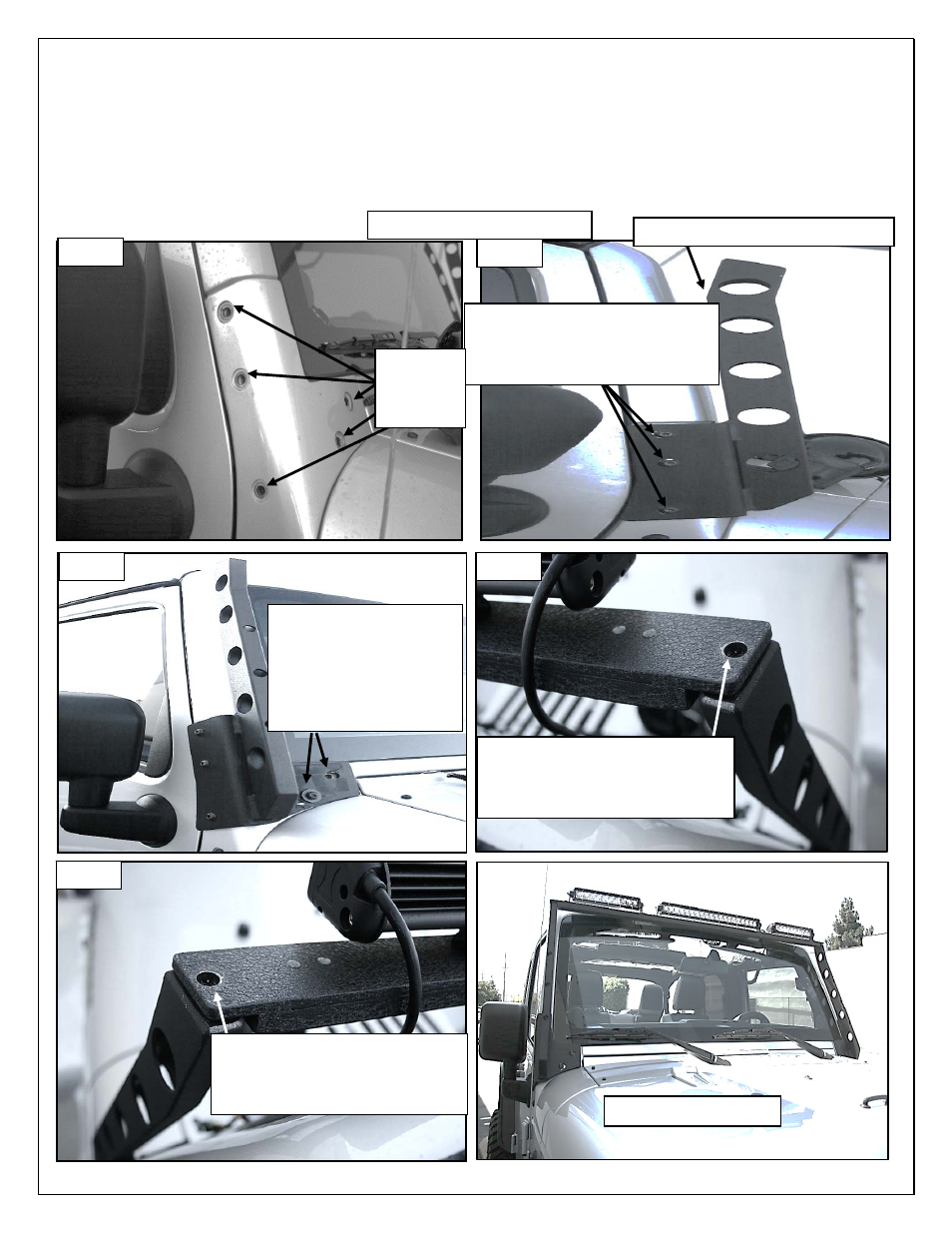

Fig 1

Fig 2

Fig 2A

Passenger/right side shown

Fig 3

Secure to side pillar with
(3) 8mm x 30mmbutton head bolts
(3) 8mm x 16mm OD flat washers
(3) 8mm lock washers

Factory
Torx
bolts
removed

Passenger/right side pillar bracket

Secure to front with
(2) 8mm x 30mm button
head bolts
(2) 8mm x 24mm OD flat
washers
(2) 8mm lock washers

Secure to side pillar with
(1) 8mm x 25mm button head bolts
(1) 8mm x 16mm OD flat washers
(1) 8mm lock washers

Fig 3A

Secure to side pillar with
(1) 8mm x 25mm button head bolts
(1) 8mm x 16mm OD flat washers
(1) 8mm lock washers

Installation complete
