Aries Automotive 4490 User Manual
Installation instructions

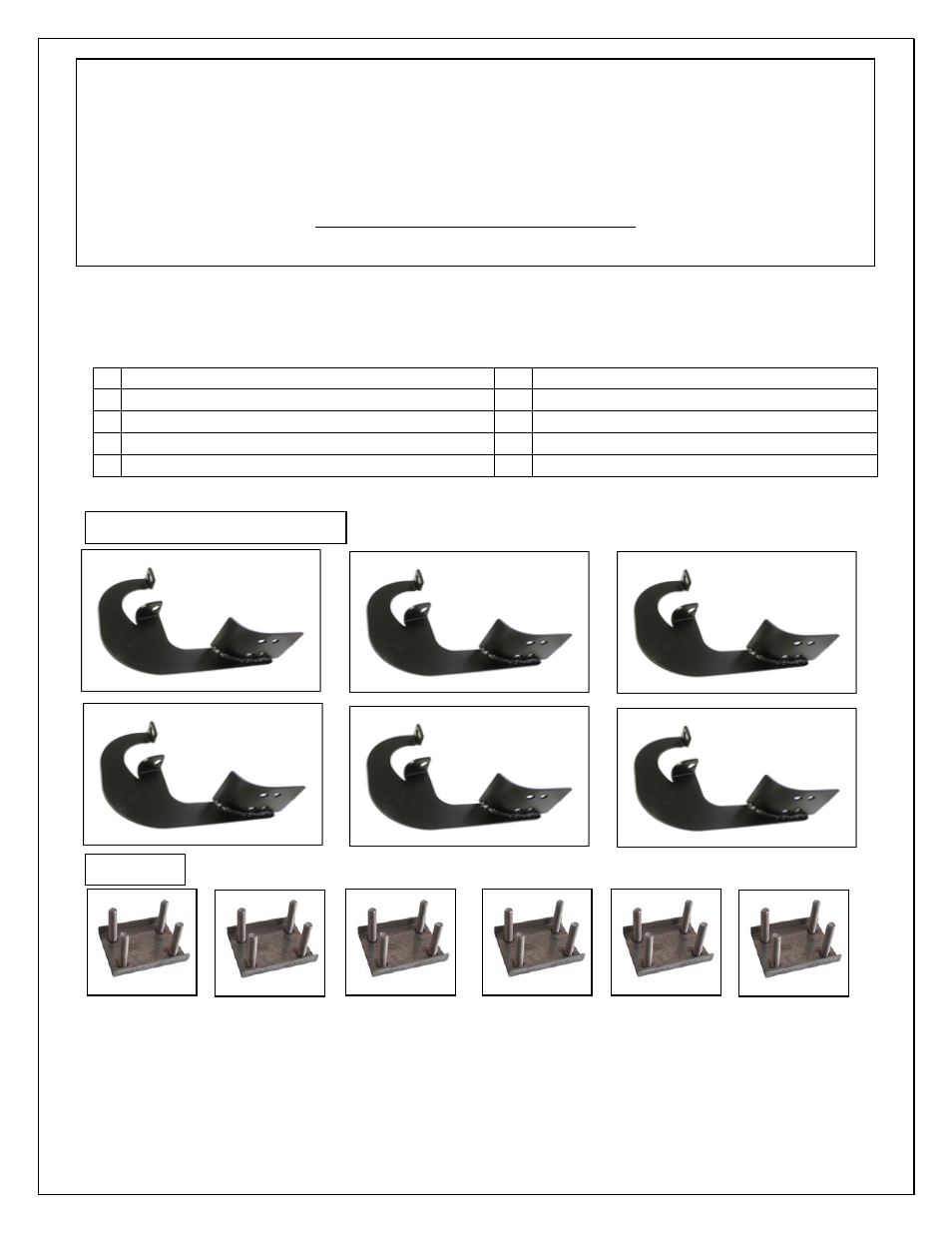

PARTS LIST:
6 Driver/Passenger Mounting Brackets
14 8mm Lock washers
6 6mm Bolt Plates
6 8mm x 1.25P Hex Nut
24 6mm Flat Washers
14 8mm Flat washers
24 6mm Lock Nut
12 8mm x 30mm x 1.25P Hex bolt
6 8mm x 1.25P Clip nuts
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION. DO NOT ATTEMPT INSTALLATION ALONE;
PERSONAL INJURY OR DAMAGE TO THE TRUCK MAY RESULT.
Driver/Passenger Mount Brackets
Bolt Plates
INSTALLATION INSTRUCTIONS
2002-06 AVALANCHE-W/ CLADDING 2003-13 AVALANCHE-W/OUT CLADDING
2005-13 SUBURBAN XL (Excl. Z71 & Hybrid) 2005-13 Tahoe-4dr (Excl. Z71 & Hybrid)
2005-13 YUKON XL (Excl. Z71 & Hybrid) 2005-13 Yukon-4dr (Excl. Z71 & Hybrid)
2007-14 SILVERADO/SIERRA 1500/2500/3500 CREW CAB, 7
2007-14 SILVERADO/SIERRA 1500/2500/3500 REG CAB, 7
(Excluding Diesel models with Def. tanks)
PART# 4490
Page 1 of 4 10/22/13
