Aries Automotive TB 235017 - Manual (Page 4)

4”ROUND SIDE BAR
DODGE RAM 1500 QUAD CAP 09-13
Page 4 of 4 3/25/11 Rev3(DP)

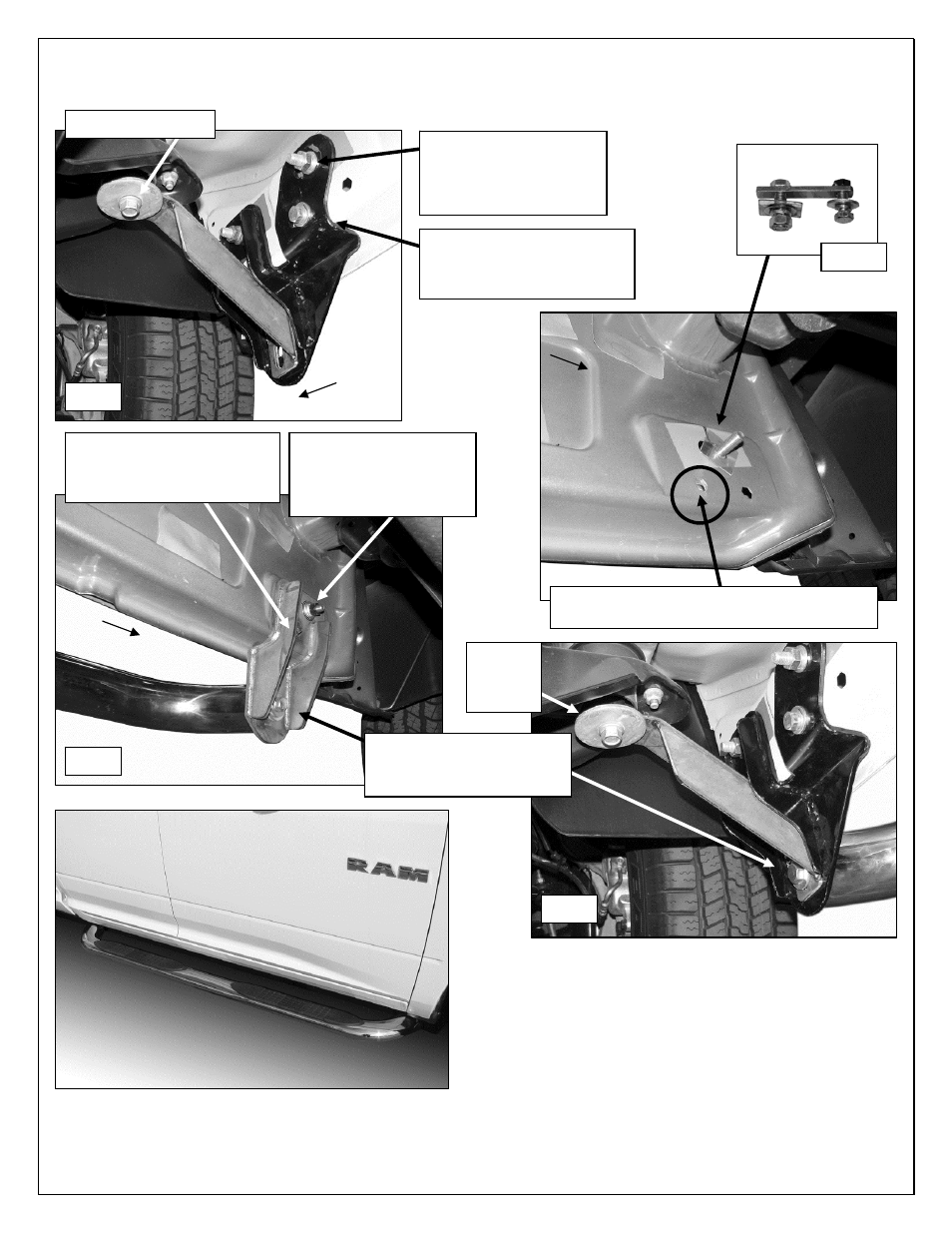

Complete Installation
PASSENGER SIDE INSTALLATION PICTURED
Fig 2
Fig 4
Fig 5
Rear
(Fig 3) Rotate Bolt and Nut plate to line up
the Nut with this hole in body panel
(2)10mm x 50mm Hex Bolt
(2)10mm Flat Washer
(2)10mm Lock Washer
(1) 10mm x 35mm Hex Bolt
(1) 10mm Lock Washer
(1) 10mm Flat Washer
(1) Bolt and Nut Plate
(2) 12mm Hex Nut
(2) 12mm Lock Washer
(2) 12mm Flat Washer
Fig 1C
Rear
Front
(1) Bolt and Nut Plate
(2) 12mm Hex Nut
(2) 12mm Lock Washer
(2) 12mm Flat Washer (1) 10mm x 35mm Hex Bolt
(1) 10mm Lock Washer
(1) 10mm Flat Washer
Factory body bolt
Factory
body
bolt
