Aries Automotive 235016TB-2 - Manual

PARTS LIST:
Qty Description Qty Description
1 Driver/Left Sidebar 4 1/2” X 1-1/2” OD x 1/8" flat washers
1 Passenger/Right Sidebar 4 12mm x 40mm Bolt/10mm Nut Plates
1 Driver/Left Front Mounting Bracket 2 12mm x 40mm Bolt Plates
1 Passenger/Right Front Mounting Bracket 6 12mm x 32mm OD x 3mm Flat Washers
1 Driver/Left Front Support Bracket 6 12mm Lock Washers
1 Passenger/Right Front Support Bracket 6 12mm Hex Nuts
1 Driver/Left Rear Mounting Bracket 6 12mm Plastic Retainers
1 Passenger/Right Rear Mounting Bracket 4 10-1.50mm x 35mm Hex Bolts
4 1/2” x 2” Hex Bolts 4 10mm x 30mm OD x 2.5mm flat washers
4 1/2” Lock Washers 4 10mm Lock Washers
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION.
2. Starting at the passenger side-front of the vehicle, remove the tape covering the factory oval holes in
the inner body panel located by the front tire.
3. Select (1) 12mm Bolt Plate and partially thread a Plastic Retainer onto it, (Fig 1A). Insert the Bolt Plate
into the oval hole, (Fig 1B). Once the Bolt Plate is inserted, hold the Bolt end with one hand and tighten
the Plastic Retainer with your other hand until it is tight against the body panel. IMPORTANT: The
Plastic Retainer is designed to prevent the Bolt Plate from falling into the body cavity and to aid in
installing the Mounting Bracket.
Page 1 of 3

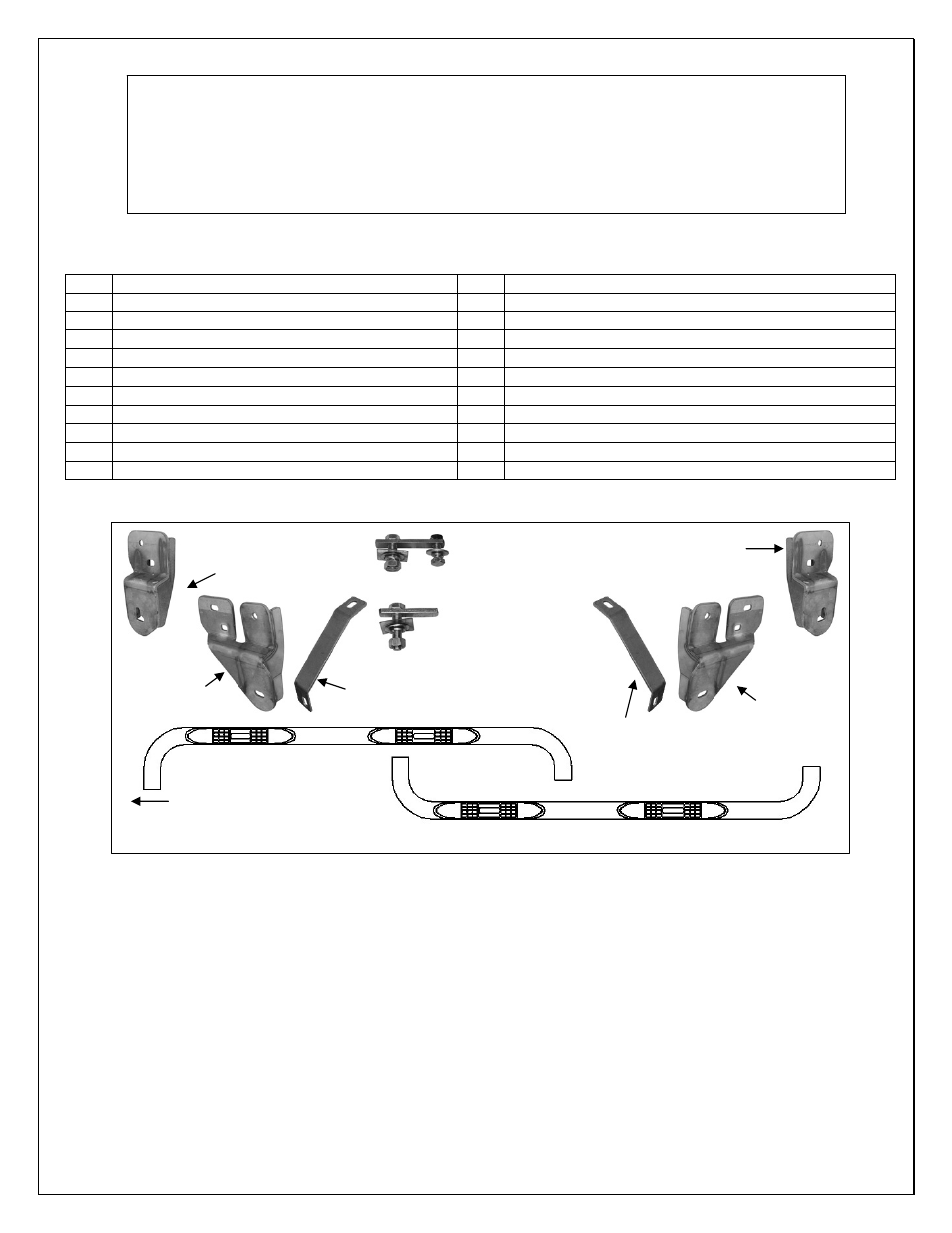

Passenger Side
Rear Mounting
Bracket
Passenger
Side Front
Mounting
Bracket
Driver Side
Rear
Mounting
Bracket
Driver Side
Front
Mounting
Bracket
12mm x 40mm Bolt/10mm Nut
Plate (pictured with Plastic
Retainer installed for example)
12mm x 40mm Bolt Plate
(pictured with Plastic
Retainer and hardware)
Passenger Side Front
Support Bracket
Driver Side Front
Support Bracket
Passenger/Right Sidebar
Driver/Left Sidebar
Front of Sidebar (NOTE: End
of tube slightly longer in front)
INSTALLATION INSTRUCTIONS
2009-12 DODGE RAM 1500 CREW CAB
(EXCLUDES VEHICLES W/DIESEL EXHAUST FLUID SYSTEMS)
PART# 235016TB / 235016-2
