Aries Automotive 202015-2 User Manual
Installation instructions

10mm x 24mm OD x 2mm Flat Washers
10mm Lock Washers
10-1.25mm x 25mm Hex Bolts
12-1.75mm x 43mm Bolt Plate
(2) 12mm x 43mm
4
Page 1 of 4

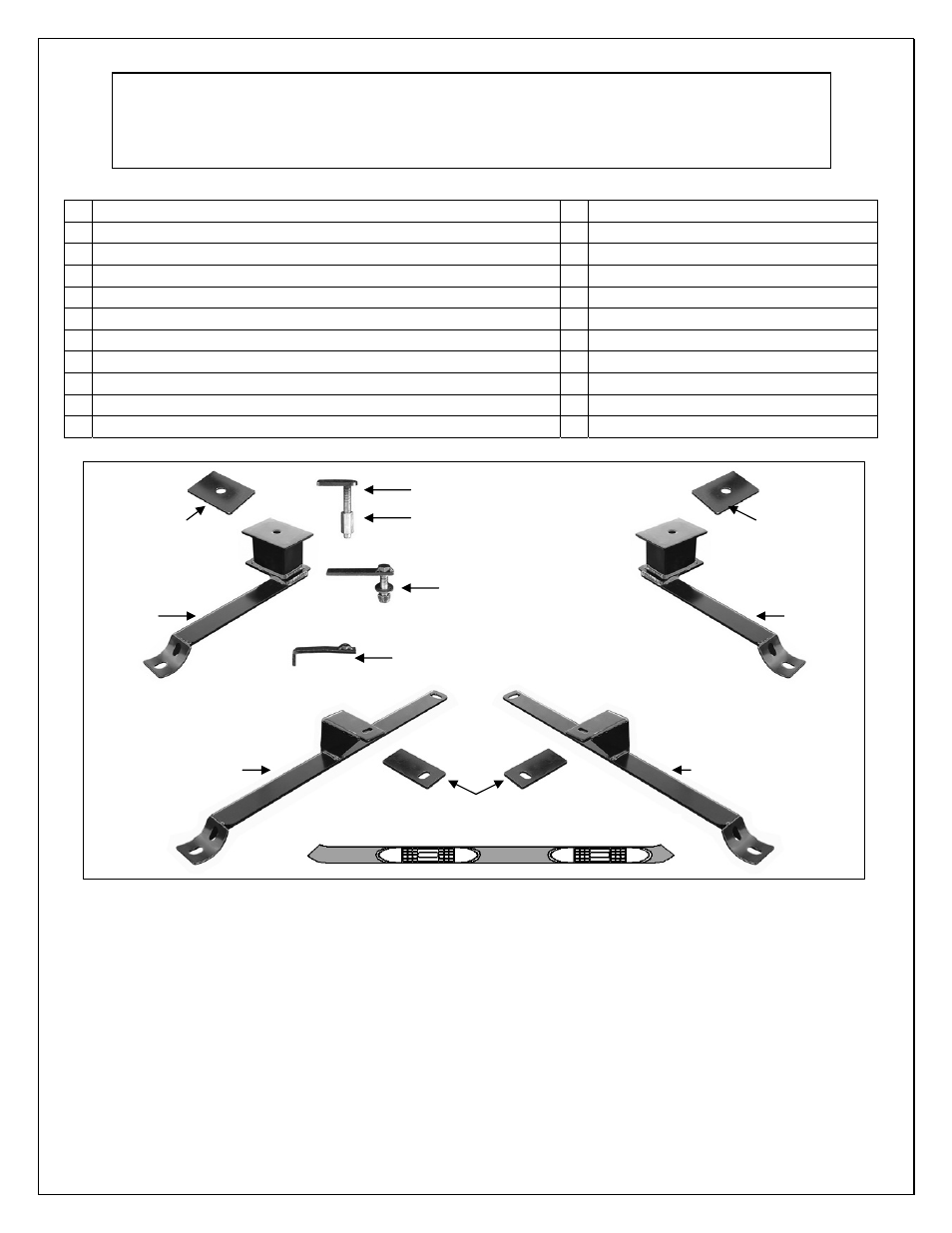

PARTS LIST:
1
Driver/Left Sidebar
2
12mm x 32mm OD x 3mm Flat Washers
1
Passenger/Right Sidebar
2
12mm Lock Washers
1
Driver/Left Front Mounting Bracket
2
12mm Hex Nuts
1
Passenger/Right Front Mounting Bracket
8
1
Driver/Left Rear Mounting Bracket
8
1
Passenger/Right Rear Mounting Bracket
8
2
90mm x 40mm Spacers (Use on 2011 & 12 Front Bracket Only) 2
6mm Nut Plate
100mm x 70mm Spacers (Use on 2011 & 12 Rear Bracket Only) 2
6-1.0mm x 30mm Hex Bolts
2
12mm Oversize Hex Nuts (Tall)
2
6mm x 18mm OD x 1.6mm Flat Washers
2
2
6mm Lock Washers
2
12-1.75mm x 90mm Bolt Plate
Rear Bracket
Spacer (use
on 2011 &12
vehicles only)
Rear Bracket
Spacer (use
on 2011 & 12
vehicles only)
(2) 12mm x 90mm Bolt Plates
(2) 12mm Oversized
(Tall) Hex Nuts
Passenger/Right
Rear Mounting
Bracket
Driver/Left Rear
Mounting
Bracket
Bolt Plates
(2) 6mm Nut Plates
Front Bracket
Spacers
Passenger/Right Front
Mounting Bracket
Driver/Left Front
Mounting Bracket
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION. CUTTING IS REQUIRED.
2. NOTE: Determine if the vehicle is equipped with factory mud flaps. Sidebar installation may not be
compatible with factory mud flaps.
3. Start installation under the driver side of the vehicle. Remove the front and middle section of the plastic
splash guard, (Figures 1A, 1B & 2). Place the splash guard on a clean, stable work surface. Use a
hack saw or utility knife to cut out an opening 2” x 3-1/2” on the middle splash guard as pictured. Cut a
1-1/2” x 1-1/2” opening in the front guard as indicated in Figure 2. Reinstall the splash guards using the
factory fasteners. NOTE: Hold Brackets in position on vehicle to determine area necessary to cut from
splash guards.
Driver/Left Sidebar Illustrated
Front
Use on 2011 & 12 vehicles only
INSTALLATION INSTRUCTIONS
2008-12 TOYOTA HIGHLANDER / HIGHLANDER HYBIRD
PART# 202015 / 202015-2
