Aries Automotive 209013-2 - Manual (Page 7)

SIDEBARS
2013-14 NISSAN PATHFINDER
Page 6 of 8 8/19/14 Rev1 (DP)
Rear
Rear
10mm Flat Washer
10mm Lock Washer
10mm Hex Nut

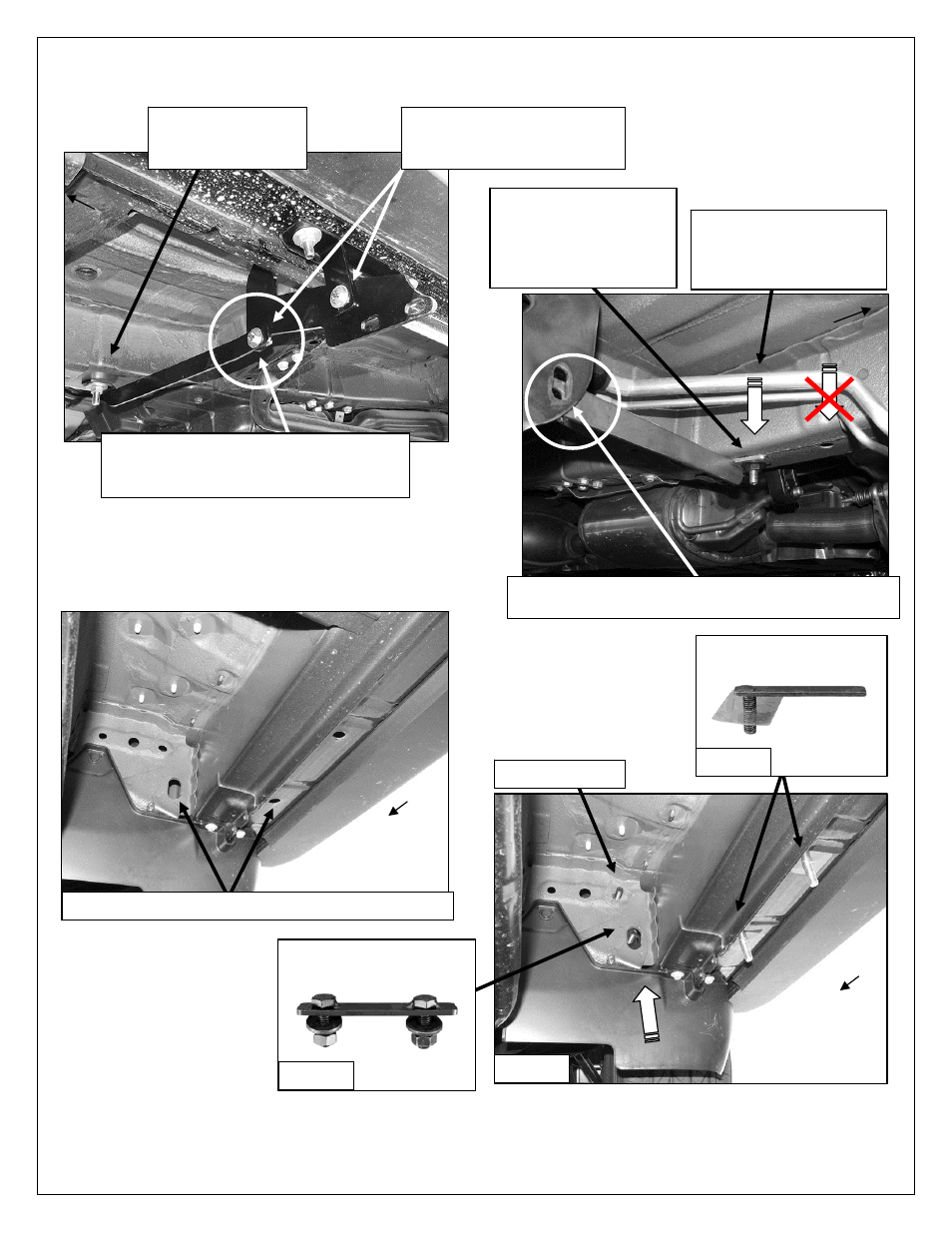

(Fig 13) Driver side rear mounting location pictured
Fig 14A
Fig 14B
Fig 14C
Plastic Retainer
Front
8mm x 30mm Hex Bolt
(2) 8mm Large Flat Washers
8mm Nylon Lock Nut
(Fig 11) Driver side Inner Front Support
Bracket pictured. Bolt Support Bracket
to front of Front Bracket
(Fig 12) Passenger/Right inner location pictured.
Bolt Support Bracket to back side of Front Bracket
Front
10mm Bolt Plate
10mm Plastic Retainer
10mm Flat Washer
10mm Lock Washer
10mm Hex Nut
Passenger/right inner
location pictured. Install
Bolt Plate in 2nd hole
behind tie down loop
