Aries Automotive 206008-2 - Manual (Page 2)

Page - 2 -of 2 12-28-09

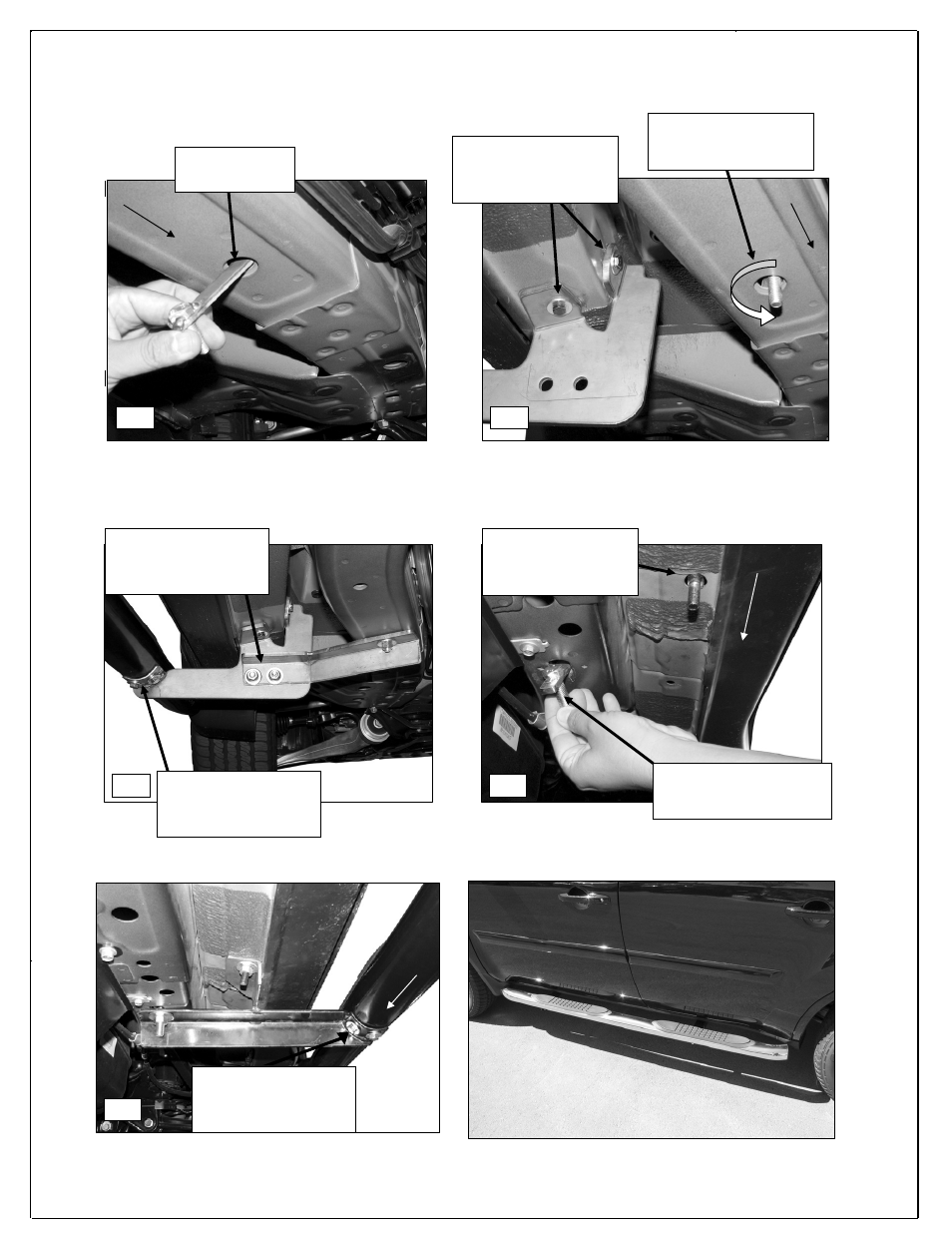

Driver Side Installation Shown
Fig 1 Fig 2
8mm x 25mm Hex Bolts
8mm x Flat Washers
Plate (Rotate Bolt Plates
90-degrees after installing)
Front Front
End Bolt Plate
Fig 3 Fig 4 10mm x 25mm Hex Bolts
10mm x 22mm O.D Flat
Washers
10mm Lock Washers
10mm x 35mm Hex Bolts
10mm x 26mm O.D Flat
Washers
10mm Lock Nuts
12mm Bolt Plate
(Rotate both 90-degrees after
installing)
10mm Centered Round
End Bolt Plate
(Rotate both 90-degrees
after installing)
Rear
Fig 5
10mm x 25mm Hex Bolts
10mm x 22mm O.D Flat
Washers
10mm Lock Washers
Rear
Complete installation
12mm Round
12mm Round End Bolt
