2

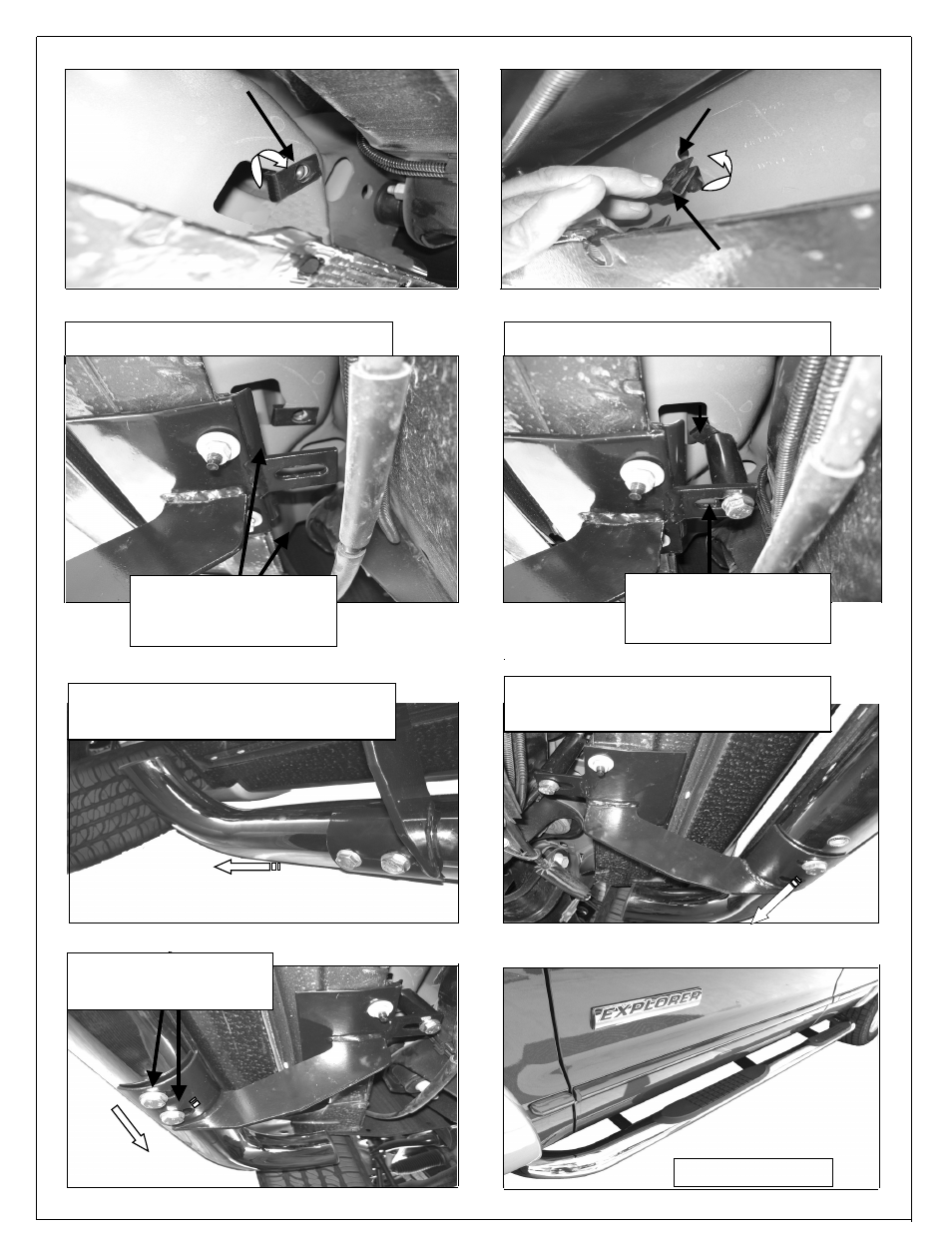

Driver Side Front Mounting Bracket Shown Driver Side Front Mounting Bracket Shown
Page 2 of
Small Tube Spacer
Rear of vehicle
Rear of
vehicle
Front of
vehicle
Figure 3 Figure 4
10mm x 30mm Hex Head Bolts
10mm Flat Washers
10mm Lock Washers
Installation Complete
10mm x 30mm Hex Head Bolts
10mm Flat Washers
10mm Lock Washers
10mm Hex Nuts (10mm Clip Nut)
10mm x 100mm Hex Head Bolt
10mm Lock Washer
10mm Flat Washer
Figure 7
Figure 8
Front Clip Nut
Center Clip Nut
File Clip Nut
Here
06-07 Explorer: Rear Mounting Brackets mount
with cradles facing the front of the vehicle and with
one 10mm x 30mm hex bolt
Figure 6
02-05 Explorer: Rear Mounting Brackets mount
with cradles facing the rear of the vehicle and with
two 10mm x 30mm hex bolts
Figure 5
Figure 1 Figure2
