Aries Automotive 204048 - Manual (Page 3)

3" SIDEBARS ROCKER PANEL MOUNT
2007-14 15-25-3500 SILVERADO/SIERRA REGULAR CAB
EXCLUDES DIESEL MODELS WITH DEF SYSTEM
Page 2 of 2 8/6/13 (DP)
Driver Side Installation Pictured

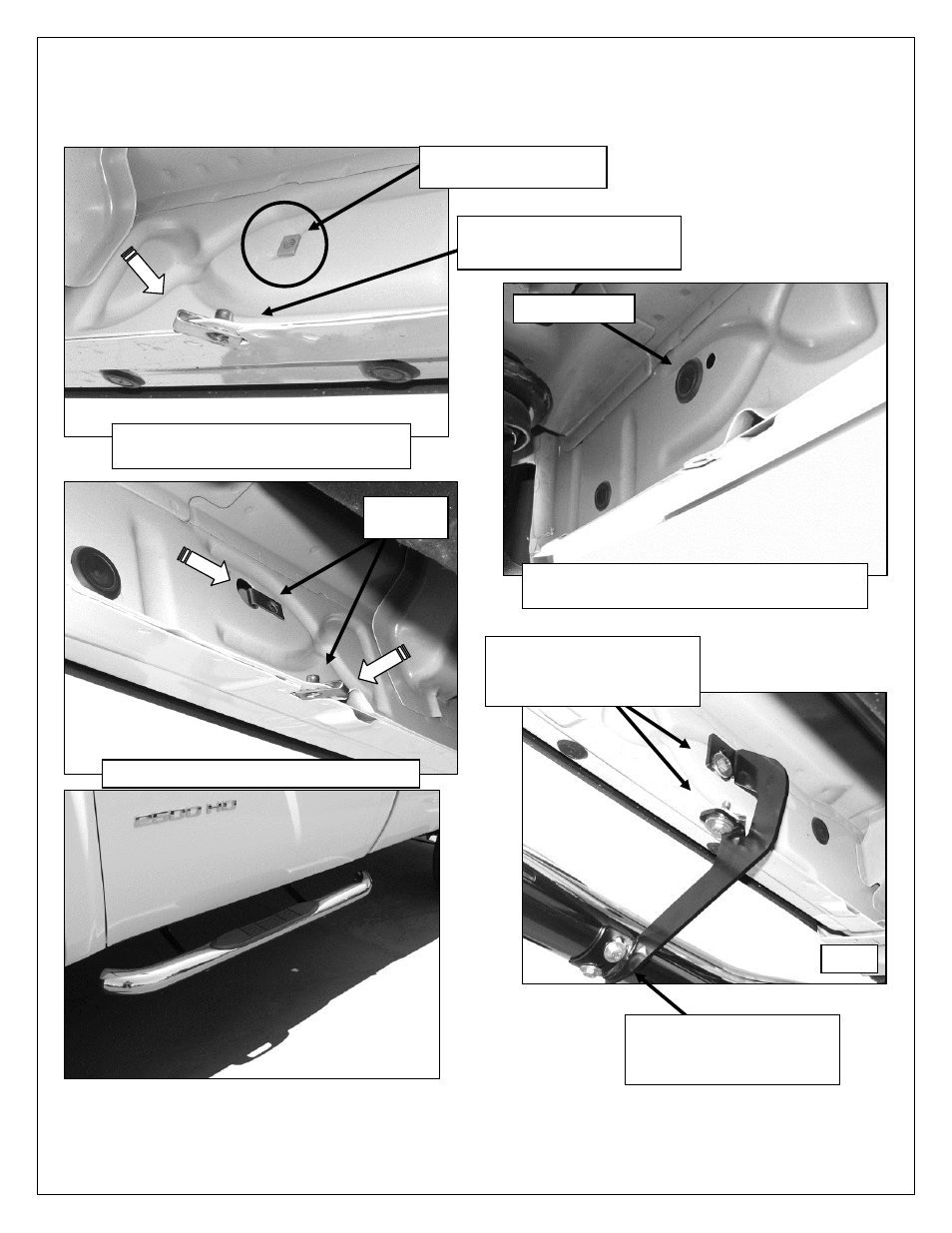

(Fig 1) Example of mounting location,
(top), with factory threaded hole
Factory 8mm threaded
insert in body panel
Use 8mm Clip Nut or factory
threaded insert if equipped
Fig 4
(Fig 3) Insert 8mm Clip Nut as required
(2) 8mm
Clip Nuts
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm Flat Washers
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm Flat Washers
Remove plug
(Fig 2) Example of mounting location without
factory threaded hole in rocker panel
Complete Installation
