SPORT BAR PART #7543
2007- 09 HYUNDAI SANTA FE
INSTALLATION INSTRUCTION
Page 1 of 2
NOTICE:
λ The figures here are for reference only and may have differences with the actual product you received, however
they share the same assembly way.
λ Please read the instruction completely for easy installation, which will also help you to avoid scratches or other
potential damages to your car.
λ Please periodically check and retighten all the hardware and clean for a refresh look.
FUNCTION AND FEATURES:
λ Installation is very easy, it is no need to drill the holes under the car, just install it with the holes which already
under the car.
λ The grille guard joints tightly with car, beautiful shape, good decoration effect.
PART LIST:
No. Name Qty
Remarks
No. Name Qty Remarks
○
1
Main body
1
○
7
Lock washer
2
14mm
○
2
L-Mount bracket
1
○
8
Hex bolt
2
M8×35
○
3
R-Mount bracket
1
○
9
Hex bolt
2
M8×60
○
4
Spacer 2
○
10
Flat washer
6
8mm
○
5
Hex bolt
2
M14×35
○
11
Lock washer
4
8mm
○
6
Flat washer
2
14mm
INSTALLATION STEPS
Step1. Check whether you get all the parts according to the chart (Parts pic).
Step2. Install the○
2
、○
3
as the picture shown using ○
4
、○
8
、○
9
、○
10
、○
11
.
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
10
○
11

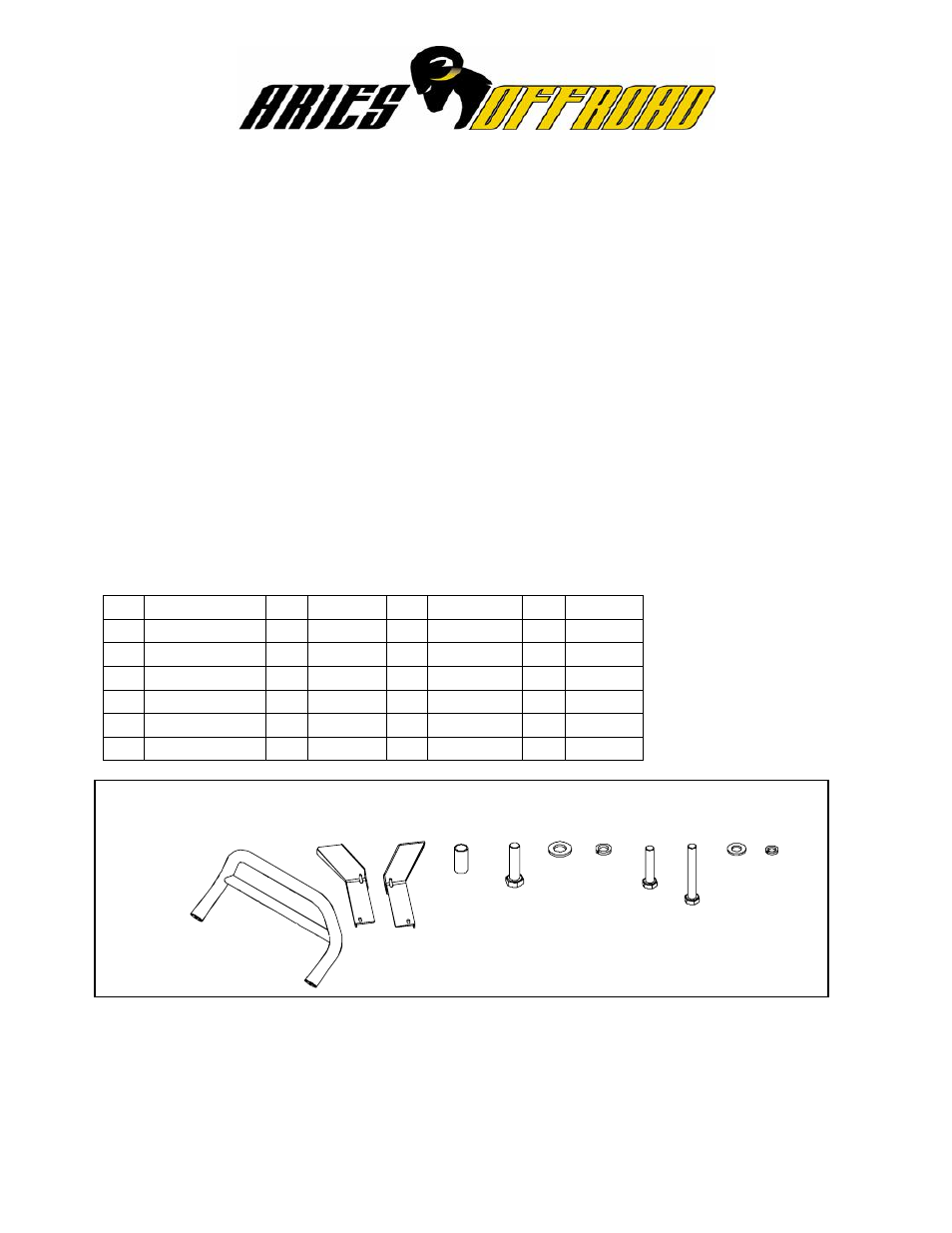

PARTS PIC
