INSTALLATION INSTRUCTIONS
2007-13 FORD EDGE
EXCLUDES SPORT MODEL
PART # 3502
PARTS LIST:
1 Sport Bar
8 12-1.75mm x 35mm Hex Bolts
1 Driver/Left Mounting Bracket
4 12mm Lock Washers
1 Passenger/Right Mounting Bracket
12 12mm x 32mm OD x 3mm Flat Washers
1 Driver/Left Support Bracket
4 12mm Nylon Lock Nuts
1 Passenger/Right Support Bracket
2 10-1.50mm x 30mm Hex Bolts
2 12mm Double Nut Plates
6 10mm x 30mm OD x 2.5mm Flat Washers
2 10-1.50mm x 30mm Bolt Plates
4 10mm Nylon Lock Nuts

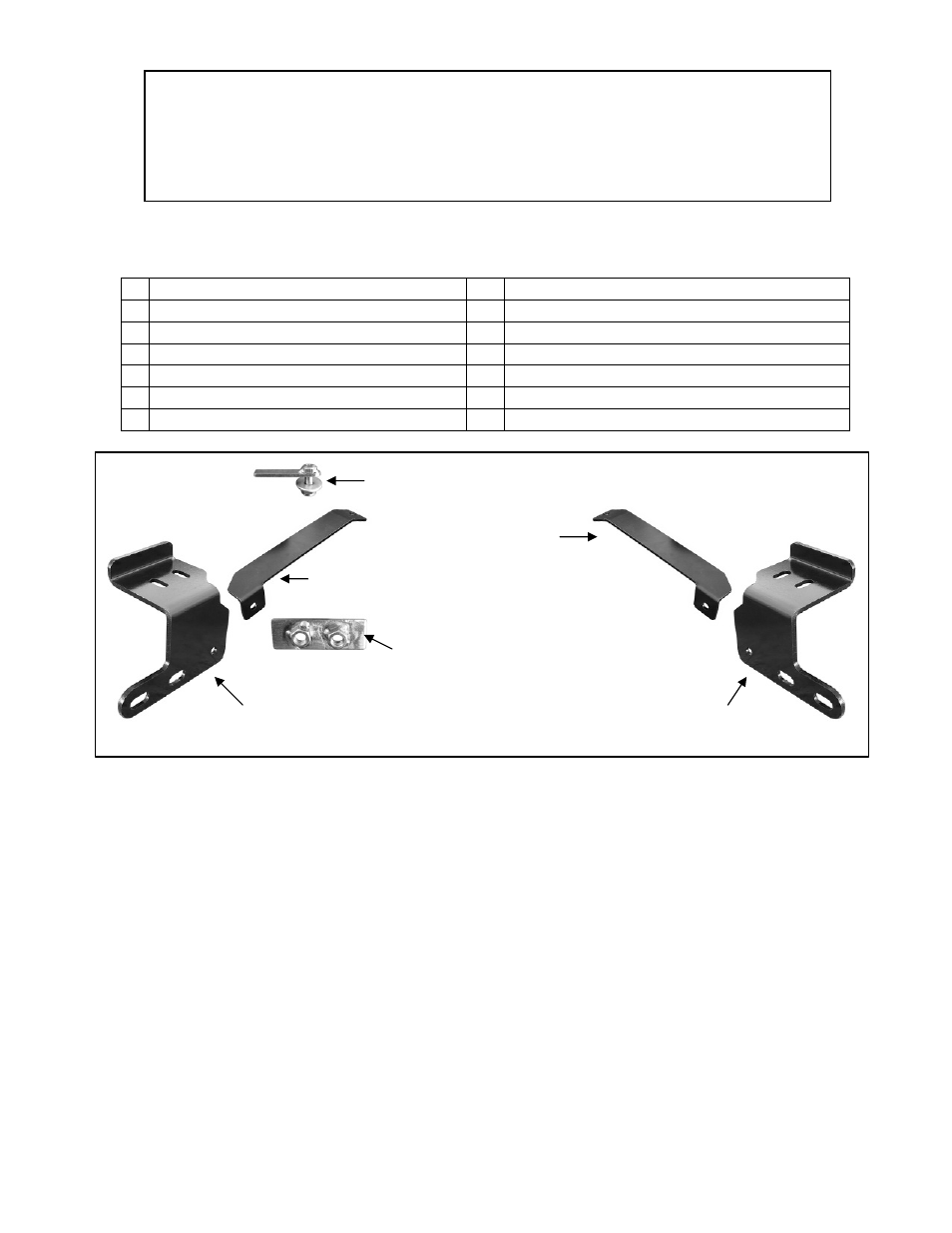

(2) 10mm x 30mm Bolt Plates
Driver/Left Side
Support Bracket
Passenger/Right Side
Support Bracket
(2) 12mm Double Nut
Plates
Driver/Left Side Frame
Mounting Bracket
Passenger/Right Side
Frame Mounting Bracket
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION. CUTTING IS REQUIRED.
2. Start installation under the front of the vehicle. Remove the plastic splash guard attached to the bottom
of the front bumper cover.
3. Insert (1) Double Nut Plate into the opening in the front of the frame on the passenger side, (Figures 1
& 2). Line up the (2) holes in the Double Nut Plate with the factory holes in the frame, (Figure 3).
4. Select the passenger side Frame Mounting Bracket. Hold the Mounting Bracket in position and secure
it by threading (2) 12-1.75mm x 35mm Hex Bolts, (2) 12mm Lock Washers, and (2) 12mm Flat
Washers through the holes in the Bracket, frame and into the Double Nut Plate, (Figure 4). Do not
tighten hardware at this time. Repeat Steps 3 & 4 for driver side Frame Mounting Bracket installation.
5. Select the passenger side Support Bracket and attach it to rear hole on the Mounting Bracket using the
included (1) 10-1.50mm x 30mm Hex Bolt, (2) 10mm Flat Washers and (1) 10mm Nylon Lock Nut,
(Figures 4 & 6). Do not tighten at this time.
6. Insert (1) Bolt Plate into factory hole in the frame, (Figure 5). Line up the remaining hole in the Support
Bracket with the previously installed Bolt Plate. Attach the Support Bracket to the Bolt Plate with the
included (1) 10mm Flat Washer and (1) 10mm Nylon Lock Nut, (Figure 6). Do not tighten hardware at
this time.
