3" BULL BAR
2007-14 CHEVY SILVERADO1500/GMC SIERRA1500
2007-15 TAHOE/SUBURBAN/YUKON/YUKON XL
2007-14 CADILLAC ESCALADE 1500/ESV/EXT
2007-13 CHEVY AVALANCHE
Page 4 of 5
9/25/14 (DP)

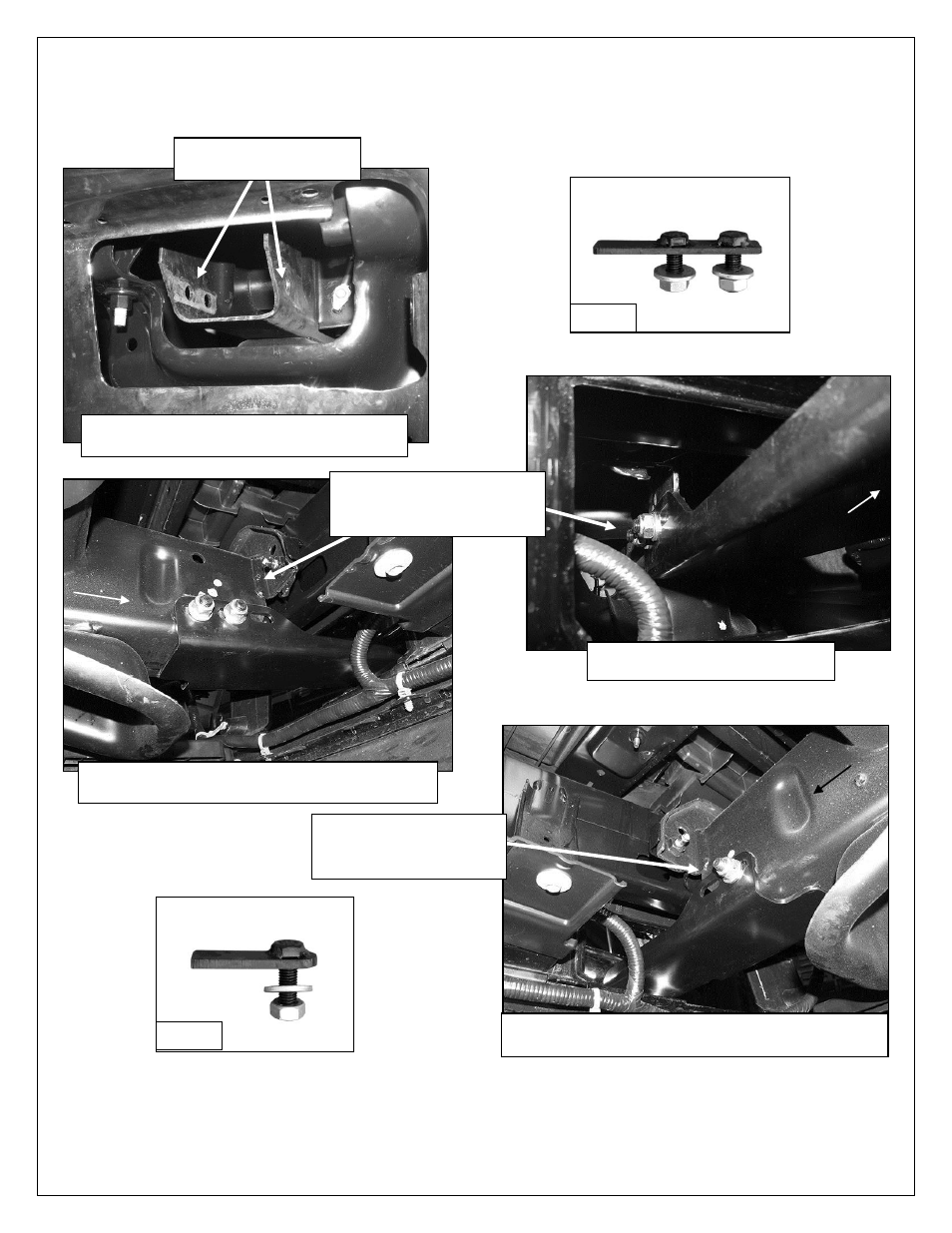

(Fig 5) Driver side pictured without plastic
panel for instruction purposes only
Mounting holes in end
of frame for tow hook
12mm Double Bolt Plate
(2) 12mm Flat Washers
(2) 12mm Nylon Lock Nuts
Front
12mm Single Bolt Plate
12mm Flat Washer
12mm Nylon Lock Nut
(Fig 6C) Note Bracket installed in
“forward”
position to move Bull Bar away from bumper
Front
(Fig 7B) Passenger
Bracket installed in “forward”
position to move Bull Bar away from bumper
(Fig 6B) Inner driver side
Bracket with Double Bolt Plate
Front
Fig 6A
Fig 7A
