Aries Automotive 2045-2 User Manual
Installation instructions

Page 1 of 3
5/30/08 (AM)
PARTS LIST:
1 Grille Guard
2 8-1.50mm x 20mm Hex Head Bolts
1 Driver/Left Mounting Bracket attached
2 10-1.50mm x 25mm Button Head Bolts
1 Driver/Left Top Bracket w/ 8mm nut attached
2 10.4mm ID x 21mm OD x 1.7mm Flat Washers
1 Passenger/Right Mounting Bracket
2 10mm Nylock Nuts
1
Passenger/Right Top Bracket w/ 8mm nut
attached
6 12-1.75mm x 30mm Hex Head Bolts
2 8mm lock washers
6 12mm Nylock Nuts
2 8mm flat washers
12 12.5mm ID x 30.1mm OD x 3.1mm Flat Washers
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION.
2. Starting on the driver side of the vehicle, remove factory bolts and keep on hand (Figure 1 references
the area of bolt location).
3. Partially attach driver side Mounting Bracket to frame rail using factory bolts (Figure 1).
4. Repeat steps 2 & 3 for passenger side Mounting Bracket.
5. Open and lift hood, locate the inside factory hole on the driver side support (Figure 2). These are
located on each side of the grille shell cavity.
6. Insert the top bracket to the factory hole with the nut facing the ground and L portion of bracket towards
the sky. Attached the bracket to vehicle’s factory hole with 8MM bolt, lock washer, and washer (note
bottom side of bracket has nut attached). See photo (Figure 3).
7. Repeat step 6 for passenger side Top Bracket.
8. With help position Grille Guard on the inside of the Mounting Brackets. Use the included (6) 12mm x
30mm Hex Head Bolts, (6) 12mm Nylock Nuts, and (6) 12mm Flat Washers to attach Grille Guard to
Mounting Brackets (Figure 4). Do not tighten at this time.
9. Attach Grille Guard to Top Brackets using the included (2) 10mm x 25mm Button Head Bolts, (2) 10mm
Nylock Nuts, and (2) 10mm Flat Washers (Figure 5).
10. Adjust Grille Guard properly; and then tighten all hardware at this time.
INSTALLATION INSTRUCTIONS
GRILLE GUARD
99-02 TOYOTA TUNDRA
PART #2045/2045-2

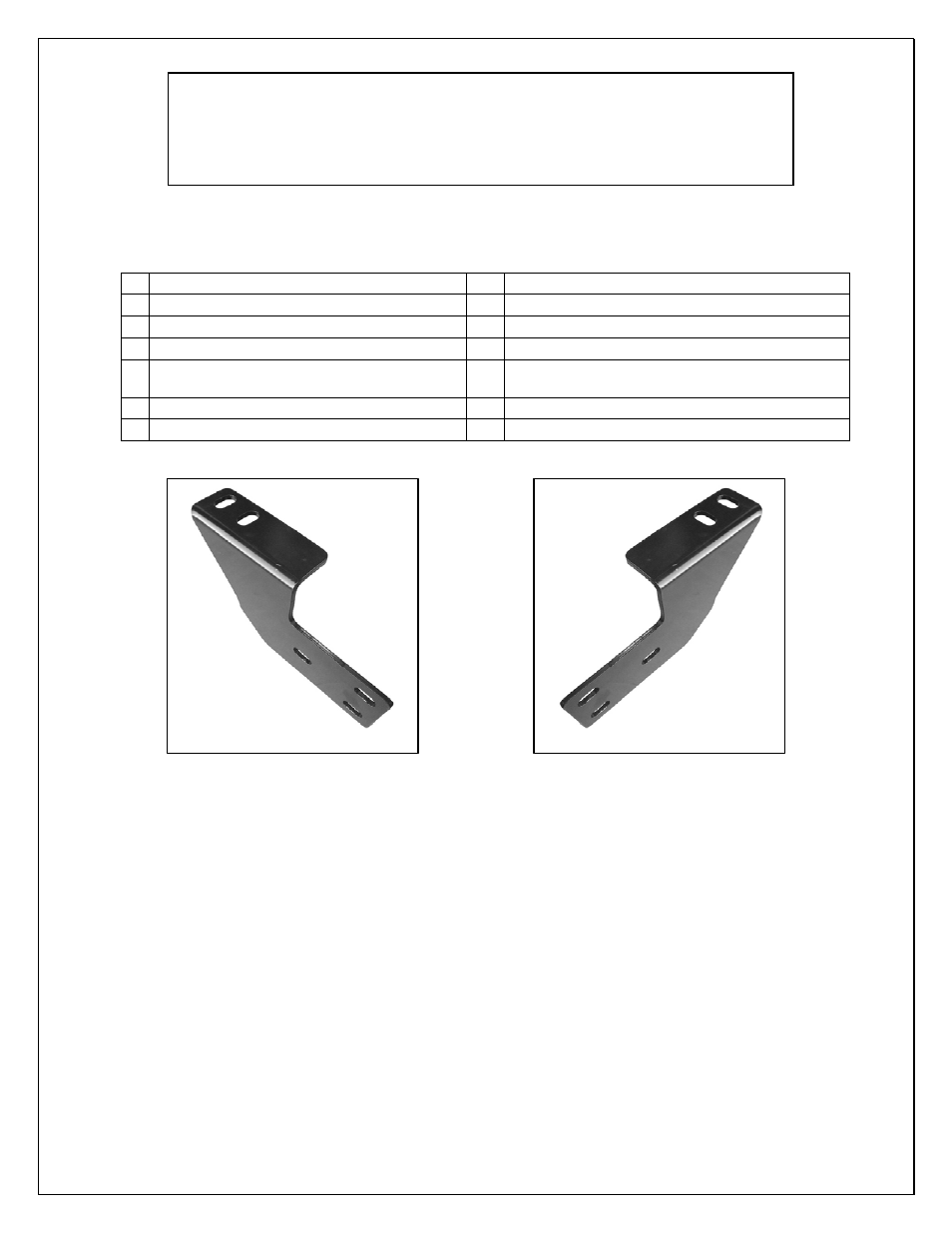

Driver Side
Mounting Bracket
Passenger Side
Mounting Bracket
