GRILLE GUARD
2011-12 TOYOTA HIGHLANDER (EXCLUDES HYBRID)
Page 4 of 6 6-15-12 (DP)

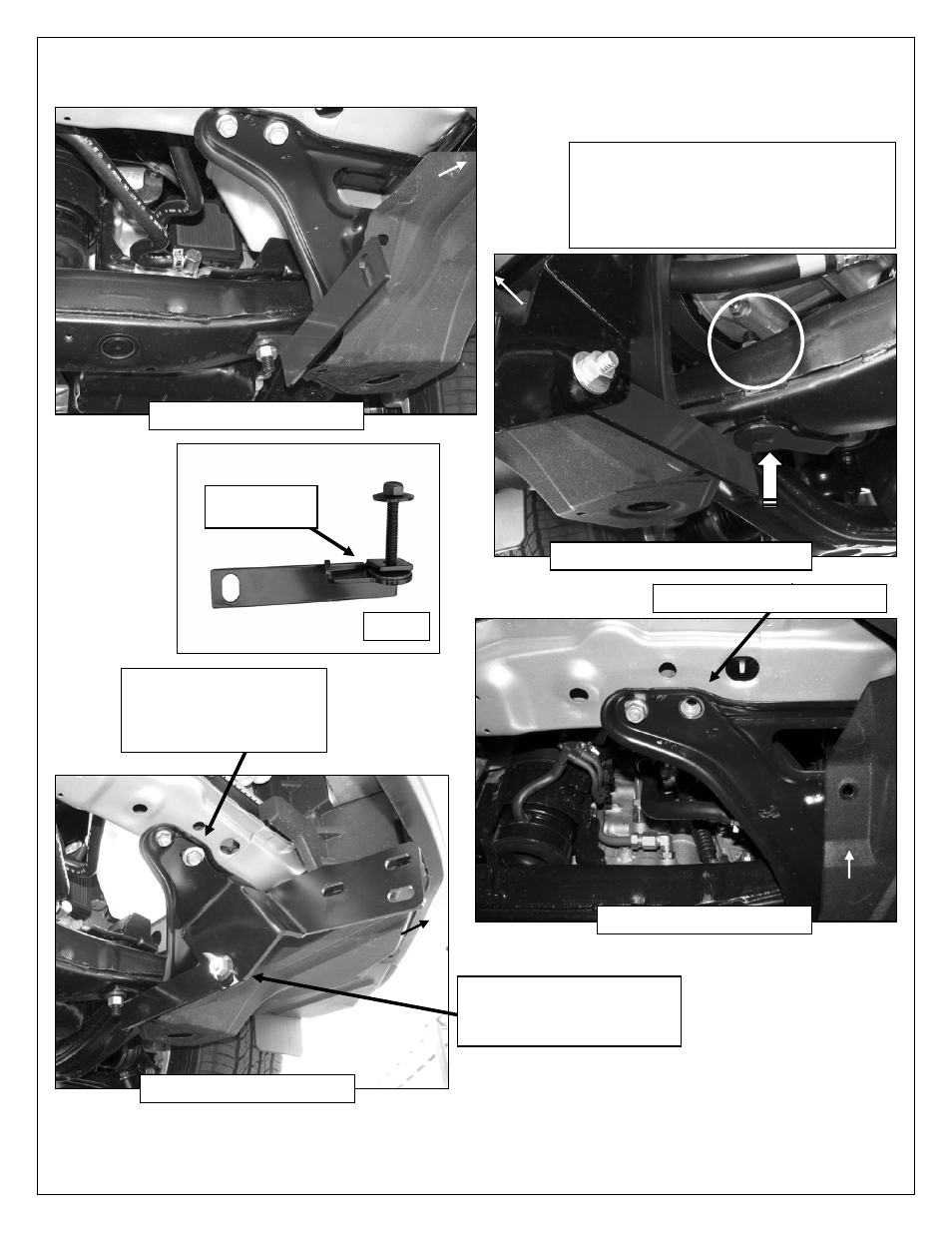

(Fig 8) Driver side pictured
(Fig 7) Driver side pictured
(Fig 6A) Passenger side pictured
Highlander with 4cyl and air conditioning:
Insert Bolt Plate up through passenger
side Support Bracket and crossmember.
Use 12mm Large Flat Washer for more
clearance if required
Fig 6B
10-1.25mm x 30mm FINE
THREAD Hex Bolt
10mm Lock Washer
10mm Large Flat Washer
Remove outer 10mm hex bolt
12mm x 30mm Hex Bolt
(2) 12mm STD Flat Washers
12mm Nylon Lock Nut
12mm Large
Flat Washer
Front
Front
Front
Front
(Fig 5) Driver side pictured
